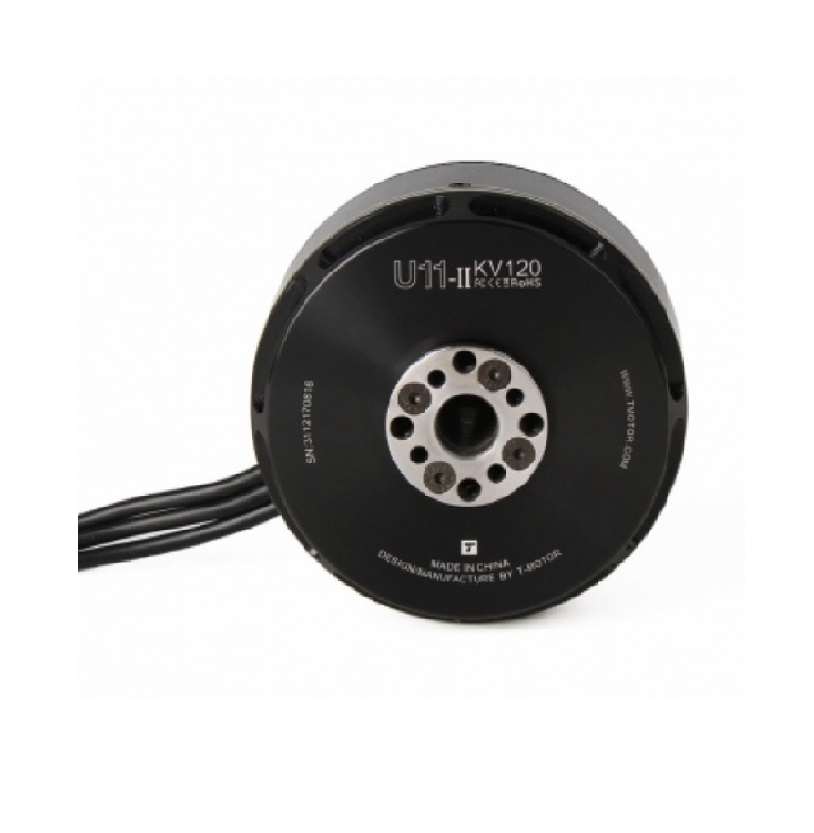

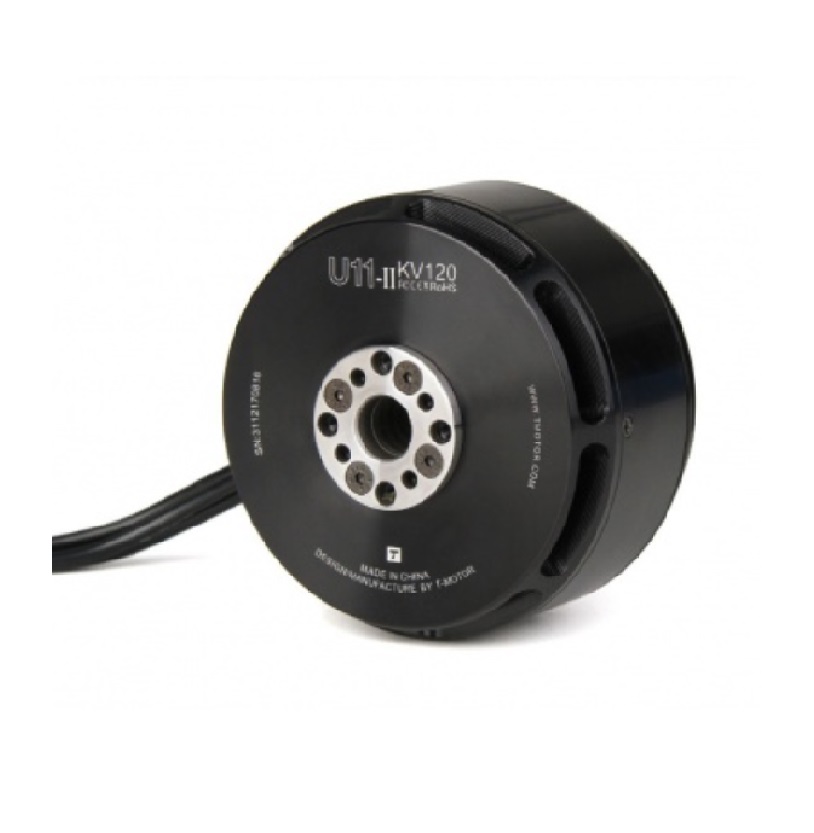

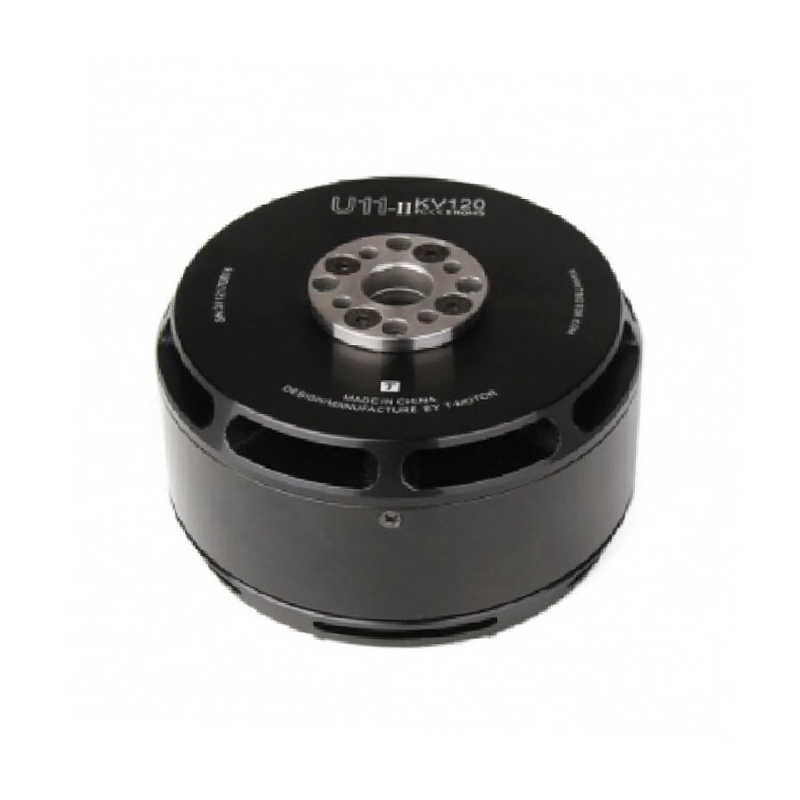

T-Motor U11 II 120KV Brushless Motor - 12N14P, 15mm Shaft
The T-Motor U11 II 120KV is a high-power brushless motor engineered for heavy-lift multirotor platforms, supporting 6S to 12S LiPo battery configurations. Its 12N14P design and 15mm shaft deliver robust torque and efficient power conversion for demanding aerial applications.
Features
- High-torque 120KV rating optimized for 6S-12S LiPo operation.
- 12N14P stator configuration for smooth, powerful rotation.
- Massive 15mm hardened steel shaft for maximum durability.
- Rated for continuous 80A current and up to 4000W peak power.
- Advanced cooling design with IP-rated dust and moisture resistance.
Out of stock
The T-Motor U11 II series represents a significant advancement in heavy-lift propulsion, integrating a 12N14P electromagnetic design to minimize cogging torque and deliver exceptionally smooth power delivery across its operational range. The motor’s large stator and rotor mass are engineered to handle the intense thermal loads of continuous high-amperage draw, with an internal resistance of 57mΩ ensuring efficient energy conversion.
Structural integrity is paramount, with a precision-machined 15mm shaft and high-grade German bearings rated for over 1600 hours of reliable service. The external housing features an optimized aerodynamic fin design that accelerates passive airflow, significantly enhancing thermal dissipation compared to conventional designs. This motor is built for professional-grade UAVs requiring sustained thrust in agriculture, surveying, and industrial payload delivery scenarios.
Additional Information
| Weight | 0.792 kg |
|---|---|
| Dimensions | 8 × 5 × 5 cm |
