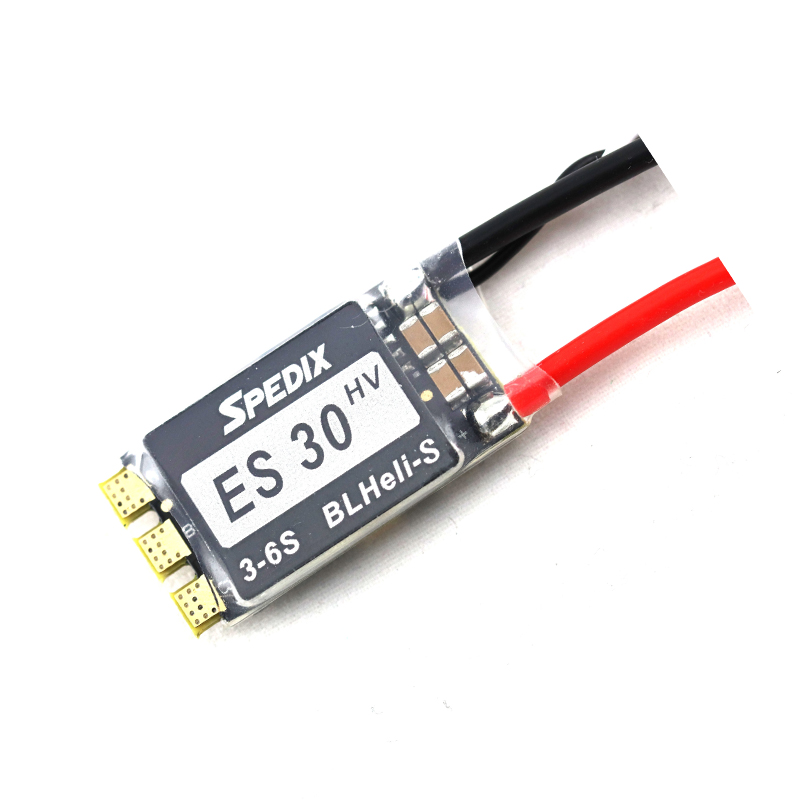

Spedix ES30 HV 3-6S BLHeli_S 30A ESC
This Spedix ES30 HV 30A BLHeli_S ESC is designed for 3S-6S LiPo power, offering reliable performance for 150-300 size FPV racing multirotors. Its compact and lightweight design, coupled with high-performance components, ensures excellent power delivery and system stability.
Features
- Ultra-light and compact design, ideal for 150-300 size multirotors.
- Powered by EFM8BB21 MCU with BLHeli_S firmware for responsive control.
- Supports 3-6S LiPo input with 30A continuous and 40A burst current.
- Features 12 low ESR capacitors for reduced current ripple and high stability.
- Utilizes 3 Oz gold plated PCB and DShot protocol for optimal performance.
Out of stock

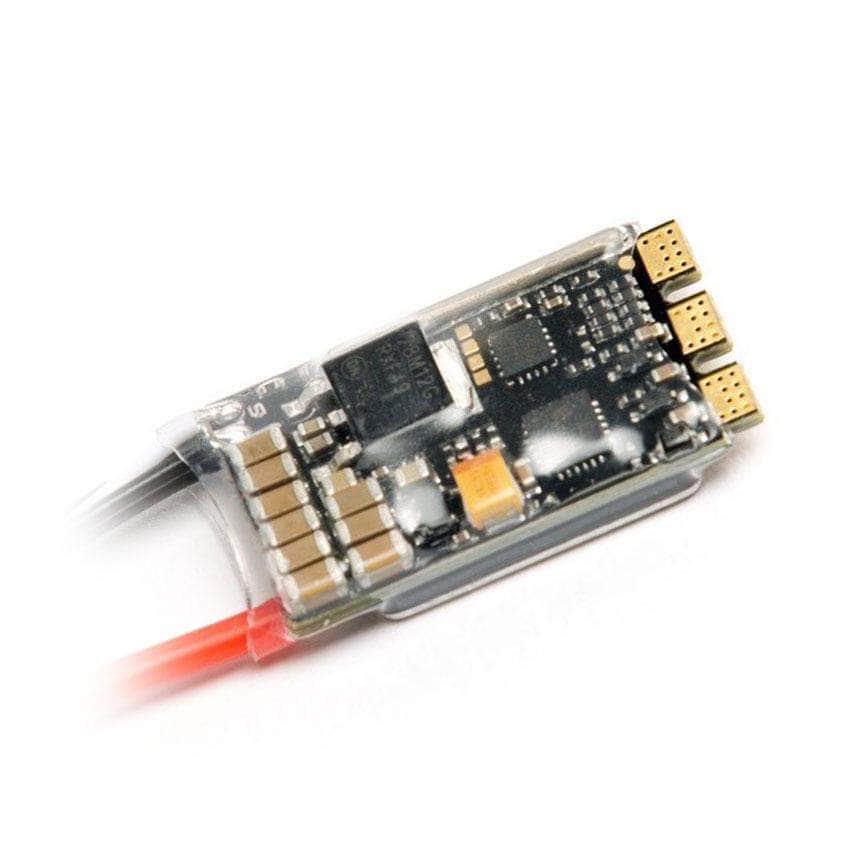

The Spedix ES30-HV is engineered as one of the smallest and lightest 6S 30A speed controllers available, specifically tailored for 150-300 size FPV racing multirotors demanding high power, minimal size, and low weight. This ESC incorporates six standard MOS-FETs with a low resistance of only 1.1mΩ. These standard components offer superior tolerance to current load and surge, alongside better heat dissipation, all within a footprint comparable to products using micro MOS-FETs.
Driving this speed controller is a high-performance EFM8BB21 MCU, pre-flashed with the latest BLHeli_S program. Coupled with a dedicated drive chip, the ES30-HV delivers exceptional response speed and efficiency. Its filter circuit is robust, composed of 12 low ESR capacitors—significantly more than many competing products—which results in reduced current ripples, enhanced system stability, and minimal interference to wireless video transmitters.
Beyond its innovative design, the ES30-HV is built with premium electronic components, including a 3 Oz gold-plated PCB and genuine parts from renowned suppliers such as STMicroelectronics, TDK, and AVX. This combination of meticulous design, authentic components, and precise manufacturing ensures a product of outstanding quality, reliability, and stability for demanding FPV applications.
Additional Information
| Dimensions | 2.9 × 1.48 × 0.5 cm |
|---|
