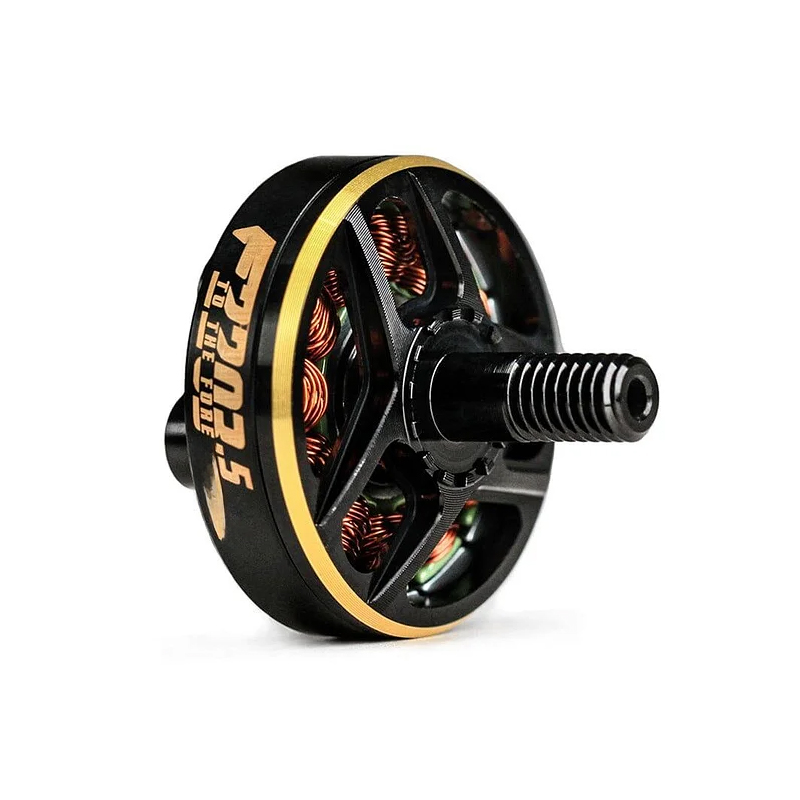

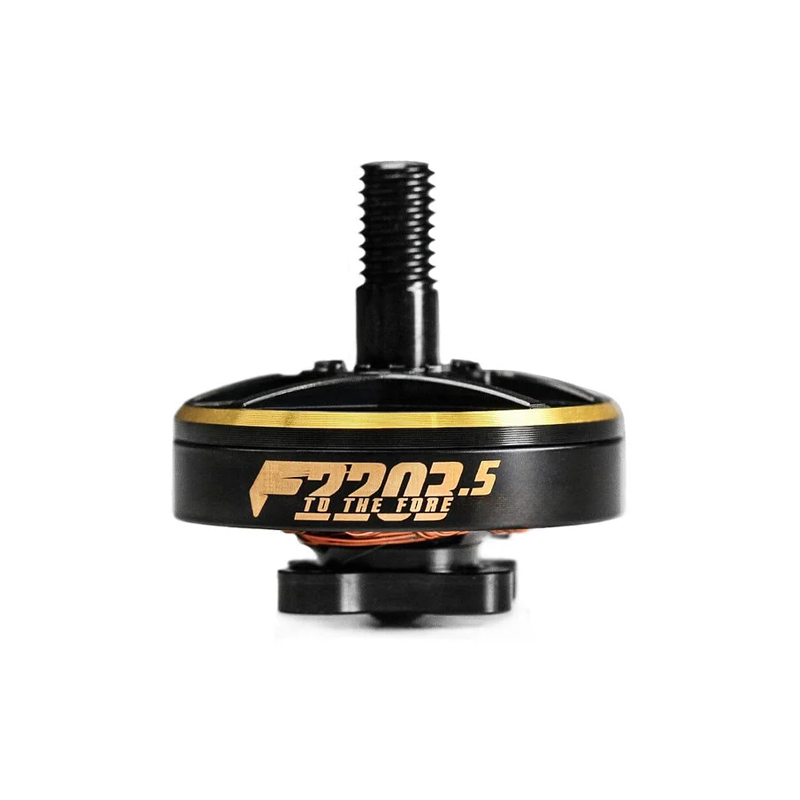

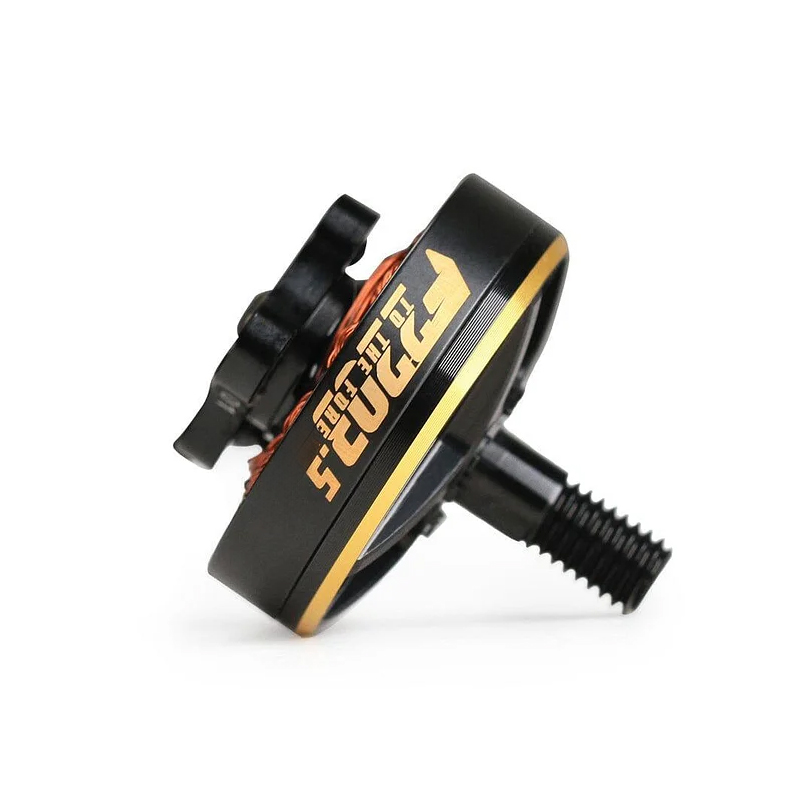

T-Motor F2203.5 FPV Racing Drone Motor 3-4S 3550KV

Name: T-Motor F2203.5 FPV Racing Drone Motor 3-4S 3550KV
Brand: T-Motor
SKU: DRFC-2451
Price: 2749.00 INR
Availability: OutOfStock

₹2,749.00 (Inclusive of all taxes)

Out of Stock

The T-Motor F2203.5 is a 3550KV brushless motor engineered for 3-4S LiPo operation, delivering high thrust-to-weight performance for 3-inch cinewhoop and ultralight freestyle FPV drone builds.

Features

3550KV rating optimized for 3S and 4S LiPo battery configurations.
Lightweight 19.5g design (including wire) for agile flight performance.
High-power output with a maximum rating of 412W for aggressive maneuvers.
3mm hardened steel shaft ensures secure propeller mounting.
12N14P stator configuration provides smooth, efficient torque.

Out of stock

Get Notified When Available

Description

The T-Motor F2203.5 motor is engineered for pilots seeking a balance of power and low weight in compact drone formats. Its 3550KV rating is precisely tuned for 3S and 4S LiPo packs, enabling rapid throttle response and high top-end speeds essential for racing and dynamic freestyle.

Constructed with a durable 12N14P stator and efficient cooling design, the motor maintains stable performance under high thermal loads. The 3mm shaft and robust bell housing ensure reliable operation with aggressive propellers, making it a core component for high-performance 3-inch builds.

Key Features

Optimized KV for 3-4S: The 3550KV rating provides an ideal balance of torque and RPM for 3-inch propellers on 3S and 4S power systems.
High Power Density: Delivers up to 412W of peak power from a compact 2203.5 stator size, maximizing thrust output.
Enhanced Thermal Design: Motor bell and stator are engineered for efficient heat dissipation during sustained high-load operation.
Durable Mechanical Construction: Features a 3mm hardened steel shaft and precision-balanced rotor for smooth, vibration-free running.
Lightweight Integration: At 19.5g including wires, it minimizes overall build weight to enhance flight agility and battery efficiency.

Applications

High-performance 3-inch Cinewhoop drones for agile cinematic filming.
Ultralight 3-inch Toothpick quadcopters focused on freestyle and racing.
Compact FPV racing drones requiring a high thrust-to-weight ratio.
Lightweight micro-long-range builds optimized for 3S or 4S power.

Technical Specifications

Model Number	F2203.5
Motor KV	3550 KV
Compatible Voltage	3-4S LiPo
Stator Size	2203.5 (22x03.5mm)
Shaft Diameter	3 mm
Motor Configuration	12N14P
Lead Wire	24AWG, 130mm
Idle Current (@8V)	1.29 A
Peak Current (60s)	26.8 A
Max Power	412 W
Dimensions (Dia. x H)	Φ26.8 x 26.45 mm
Weight (with cable)	19.5 g

Frequently Asked Questions

What propeller size is recommended for the T-Motor F2203.5 3550KV motor?

This motor is optimized for 3-inch propellers (typically 3018 to 3052 bi-blade or tri-blade) on 3S or 4S LiPo batteries. Using larger props may exceed its current and thermal limits, while smaller props will not utilize its full thrust potential.

Can I run this motor on a 6S LiPo battery?

No, the F2203.5 3550KV is rated for 3S to 4S LiPo operation only. Applying 6S voltage will significantly exceed its design RPM, current, and thermal capacity, leading almost certainly to immediate motor failure.

What is the mounting hole pattern for the F2203.5 motor?

The F2203.5 uses a standard 9x9mm (M2) or 12x12mm (M2) mounting pattern, which is common for 22xx-size motors. Always confirm the specific hole spacing on your frame's motor arms before installation.

Is this motor suitable for long-duration cruising or only for acrobatics?

While designed for high dynamic performance in racing and freestyle, its efficient 12N14P stator configuration also makes it suitable for efficient cruising in lightweight 3-inch builds, provided propellers and throttle management are optimized for endurance.
