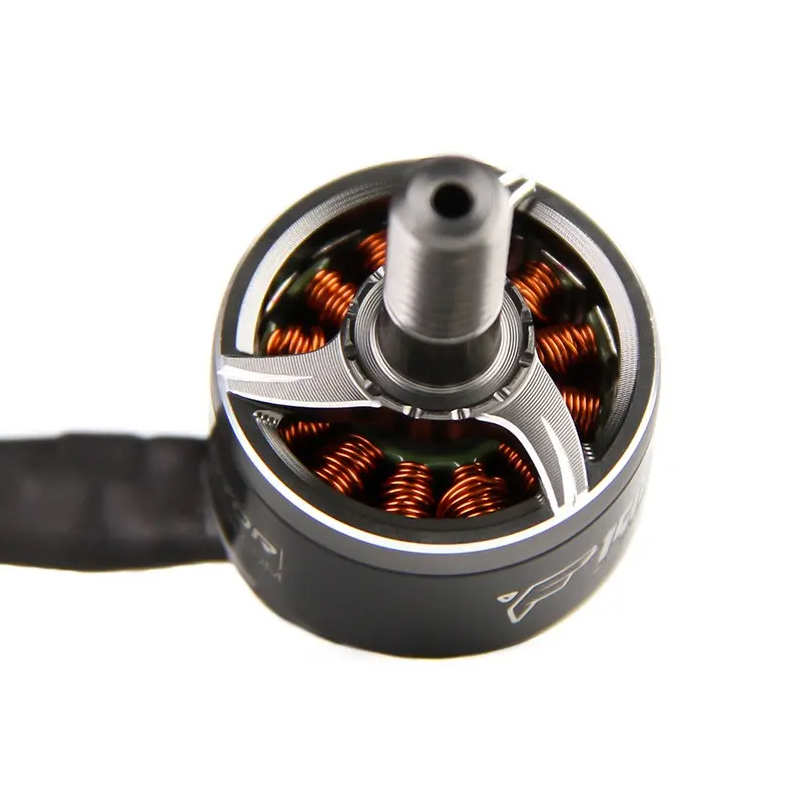

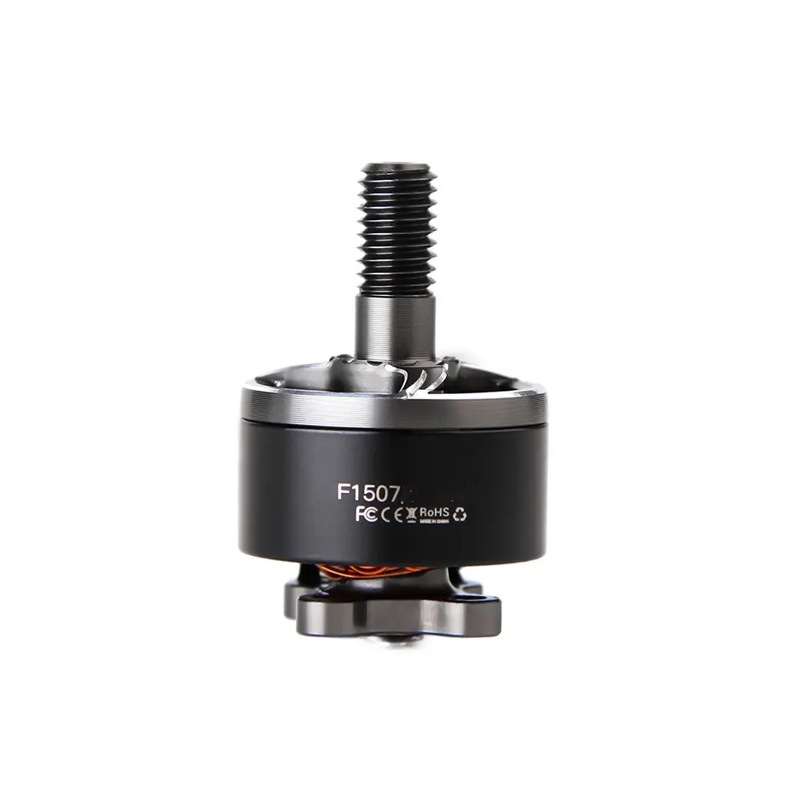

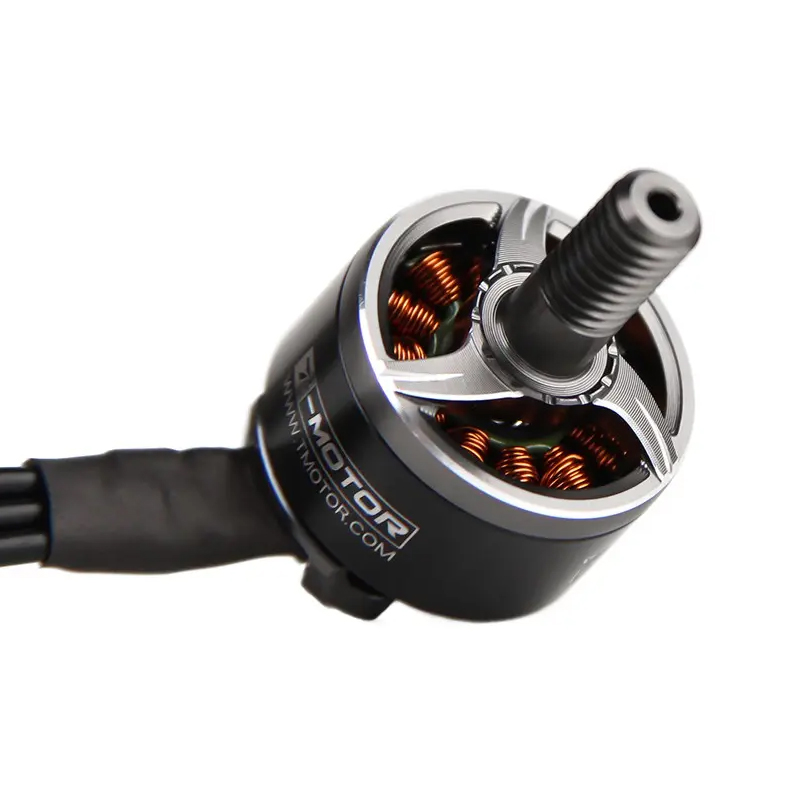

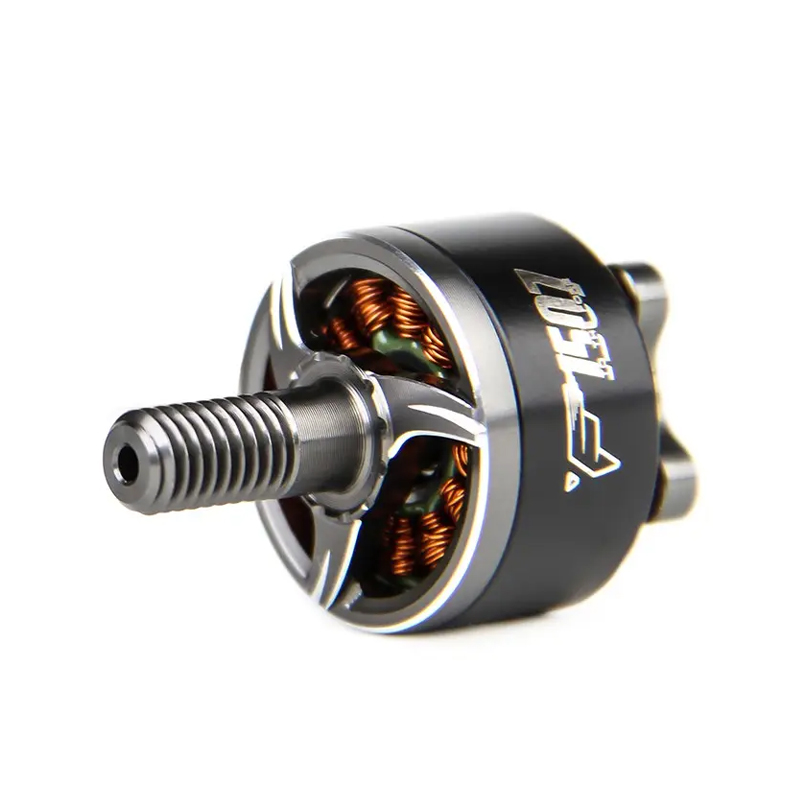

T-Motor F1507 KV3800 Drone Motor
The T-Motor F1507 KV3800 is a high-performance brushless motor engineered for 3-inch CineWhoop and FPV drone builds, offering high torque and smooth control on 3S to 6S LiPo battery systems.
Features
- High 3800KV rating optimized for 3-inch propellers and CineWhoop airframes.
- Lightweight 15.2g construction with a 2mm shaft diameter for efficient power-to-weight ratio.
- Supports a wide 3S to 6S LiPo voltage range with a peak power handling of 372W.
- Delivers torque comparable to larger 20-class motors for precise, cinematic flight control.
- Includes complete mounting hardware: M2.5 screws, M5 lock nut, E-clip, and washer.
Out of stock
The T-Motor F1507 KV3800 is a second-generation brushless motor designed specifically for the demanding requirements of modern 3-inch CineWhoop drones. Its compact 18.9mm stator diameter houses a 12N14P magnetic configuration, engineered to provide high torque and responsive throttle control essential for smooth, stabilized footage in tight flying environments.
With an internal resistance of 81mΩ and a peak current rating of 23A, the motor maintains high electrical efficiency, translating to longer flight times and cooler operating temperatures. The lightweight build, combined with a thrust-to-weight ratio of up to 52.8, ensures agile performance without sacrificing the stability needed for professional-grade FPV cinematography.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3 × 3 × 2 cm |
