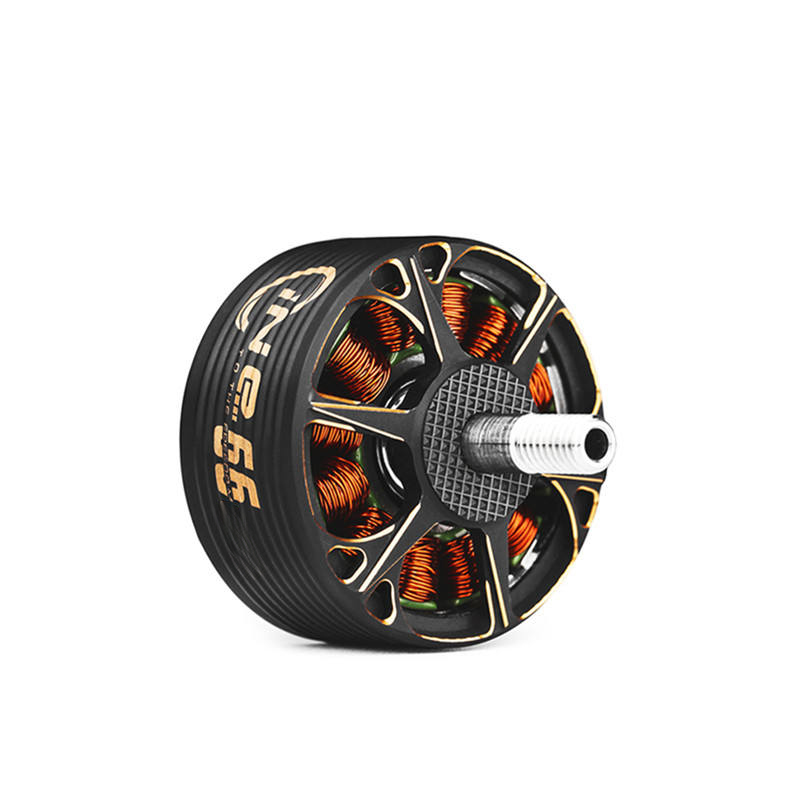

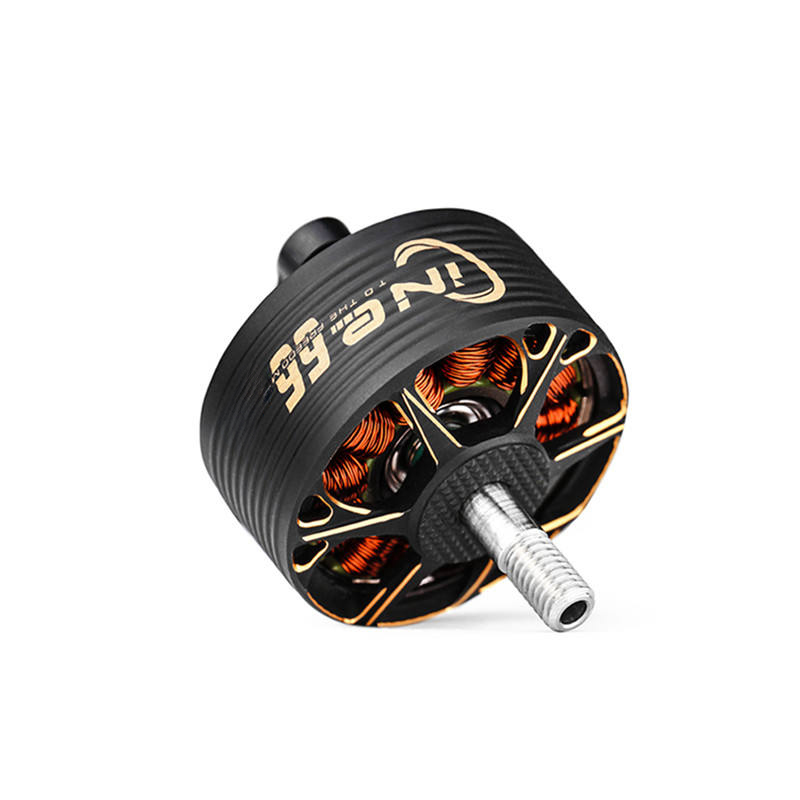

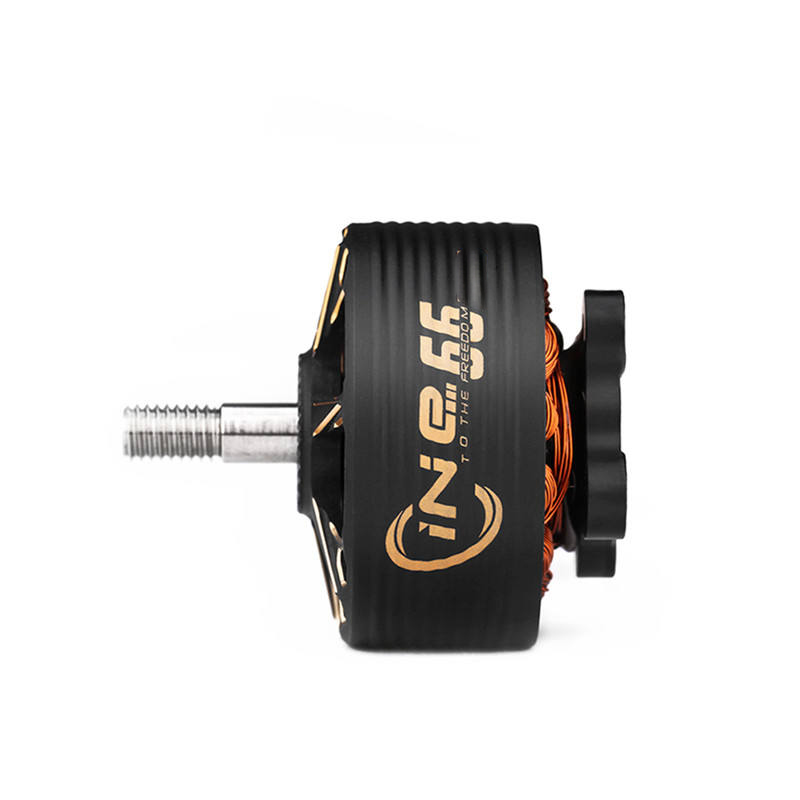

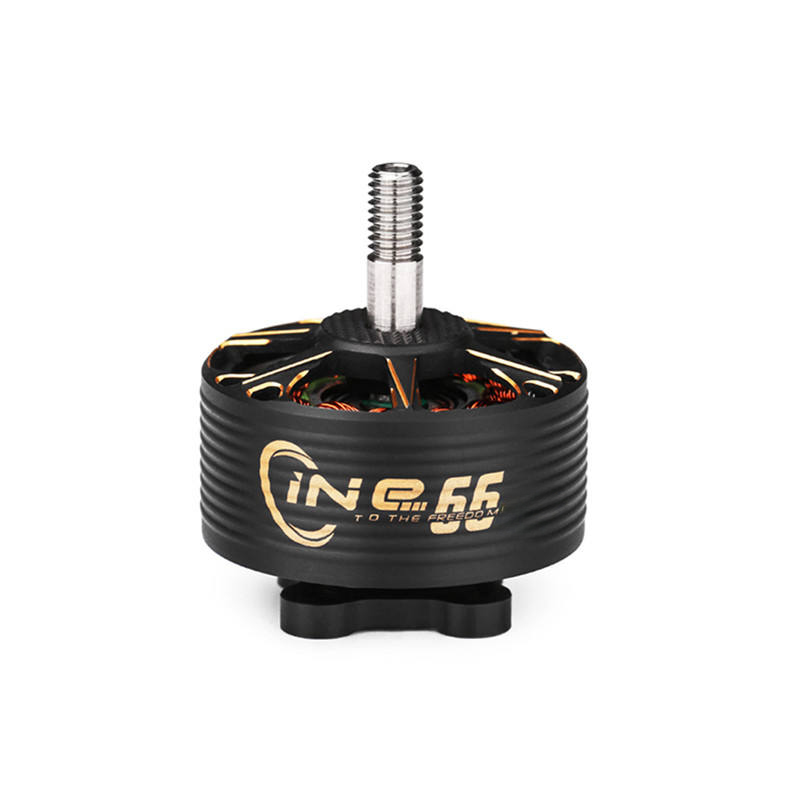

T-Motor CINE66 2812 925KV Brushless Motor
The T-Motor CINE66 2812 is a 925KV brushless motor engineered for high-performance cinematic FPV drones and Cinewhoops, offering stable flight and high thrust for 8-9″ X8 builds on 4-6S LiPo battery systems.
Features
- 925KV rating optimized for 4-6S LiPo power systems and 8-9″ propellers.
- Unibell structural design enhances safety, durability, and heat dissipation.
- Delivers up to 1237W peak power and supports takeoff weights up to 3600g.
- 12N14P magnetic configuration ensures smooth, precise throttle response.
- Lightweight construction at 76.7g including 250mm 18AWG lead wires.
Out of stock
The T-Motor CINE66 2812 motor is engineered for demanding cinematic FPV and Cinewhoop applications where smooth, stable, and powerful flight is paramount. Its unique Unibell structure integrates the bell and shaft into a single, robust component, significantly improving impact resistance and operational safety while contributing to a sleek, aerodynamic profile. This design, combined with a wave-shaped exterior, actively promotes superior heat dissipation, allowing the motor to maintain optimal performance during extended flight sessions.
Internally, a 12N14P configuration provides exceptionally smooth rotation and precise torque control, essential for capturing fluid cinematic footage. With a peak power rating of 1237W and the ability to handle a 3600g takeoff weight, the CINE66 delivers the thrust reserve needed for heavy-lift camera rigs without sacrificing efficiency. Its 4mm shaft diameter and compatibility with 8-9″ propellers make it an ideal propulsion solution for 8-9″ X8 multirotor frames seeking a balance of endurance and dynamic performance.
Additional Information
| Weight | 0.0767 kg |
|---|
