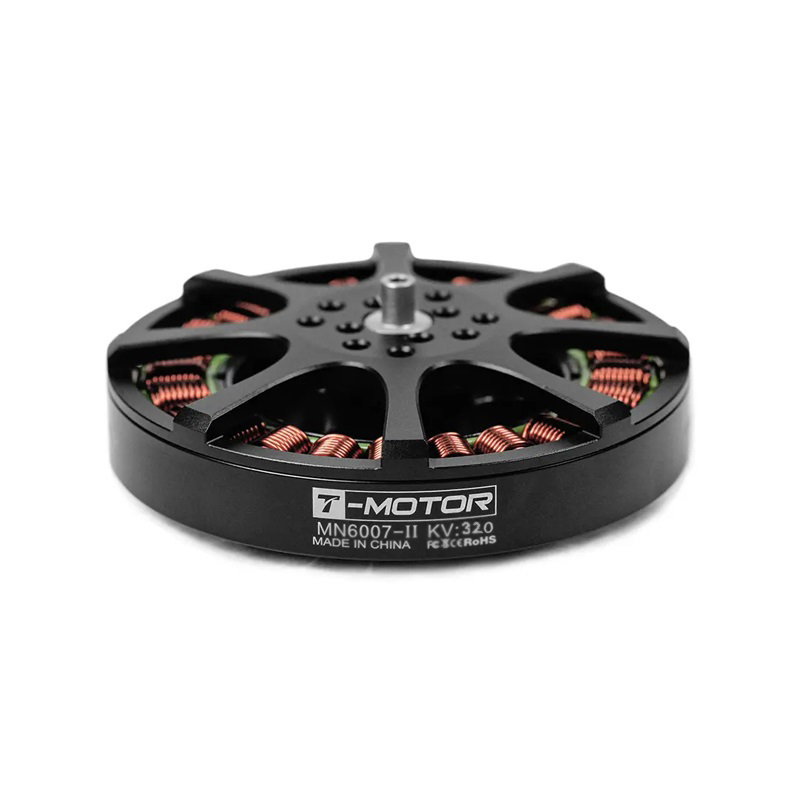

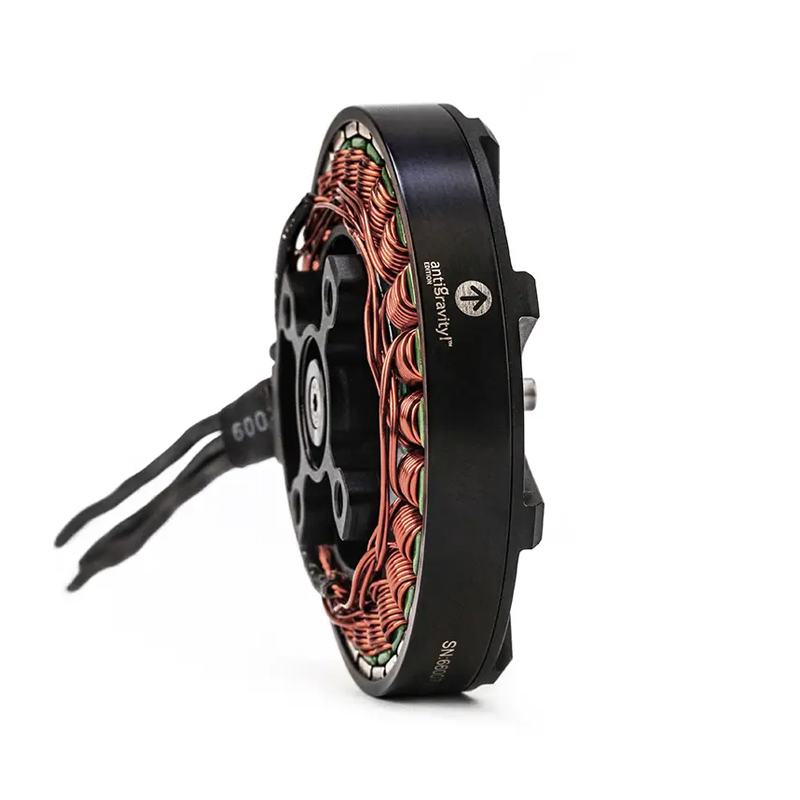

T-Motor Antigravity MN6007II KV320
The T-Motor Antigravity MN6007II KV320 is a high-efficiency, lightweight industrial-grade brushless motor designed for 6S LiPo systems, delivering up to 5.5kg of thrust for extended flight times in heavy-lift and enterprise UAV applications.
Features
- KV320 rating optimized for 6S (22.2V) LiPo operation with low cogging torque.
- High thrust-to-weight ratio, generating up to 5.5kg of maximum thrust.
- Ultra-lightweight construction (180g with cable) using high-strength aluminum.
- 18N22P magnetic configuration and single thick copper wire winding for reduced energy dissipation.
- Integrated cooling design ensures efficient thermal management and stable high-power operation.
Out of stock
The Antigravity MN6007II KV320 motor from T-Motor represents a significant advancement in industrial UAV propulsion. Its ultra-thin, high-strength aluminum housing and optimized internal geometry minimize weight while maximizing structural integrity. The motor’s 18N22P configuration and precision-wound stator deliver smooth, efficient power conversion, essential for the demanding flight profiles of mapping, surveying, and payload-carrying drones.
Engineered for thermal resilience, the motor features a unique ventilation design that actively cools the windings during operation. This allows it to sustain peak power outputs of up to 936W for 180-second intervals without performance degradation. The combination of a 6mm hardened steel shaft, low internal resistance (47.5 mΩ), and a low idle current (1.4A @ 22V) translates directly into extended flight endurance, with potential mission times exceeding 50 minutes when paired with appropriate 12-13 inch propellers and battery systems.
Additional Information
| Weight | 0.28 kg |
|---|---|
| Dimensions | 13 × 11 × 5 cm |
