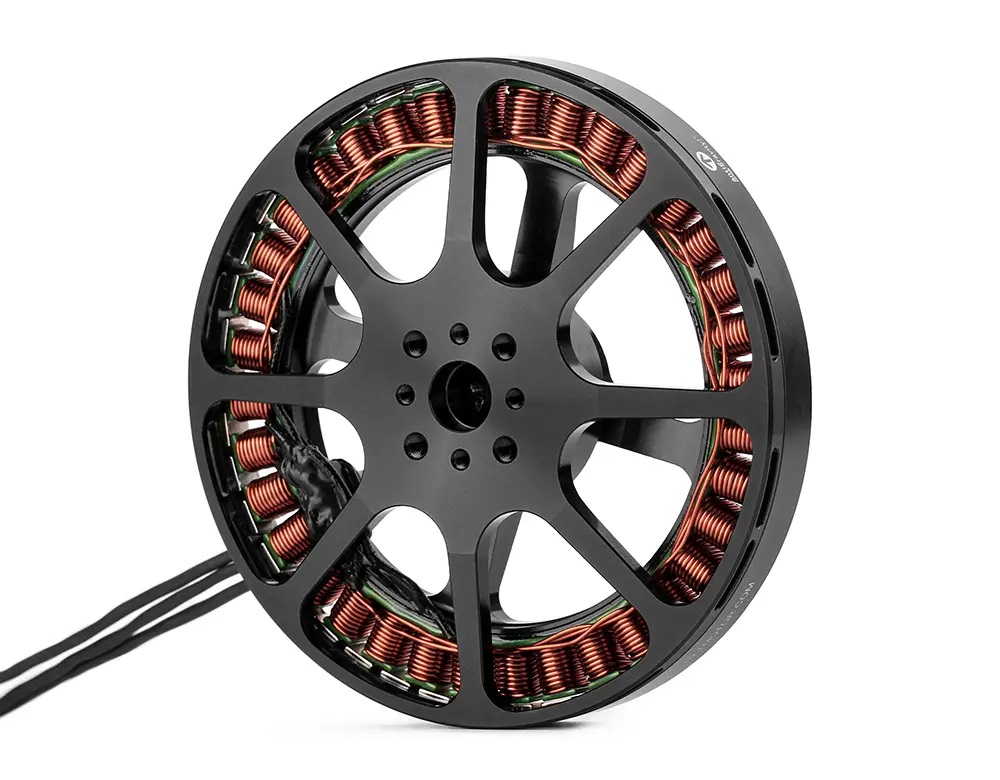

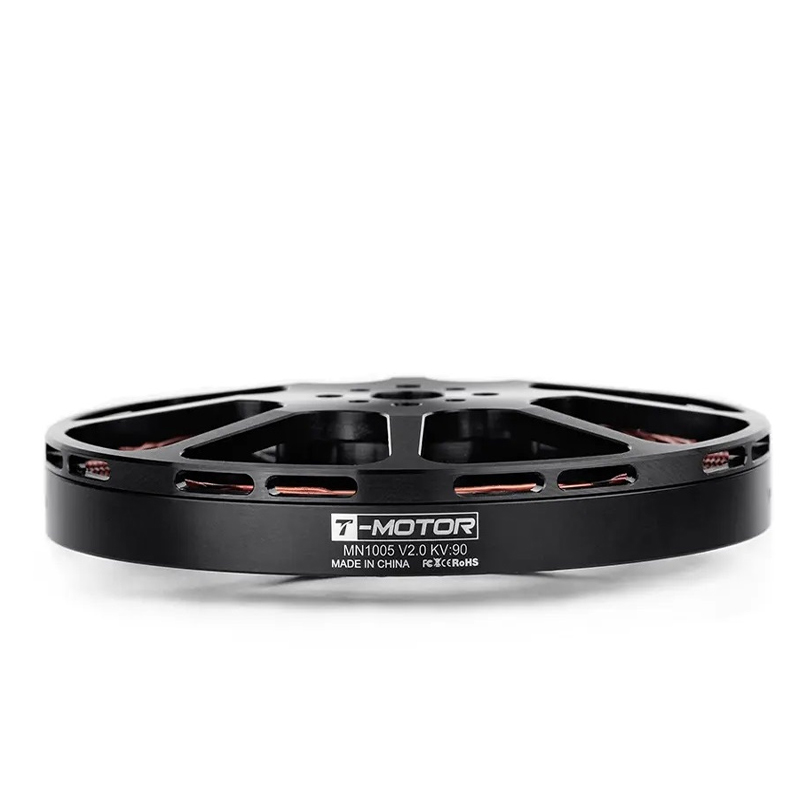

T-Motor Anti Gravity MN1005 V2.0 90KV Motor
The T-Motor Anti Gravity MN1005 V2.0 is a high-torque 90KV brushless motor engineered for heavy-lift and industrial UAV platforms, featuring a durable 7075 aluminum alloy construction and a 125V rated voltage for high-power applications.
Features
- 90KV rating optimized for high torque and stable, low-RPM operation in heavy-lift drones.
- Constructed with imported German 7075 aviation-grade aluminum for exceptional strength-to-weight ratio.
- High efficiency of up to 11.5g/W at a 3kg load, maximizing flight time and power utilization.
- Rated for a peak power of 1500W (180s) and a peak current of 32A, suitable for demanding aerial payloads.
- Engineered for a long service life of 1000 hours under typical operating conditions.
Out of stock
The Anti Gravity MN1005 V2.0 motor from T-Motor represents a significant advancement in propulsion for professional-grade UAVs. Its 90KV design prioritizes torque over high RPM, making it ideal for applications requiring substantial lifting power and precise, stable control, such as agricultural spraying, cinematography with heavy cameras, or industrial inspection.
Built around a core of high-grade 7075 aluminum, the motor achieves a remarkable balance between minimal weight and maximum durability. This construction, combined with advanced electromagnetic design, results in an efficiency peak of 11.5g/W, directly translating to extended operational endurance and reduced thermal stress on the power system during prolonged, high-load flights.
Additional Information
| Weight | 0.405 kg |
|---|---|
| Dimensions | 16 × 14 × 5 cm |
