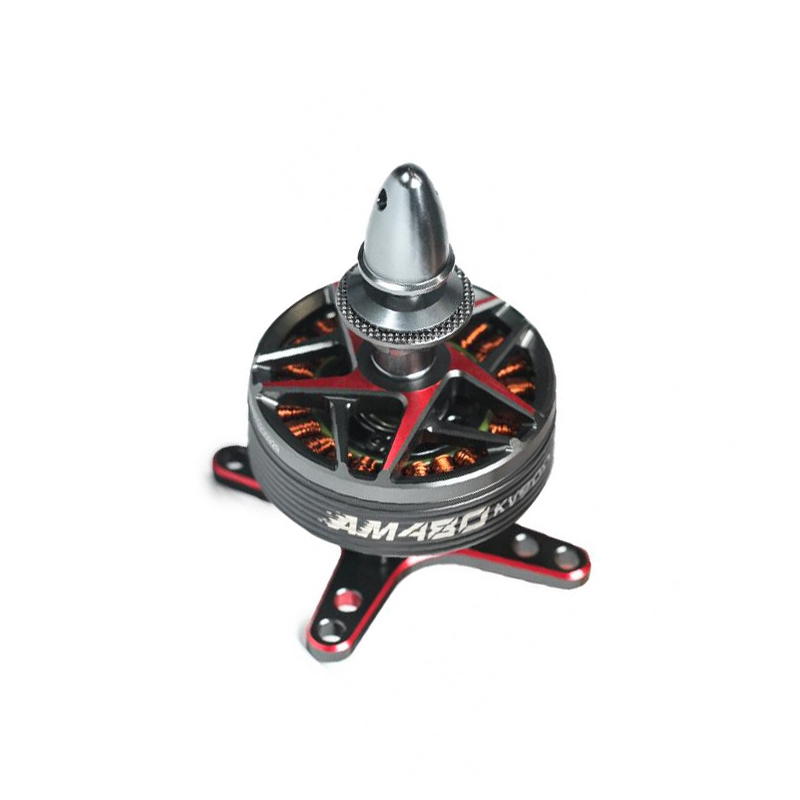

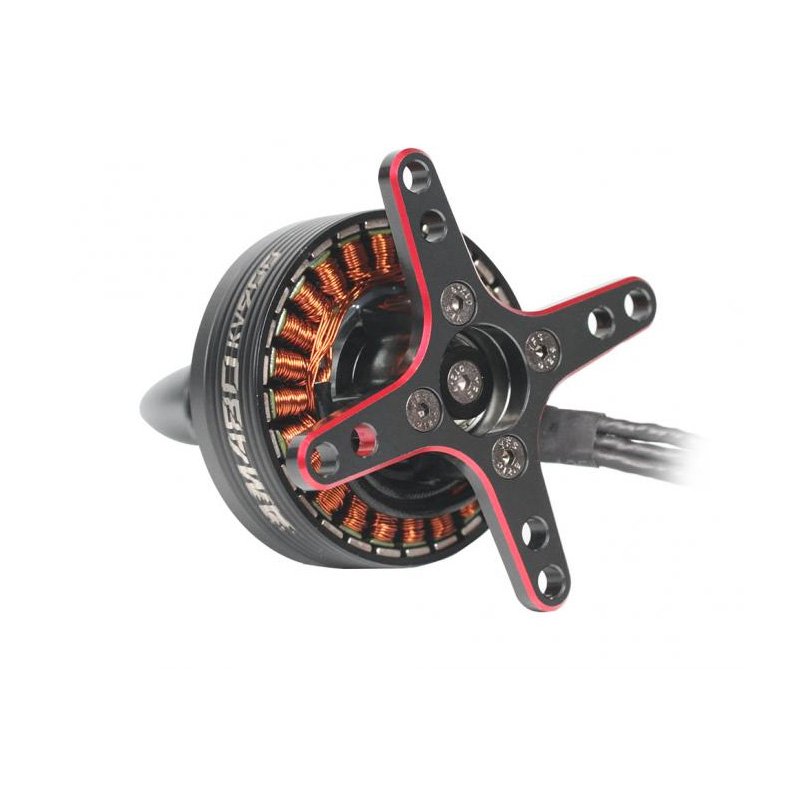

T-Motor AM480 3D 650KV 5-6S Freestyle Flight Plane Motor
The T-Motor AM480 3D is a high-torque 650KV brushless motor engineered for 5-6S LiPo power systems, delivering robust performance for demanding freestyle and aerobatic flight maneuvers with its optimized 3:1 diameter-to-height ratio and advanced cooling design.
Features
- 650KV rating optimized for high-torque 5-6S LiPo operation
- Robust 24N28P stator configuration for smooth, powerful rotation
- Lightweight 145g design featuring a ribbed motor bell and hollow shaft
- High peak current handling of 55A with a maximum power output of 1150W
- Curved magnet design for enhanced magnetic efficiency and operational smoothness
Out of stock
Engineered for precision 3D and aggressive freestyle flight, the T-Motor AM480 3D motor leverages a 24N28P stator configuration and a 650KV winding to deliver exceptional torque and responsive power delivery on 5-6S battery systems. Its structural design prioritizes a high torque-to-weight ratio, achieved through a 3:1 diameter-to-height proportion, which enhances cooling efficiency and mechanical stability during high-G maneuvers.
The motor incorporates advanced engineering features such as a ribbed bell and hollow shaft construction to reduce rotational mass without sacrificing durability. This design, combined with curved N52SH-grade magnets, minimizes flux leakage and ensures consistent, efficient power transfer, enabling pilots to execute complex aerobatics with precise control and extended flight times.
Additional Information
| Weight | 0.145 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
