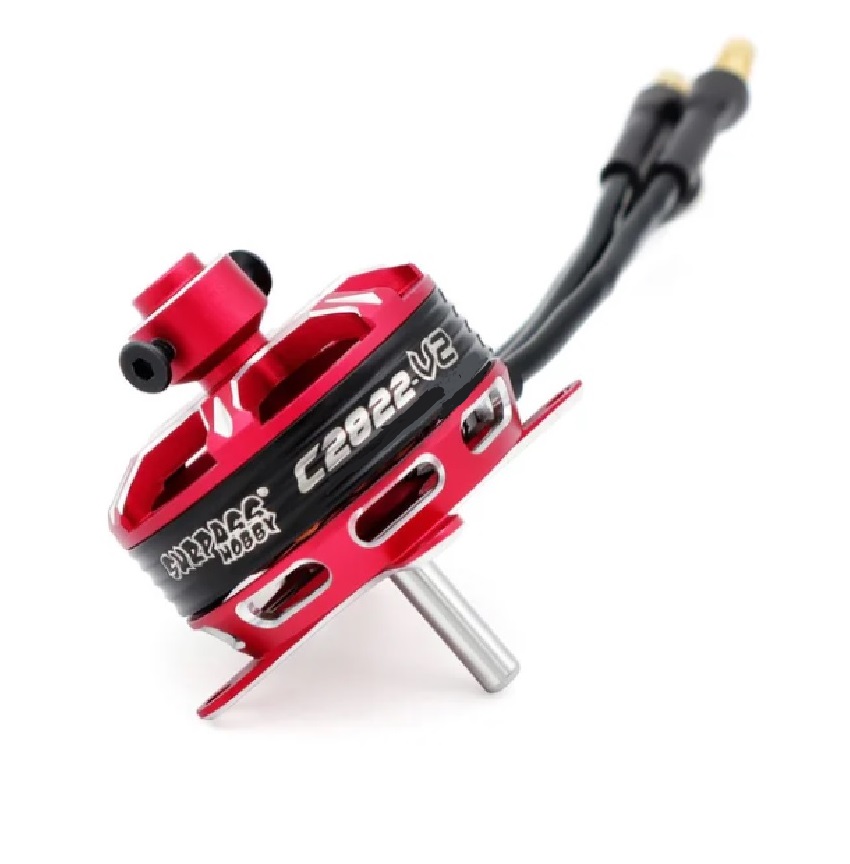

Surpass Hobby C2822 14-Pole Outrunner Brushless Motor for Fixed Wing Aircraft - 1400KV
Surpass Hobby C2822 14-Pole Outrunner Brushless Motor for Fixed Wing Aircraft - 1400KV - Image 2
SKU: DRFC-2848
📋 GST Invoice Available

Surpass Hobby C2822 14-Pole Outrunner Brushless Motor for Fixed Wing Aircraft - 1400KV

₹1,069.00 (Inclusive of all taxes)
Out of Stock

The Surpass Hobby C2822 is a 1400KV, 14-pole outrunner brushless motor engineered for fixed-wing aircraft, featuring a 3.0mm x 12mm shaft and a 3.5mm connector for reliable power delivery and straightforward integration.

Features

  • 1400KV rating optimized for efficient fixed-wing propulsion.
  • 14-pole outrunner design for smooth torque and power output.
  • 3.0mm diameter x 12mm length hardened steel shaft.
  • Pre-installed 3.5mm bullet connector for simplified wiring.
  • Precision-balanced rotor and stator for reduced vibration.

Out of stock

Description

The Surpass Hobby C2822 outrunner brushless motor utilizes a 14-pole stator and rotor configuration to deliver efficient, high-torque performance ideal for fixed-wing RC aircraft. Its design prioritizes smooth operation and thermal management for extended flight sessions.

Constructed with a durable housing and a precision-machined 3.0mm shaft, this motor ensures reliable compatibility with a wide range of propellers and mounting setups. The integrated 3.5mm connector facilitates a clean and secure electrical connection, streamlining the build process.

Key Features

  • Fixed-Wing Optimized Design: Engineered for the thrust and efficiency profile required by fixed-wing aircraft, not multirotors.
  • High-Pole Count: 14-pole configuration provides smoother rotation and improved low-speed torque compared to lower-pole motors.
  • Durable Shaft: Hardened steel shaft (3.0mm x 12mm) resists bending under load.
  • Integrated Connector: Soldered 3.5mm bullet connector reduces assembly time and ensures a robust solder joint.
  • Precision Balanced: Dynamically balanced components minimize vibration for smoother flight and reduced wear.
  • Efficient Thermal Design: Motor windings and housing are designed to dissipate heat effectively during continuous operation.

Applications

  • Powering medium-sized fixed-wing trainer and sport aircraft.
  • Upgrading park flyer and glider propulsion systems.
  • Providing reliable thrust for autonomous fixed-wing UAV platforms.

Technical Specifications

ModelC2822
Motor TypeOutrunner Brushless
KV Rating1400 KV
Pole Count14
Shaft Diameter3.0 mm
Shaft Length12 mm
Connector Type3.5mm Bullet
Primary ApplicationFixed-wing Aircraft

Frequently Asked Questions

What is the primary application for the Surpass Hobby C2822 1400KV motor?

This motor is specifically engineered for fixed-wing RC aircraft, providing the optimal balance of thrust and efficiency for trainers, sport planes, and autonomous UAV platforms. It is not recommended for high-RPM multirotor applications like FPV drones.

What size propeller can I use with this 1400KV motor?

For a 3S LiPo battery, typical prop sizes range from 8x4 to 10x5 inches. For 4S, use slightly smaller props like 7x4 to 9x5 inches. Always consult motor thrust tables and ensure your Electronic Speed Controller (ESC) can handle the expected current draw.

Does the motor come with wires and connectors attached?

Yes, the motor includes pre-soldered wires terminated with a 3.5mm bullet connector. This facilitates direct plug-and-play connection with compatible ESCs, simplifying your aircraft's electrical assembly.

Package Includes

  • 1 x Surpass Hobby C2822 1400KV Brushless Motor

Additional Information

Weight 0.065 kg
Dimensions 9 × 6 × 4 cm
