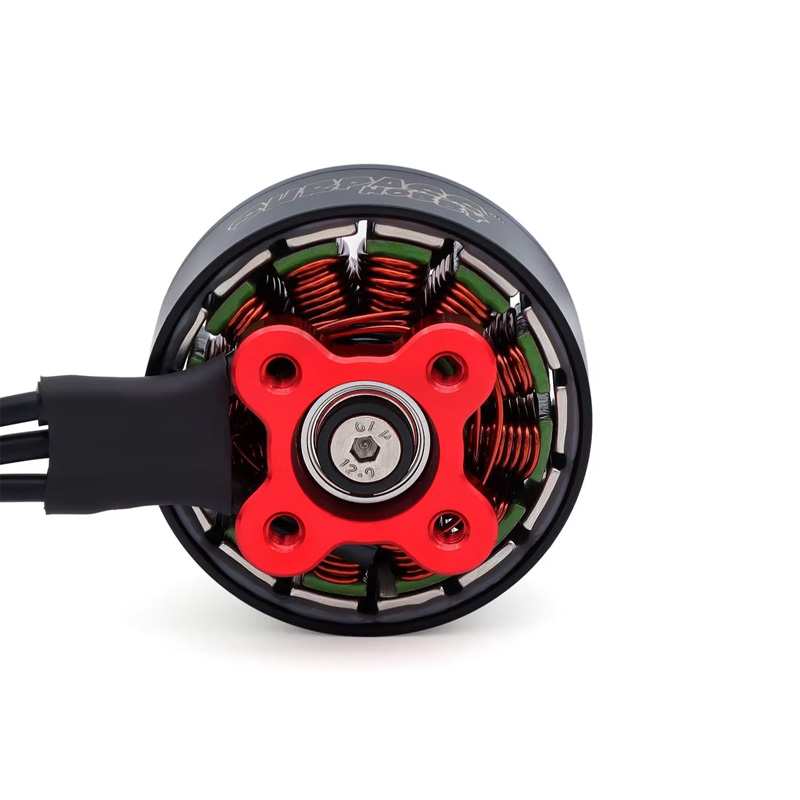

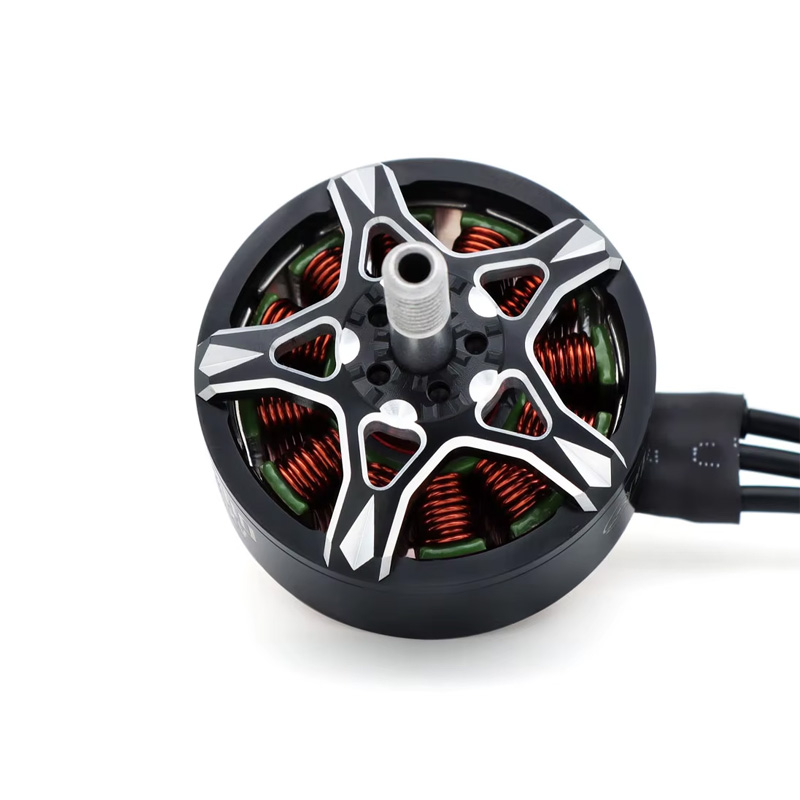

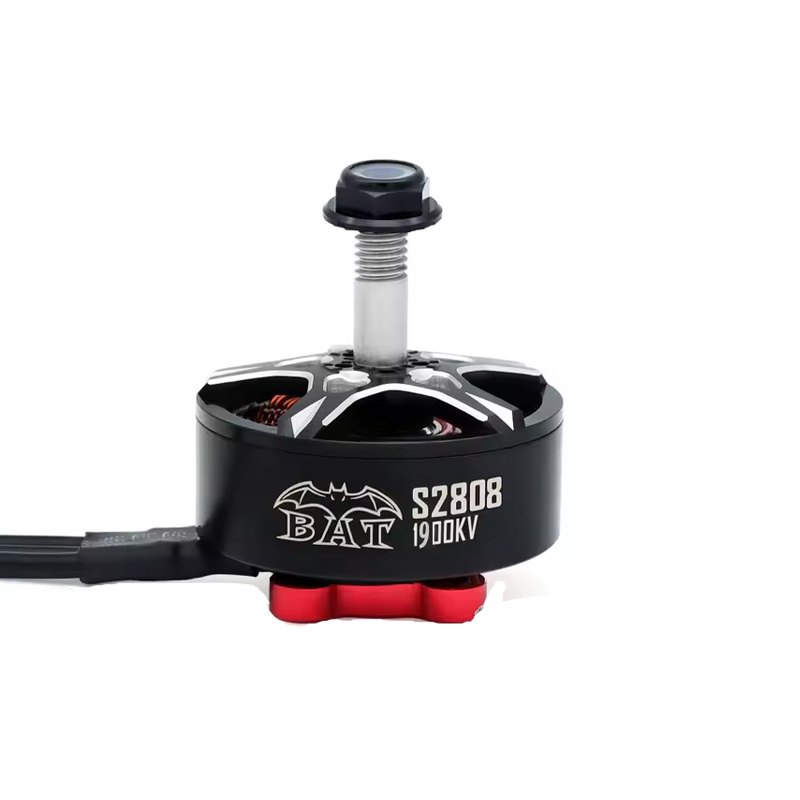

Surpass Hobby Bat S2808 14 Pole FPV Motor 1900 KV

Name: Surpass Hobby Bat S2808 14 Pole FPV Motor 1900 KV
Brand: Surpass Hobby
SKU: DRFC-2704
Price: 1269.00 INR
Availability: OutOfStock

₹1,269.00 (Inclusive of all taxes)

Out of Stock

The Surpass Hobby Bat S2808 is a 1900KV 14-pole brushless motor engineered for 4S-powered FPV freestyle and racing drones, delivering a balance of high RPM and torque for responsive flight performance.

Features

1900KV rating optimized for 4S LiPo battery systems.
14-pole stator design for smooth, efficient power delivery and reduced cogging.
M5 threaded output shaft for secure propeller mounting.
18 AWG high-temperature silicone wire ensures reliable, high-current connections.
Metal construction provides durability and effective heat dissipation.

Out of stock

Get Notified When Available

Description

The Bat S2808 motor from Surpass Hobby utilizes a 14-pole stator configuration to enhance operational smoothness and efficiency. This design minimizes magnetic cogging, resulting in precise throttle control and stable flight characteristics essential for aggressive FPV maneuvers.

Built with a robust metal housing, the motor is engineered for durability and effective thermal management under continuous high-load conditions. Its 1900KV rating is specifically tuned for 4S voltage, offering a potent mix of rotational speed and thrust generation suitable for mid-to-high-performance freestyle and racing quadcopters.

Key Features

High-Performance Stator: 14-pole design delivers smooth power transition and high efficiency.
Optimized KV Rating: 1900KV provides an ideal thrust-to-speed ratio for 4S FPV drone applications.
Robust Mechanical Design: Metal construction and M5 shaft ensure longevity and resistance to crash impacts.
Premium Wiring: 18 AWG high-temp silicone leads support high current draw without failure.
Thermal Management: Metal body acts as a heatsink to dissipate heat during sustained operation.

Applications

5-inch and 6-inch FPV racing drones requiring high top-end speed on 4S power.
Freestyle quadcopters where a balance of punch and efficiency is needed for complex tricks.
Heavy-lift or payload-oriented multirotor builds utilizing 4S battery systems.
DIY drone projects requiring a reliable, high-torque 2808-size motor.

Technical Specifications

Model	Bat S2808
KV Rating	1900 KV
Pole Count	14
Rated Voltage	4S LiPo
Shaft Diameter	M5
Max Thrust	2071 g
Wire Gauge	18 AWG
Motor Type	Outrunner Brushless

Frequently Asked Questions

What is the recommended battery voltage for the Surpass Hobby Bat S2808 1900KV motor?

This motor is rated for 4S LiPo battery systems (nominally 14.8V). Operating within this voltage range ensures optimal performance and prevents potential damage from over-volting. Always verify your ESC is compatible with 4S input.

What size propeller is compatible with this M5 shaft motor?

The motor features an M5 threaded shaft. You will need propellers with a corresponding M5 threaded hub or use standard propellers with an M5 propeller nut. Common sizes for this KV and stator size range from 6x3 to 7x4 inches, depending on your desired flight characteristics.

Is this motor suitable for long-range or cinematic drone builds?

While capable, the 1900KV rating is more oriented towards dynamic flight performance. For long-range efficiency, a lower KV motor (e.g., 1200-1600KV) on a higher cell count (6S) is typically preferred. This motor excels in FPV racing and freestyle applications where rapid throttle response is critical.
