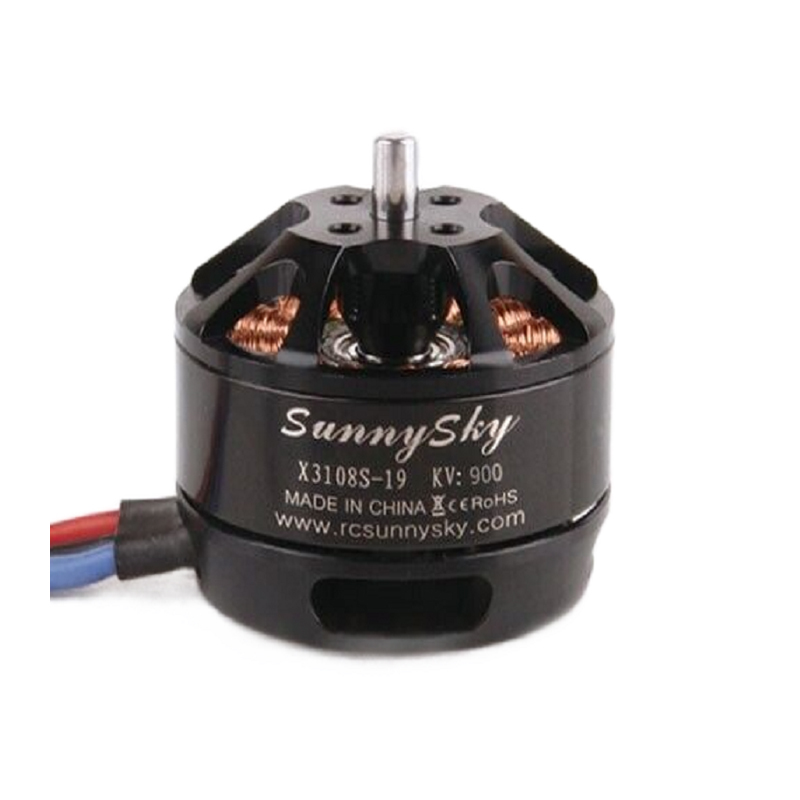

SunnySky X3108S KV900 Brushless Motors
The SunnySky X3108S KV900 is a high-performance brushless motor engineered for industrial and enterprise UAV applications, featuring a 31mm stator diameter and 8mm thickness for robust power delivery and extended flight times.
Features
- 31mm stator diameter (X3108S) with a 900KV rating for high-torque, low-RPM operation.
- Robust 12N14P stator configuration ensures smooth, cogging-free rotation and precise control.
- Rated for continuous 25A current (30 seconds) with a peak power handling of 370W.

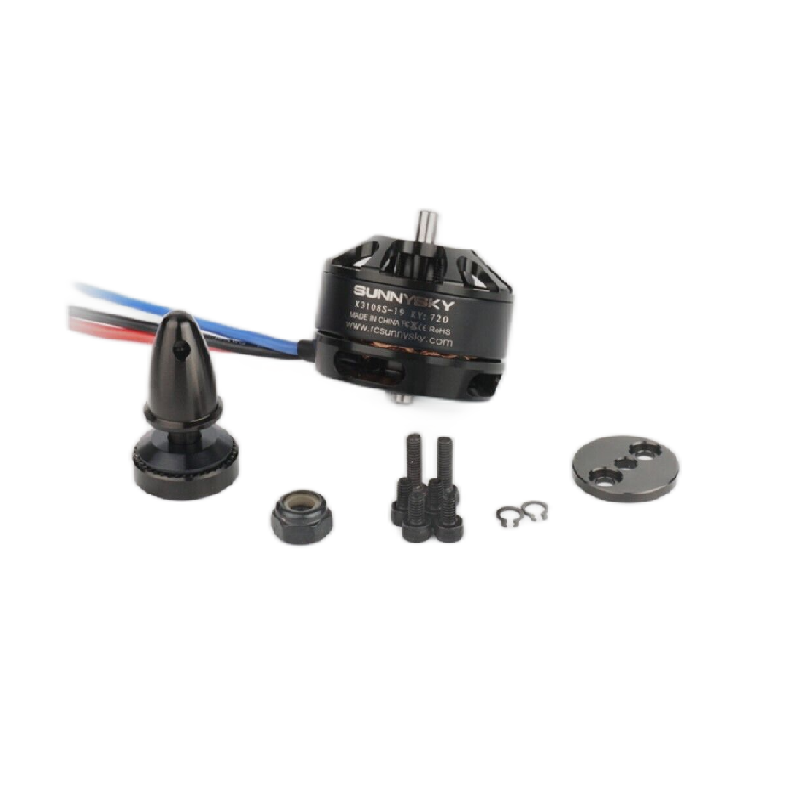

- Features a 4mm hardened steel shaft and includes prop adaptor and holding disk for secure mounting.
- Optimized for large propellers (e.g., APC 10×3.8, 11×4.7, 12×3.8) on heavy-lift and mapping drones.
Out of stock
The SunnySky X3108S KV900 brushless motor is engineered for demanding UAV applications requiring reliable, high-torque propulsion. Its 31mm stator diameter and 8mm thickness provide a substantial magnetic circuit, optimized for efficient operation at lower RPMs with large-diameter propellers. This design minimizes current draw for a given thrust output, directly contributing to extended flight endurance in mapping, surveying, and payload-carrying platforms.
Constructed with high-grade components, the motor features a balanced 12-arm stator and 14-pole rotor assembly for exceptionally smooth rotation and minimal vibration. The low 86mΩ resistance and 0.9A no-load current at 10V underscore its electrical efficiency. The integrated 4mm steel shaft and included mounting hardware ensure a secure and straightforward installation onto standard motor mounts.
Additional Information
| Weight | 0.112 kg |
|---|---|
| Dimensions | 6 × 9 × 5 cm |
