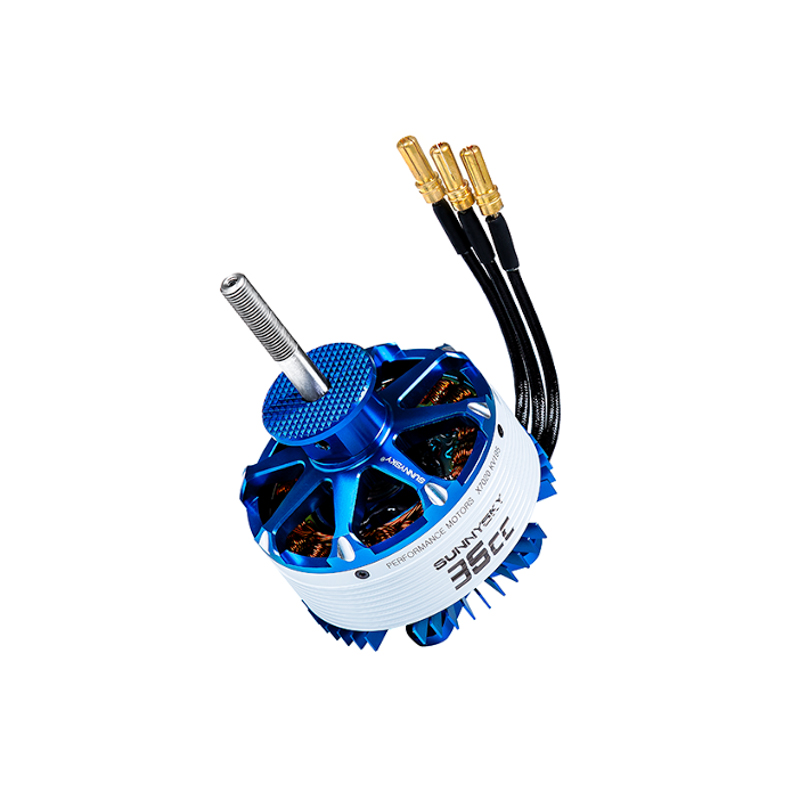

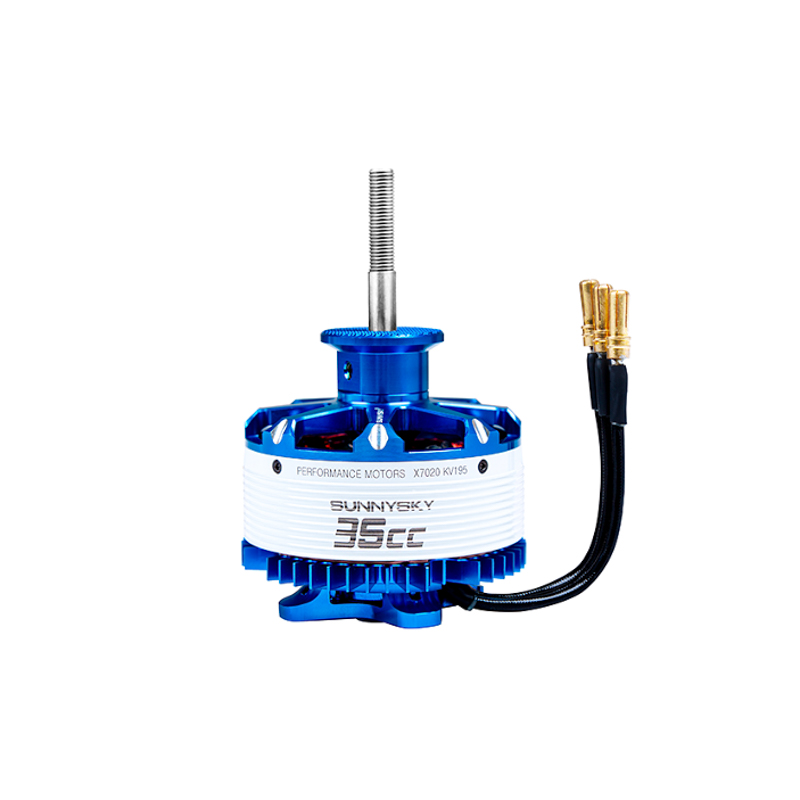

SunnySky X Fixed Wing Series III Motor X7020-35CC 195KV
The SunnySky X7020-35CC is a high-torque 195KV brushless motor engineered for large-scale fixed-wing UAVs and heavy-lift multirotors, delivering up to 5520W of power for demanding aerobatic and long-endurance flight profiles.
Features
- High-torque 195KV design optimized for large propellers (20×9 to 21×10).
- Robust construction supports continuous current up to 120A for 30 seconds.
- 3.175mm precision shaft ensures reliable power transfer and mounting stability.
- Efficient cooling design maintains performance during extended flight operations.
- Ideal powerplant for fixed-wing FPV, mapping drones, and heavy-lift platforms.
Out of stock
The SunnySky X Fixed Wing Series III Motor X7020-35CC is engineered for high-power aviation applications requiring substantial torque and thermal headroom. Its 195KV winding is specifically matched to swing large-diameter, high-pitch propellers like the EOLO 20×9 and 21×10, converting electrical energy into efficient thrust for fixed-wing aircraft and heavy-lift multirotor platforms.
Built with a durable stator and rotor assembly, the motor features an optimized thermal path to dissipate heat generated under high-load conditions, such as during climb-outs or aerobatic maneuvers. The 3.175mm hardened steel shaft provides a secure interface for prop adapters and pulleys, ensuring reliable power transmission. With a maximum efficiency current rating of 120A for 30-second bursts, this motor is a cornerstone for builds prioritizing endurance and payload capacity over extreme speed.
Additional Information
| Weight | 1.05 kg |
|---|---|
| Dimensions | 19 × 15 × 13 cm |
