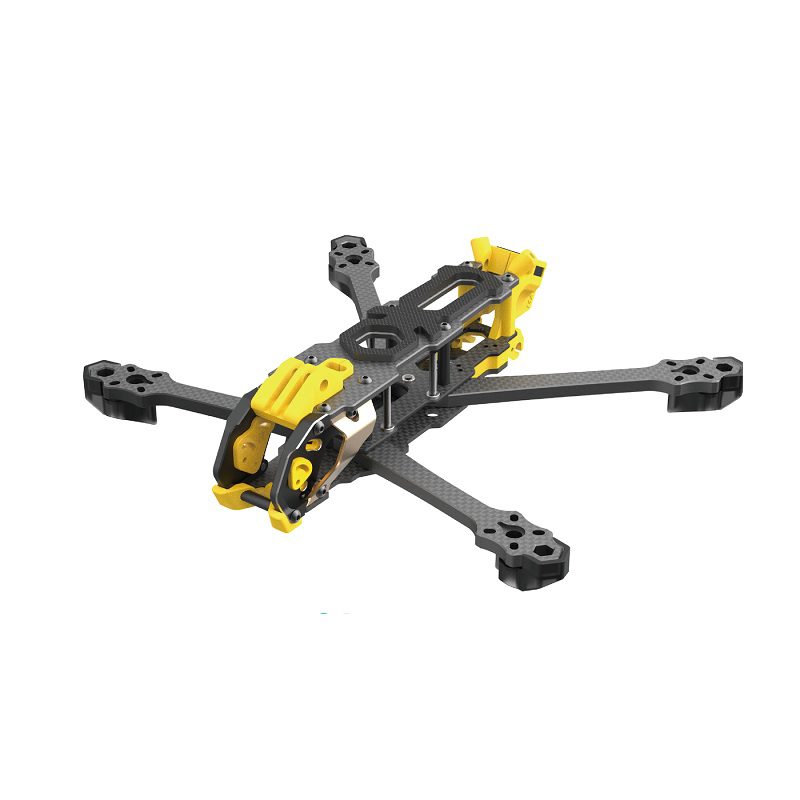

SpeedyBee Mario 5 DC O4 Advanced Version FPV Frame
SpeedyBee Mario 5 DC O4 Advanced Version FPV Frame - Image 2
SKU: DRFC-0621
📋 GST Invoice Available

SpeedyBee Mario 5 DC O4 Advanced Version FPV Frame

₹4,699.00 (Inclusive of all taxes)
Out of Stock

The SpeedyBee Mario 5 DC O4 Advanced Version is a durable 5-inch drone frame engineered with high-strength aluminum alloy for robust protection and optimized DJI O3 VTX integration. Its stable design and dual power input system ensure reliable flight performance and simplified build configuration for FPV pilots.

Features

  • Optimized for DJI O3 Air Unit with dedicated protection and enhanced ultra-wide-angle view.
  • High-strength aviation aluminum alloy head protects FPV camera lens and minimizes jello effect.
  • Unique carbon plate arm support structure significantly enhances frame stability and reduces twist.
  • Features a selectable dual main power input method for precise center of gravity adjustment.
  • Integrated receiver installation space simplifies frequency binding and build complexity.

Out of stock

Description

The SpeedyBee Mario 5 DC O4 Advanced Version is engineered for performance and versatility, featuring a high-strength aviation aluminum alloy head that not only protects the lens but also optimizes the DJI O3 VTX ultra-wide-angle view, minimizing the “jello effect” for a consistently steady image.

Its unique carbon plate arm support structure significantly enhances body stability and reduces twisting, while also providing dedicated space for capacitor installation. The frame offers a power dual-input method for easy center of gravity adjustment, along with integrated sockets and antennas for a clean and efficient build.

A dedicated receiver installation space at the rear simplifies frequency binding and setup. Furthermore, the SpeedyBee Mario 5 DC O4 Advanced Version encourages personalization with diverse open-source 3D models and includes protective armor that shields the Flight Controller and enhances DJI O3 heat dissipation, ensuring optimal cooling during demanding flights.

Key Features

  • High-Strength Alloy Head: Provides robust lens protection and optimizes DJI O3 VTX ultra-wide-angle view, effectively minimizing the "jello effect" for clear footage.
  • Unique Carbon Plate Arm Support: Significantly enhances overall body stability and rigidity, reducing frame twisting and offering space for capacitor installation.
  • Power Dual-Input Method: Offers selectable dual main power input options, facilitating easy center of gravity adjustment and cleaner wiring with integrated sockets and antenna mounts.
  • Dedicated Receiver Installation Space: Features a specific rear bottom area for receiver mounting, simplifying frequency binding and overall setup.
  • Diverse Open-Source 3D Models: Allows for extensive customization and personalization of the frame with a wide range of available 3D-printable parts.
  • Frame Protection Armor: Includes protective elements that shield the Flight Controller and enhance DJI O3 heat dissipation, featuring a recessed GoPro mount for a lower center of gravity.

Applications

  • FPV freestyle and aggressive racing for 5-inch propeller setups.
  • Cinematic and long-range FPV flights leveraging DJI O3 Air Unit capabilities.
  • Custom drone builds requiring robust frame protection and optimized component integration.

Technical Specifications

Item TypeAccessory
Model NameDrone Frame
MaterialAluminium Metal Alloy, T300 3K Carbon Fiber
Arm Thickness6mm
Top Plate Thickness2.5mm
Middle Plate Thickness2.0mm
Bottom Plate Thickness2.5mm
Battery Anti-Slip Pad3mm Silicone
Motor Spring Hole PositionΦ8mm
Compatible Propeller SizeMax 5.1 Inch
Motor Mounting Hole Distance16-19mm
FC Mounting Hole30.5×30.5mm (M3)
Internal Mounting Height23-31mm
Receiver Installation Space25×13×6mm
Suitable Capacitor SizeΦ10mm×20mm
GPS Installation Size18×18×7mm
VTX Mounting Holes20×20mm (M2)

Frequently Asked Questions

What are the key advantages of the SpeedyBee Mario 5 DC O4 frame's head design?

The high-strength aviation aluminum alloy head provides superior protection for your FPV camera lens. It is specifically designed to optimize the DJI O3 VTX ultra-wide-angle view, significantly minimizing the "jello effect" to ensure consistently clear and stable video footage during aggressive maneuvers or high-speed flight.

How does the frame enhance stability and reduce twisting during flight?

The frame features a unique carbon plate arm support structure. This design significantly enhances overall body stability and effectively reduces unwanted twisting or flex during flight. This improved rigidity contributes to more precise control and a smoother flight experience, particularly under high-stress conditions.

What is the benefit of the dual-input power method on the Mario 5 DC O4?

The selectable dual main power input method offers flexibility in battery placement, allowing for easy adjustment of the drone's center of gravity. This helps achieve optimal balance, which is crucial for precise flight characteristics and improved maneuverability. It also facilitates cleaner wiring with integrated sockets.

What flight controller and VTX mounting patterns does this frame support?

The SpeedyBee Mario 5 DC O4 frame supports a standard 30.5x30.5mm (M3) mounting pattern for flight controllers, accommodating most popular FCs. For video transmitters (VTX), it provides 20x20mm (M2) mounting holes, specifically designed for seamless integration with units like the DJI O3 Air Unit.

What propeller sizes are compatible with the SpeedyBee Mario 5 DC O4 frame?

This frame is designed to be compatible with propellers up to a maximum size of 5.1 inches. This specification ensures that pilots can utilize a wide range of popular 5-inch or 5.1-inch propellers commonly used in FPV freestyle and racing builds, providing flexibility in propulsion choice.

Package Includes

  • 1 x Top Plate
  • 1 x Bottom Plate
  • 1 x Middle Plate
  • 2 x Supporting Board
  • 2 x Front Arm
  • 2 x Back Arm
  • 1 x Head L
  • 1 x Head R
  • 1 x Motor Protective Pad
  • 1 x Receiver Protective Cover
  • 1 x Battery Anti-Slip Pad
  • 2 x Camera Silicone Mount
  • 4 x M3*16 Screw
  • 4 x M3*25 Screw
  • 1 x TPU GoPro Mount
  • 1 x TPU XT60/SMA Antenna Mount
  • 1 x TPU Receiver Mount
  • 1 x TPU CNC
  • 1 x CNC Air Intake L
  • 1 x CNC Air Intake R
  • 1 x TX60EW-M
  • 1 x SMA/U.FL
  • 1 x M5*22 Screw
  • 1 x M5 Iron Nut
  • 1 x 03 Antenna Mount
  • 2 x M4*3 Screw
  • 4 x M2*4 Screw
  • 6 x M2*7 Screw
  • 14 x M3*6 Screw
  • 8 x M3*12 Screw
  • 4 x M1.6*8 CubePilot Socket Cap Screws
  • 4 x M2*10 CubePilot Socket Cap Screws
  • 1 x SpeedyBee Mario 5 250mm strap

Additional Information

Dimensions 22 × 17 × 4 cm
