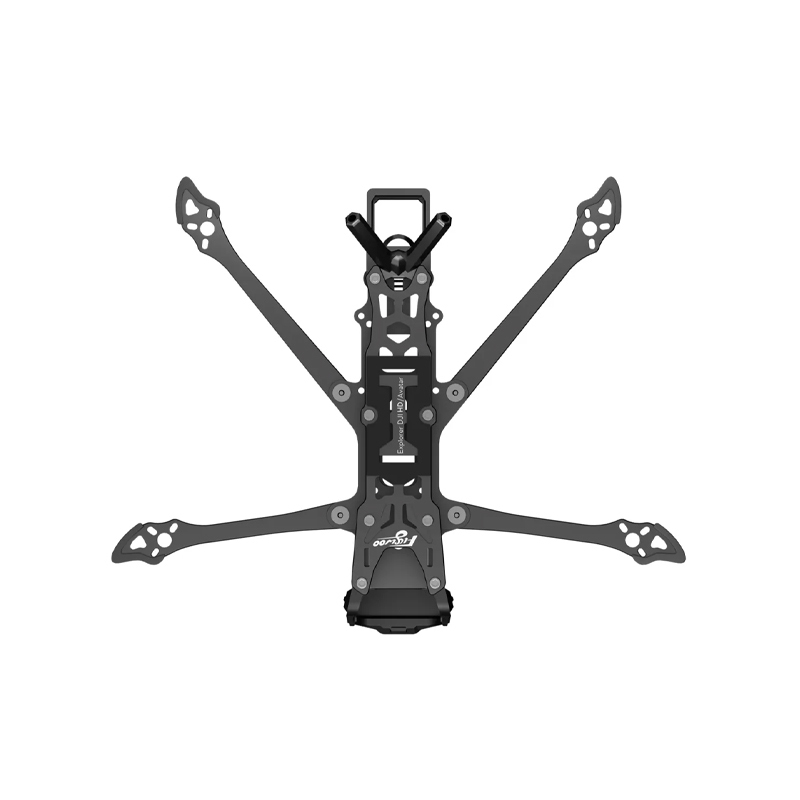

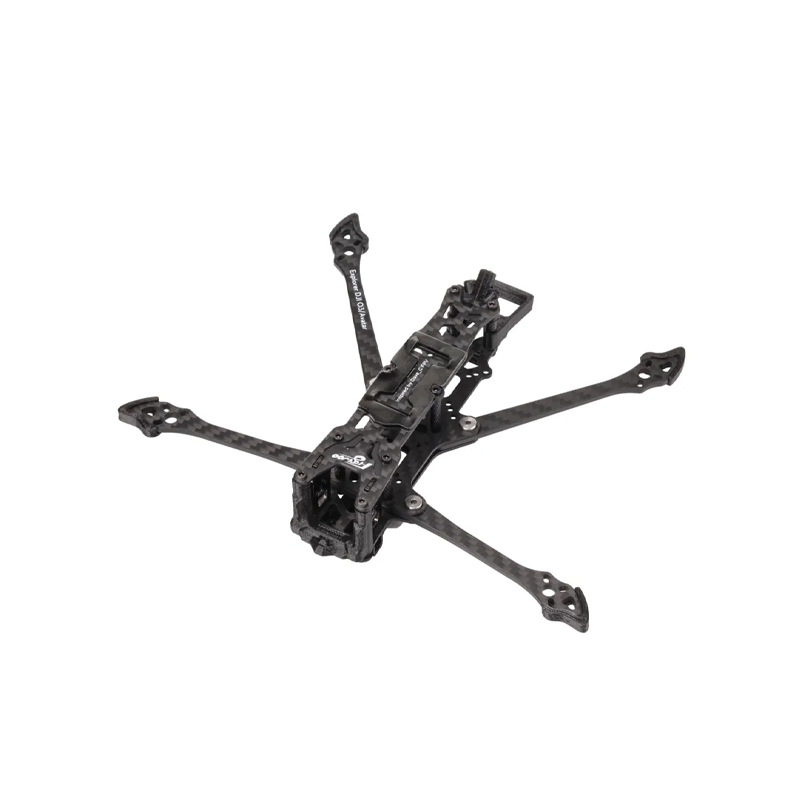

Flywoo Explorer LR O3 Long-Range FPV Frame Kit
Flywoo Explorer LR O3 Long-Range FPV Frame Kit - Image 2
Flywoo Explorer LR O3 Long-Range FPV Frame Kit - Image 3
Flywoo Explorer LR O3 Long-Range FPV Frame Kit - Image 4
SKU: DRFC-0587
📋 GST Invoice Available

Flywoo Explorer LR O3 Long-Range FPV Frame Kit

₹3,339.00 (Inclusive of all taxes)
Out of Stock

The Flywoo Explorer LR O3 Frame Kit is an ultra-light, sub-250g long-range FPV platform meticulously designed for seamless DJI O3 Air Unit integration. Crafted from durable carbon fiber, it provides a stable and agile foundation for extended cinematic and exploratory flights, supporting 1404 motors and GPS modules.

Features

  • Optimized for seamless DJI O3 Air Unit integration.
  • Ultra-lightweight design facilitates sub-250g FPV builds.
  • Durable carbon fiber construction ensures robustness for long-range flights.
  • Compatible with 1404 motors, mini flight stacks, and GM10 Mini V3 GPS.

Out of stock

Description

The Flywoo Explorer LR O3 Frame Kit stands as a premium, ultra-compact long-range FPV platform, meticulously engineered for seamless integration with the DJI O3 Air Unit. Its design prioritizes achieving a sub-250g total weight, blending rugged construction with exceptional agility to empower pilots with uncompromised exploration capabilities. This frame provides a robust yet lightweight foundation for advanced FPV systems.

Optimized for pro-grade performance, the Explorer LR O3 frame is compatible with the Goku F722 mini stack and efficient Nin V2 1404 2750KV motors, ensuring stable and responsive flight characteristics. Whether capturing cinematic vistas or navigating complex terrain, its durable three-plate carbon fiber layout, precision-cut components, and optimized airflow contribute to unmatched performance and reliability in demanding flight scenarios. It’s truly built for explorers and engineered for the skies.

Key Features

  • DJI O3 Air Unit Optimization: Specifically designed for full compatibility with the DJI O3 Air Unit, ensuring optimal video transmission and mounting.
  • Sub-250g Ultra-Lightweight: Engineered to facilitate FPV drone builds that remain under the 250-gram weight threshold, enhancing flight versatility and regulatory compliance.
  • Premium 3K Carbon Fiber Construction: Utilizes high-grade carbon fiber for superior durability, impact resistance, and a lightweight structural integrity suitable for demanding long-range flights.
  • Modular 3-Plate Design: Features a user-friendly three-plate frame structure for simplified assembly, component access, and maintenance or part replacement.
  • 1404 Motor & Mini Stack Support: Optimized for efficient Nin V2 1404 2750KV brushless motors and compatible with compact mini flight controller stacks like the Goku F722.
  • Integrated GPS Ready: Includes dedicated provisions for mounting a GPS module such as the GM10 Mini V3, enabling accurate navigation and return-to-home functionality.

Applications

  • Long-Range FPV Exploration: Ideal for pilots undertaking extended flights to explore vast landscapes or remote areas.
  • Cinematic FPV Filming: Provides a stable and vibration-free platform suitable for capturing high-quality aerial video with the DJI O3 Air Unit.
  • Sub-250g Builds: Perfect for constructing lightweight FPV drones that comply with stricter weight regulations in various regions.
  • FPV Freestyle & Cruising: Offers a blend of agility and stability for both acrobatic freestyle maneuvers and relaxed cruising.

Technical Specifications

ModelExplorer LR O3
Frame TypeLong-Range FPV Frame
MaterialHigh-Grade Carbon Fiber
Arm Thickness4mm
CompatibilityDJI O3 Air Unit, Goku F722 Mini Stack, Nin V2 1404 Motors, GM10 Mini V3 GPS
Length196mm
Width160mm
Weight170g

Frequently Asked Questions

What flight controller stacks are compatible with the Flywoo Explorer LR O3 Frame?

This frame is primarily designed for mini flight controller stacks, specifically optimized for the Goku F722 Mini Stack. Its compact layout accommodates standard 20x20mm mounting patterns, providing ample space for other similar small-form-factor FC/ESC setups while maintaining the desired sub-250g build objective for optimal performance and efficiency in long-range FPV applications.

What are the key advantages of the carbon fiber construction for this FPV frame?

The Flywoo Explorer LR O3 frame utilizes premium 3K carbon fiber, offering an exceptional strength-to-weight ratio. This material choice ensures superior durability and impact resistance crucial for FPV flight, while simultaneously contributing to the frame's ultra-lightweight characteristic, enabling reliable sub-250g builds essential for extended range and cinematic stability.

Can other FPV systems be integrated with this frame besides the DJI O3 Air Unit?

While the Flywoo Explorer LR O3 frame is specifically optimized for the DJI O3 Air Unit, its adaptable design may allow for integration of other compact digital or analog FPV systems. Pilots would need to ensure sufficient space and proper mounting solutions for their chosen VTX and camera, potentially requiring custom 3D printed parts for optimal fit and protection within the frame's layout.

What motor size and propeller combinations are recommended for the Explorer LR O3 frame?

The Explorer LR O3 frame is optimized for efficient 1404 sized brushless motors, such as the Nin V2 1404 2750KV. This motor choice, when paired with suitable 3-inch or 3.5-inch propellers, provides an excellent balance of thrust, efficiency, and flight time, making it ideal for the frame's intended long-range and cinematic application while staying within the sub-250g weight target.

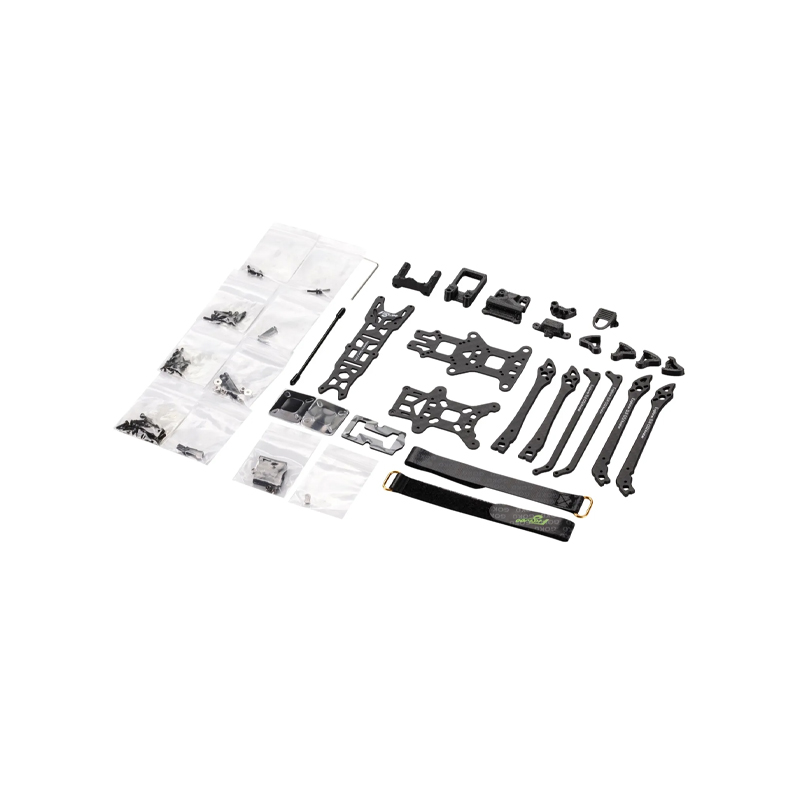

Package Includes

  • 1x Flywoo Explorer LR O3 Frame Kit
  • 4x M1.6*14 Screws
  • 8x M2*6 Screws
  • 2x M2*7 Screws
  • 18x M2*8 Screws
  • 8x M2*12 Screws
  • 4x M2*5 Nylon Posts
  • 3x M3 Locknuts
  • 6x M2 Press Nuts
  • 4x M2*20 Aluminium Standoffs
  • 2x M2*25 Aluminium Standoffs
  • 1x Black TPU 3D Printed Part Set

Additional Information

Dimensions 19.6 × 16 cm
