SpeedyBee F7 Mini 35A 3-6S 8-bit Flight Controller Stack
The SpeedyBee F7 Mini 35A 3-6S Flight Controller Stack integrates a high-performance F7 processor with a 35A BLHeli_S 4-in-1 ESC, designed for compact 3-6S LiPo FPV drone builds requiring agile flight control and wireless Betaflight tuning via Bluetooth.
Features
- High-performance F7 flight controller with 8-bit processing for rapid flight loop execution.
- Integrated 35A BLHeli_S 4-in-1 ESC supports DSHOT600 for ultra-responsive motor control.
- Built-in Bluetooth 4.0 BLE enables wireless Betaflight and ESC parameter tuning via the SpeedyBee app.
- Compact 32x35mm footprint with dual M2/M3 mounting compatibility for space-constrained frames.
- Wide 3-6S LiPo input voltage range supports high-performance 4S and 6S power systems.
Out of stock

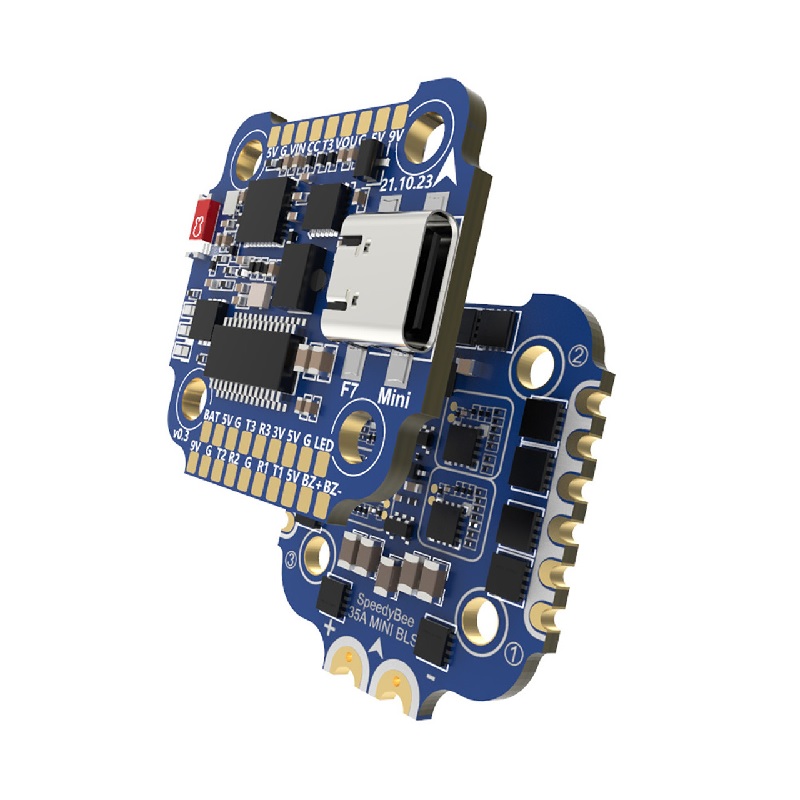

The SpeedyBee F7 Mini Stack combines a robust flight controller and a high-current ESC into a single, compact unit engineered for performance-focused micro and mini quadcopters. The F7 MCU provides ample processing headroom for complex flight algorithms and high PID loop rates, while the integrated 35A BLHeli_S ESCs ensure smooth, efficient power delivery to your motors with support for modern DSHOT protocols.

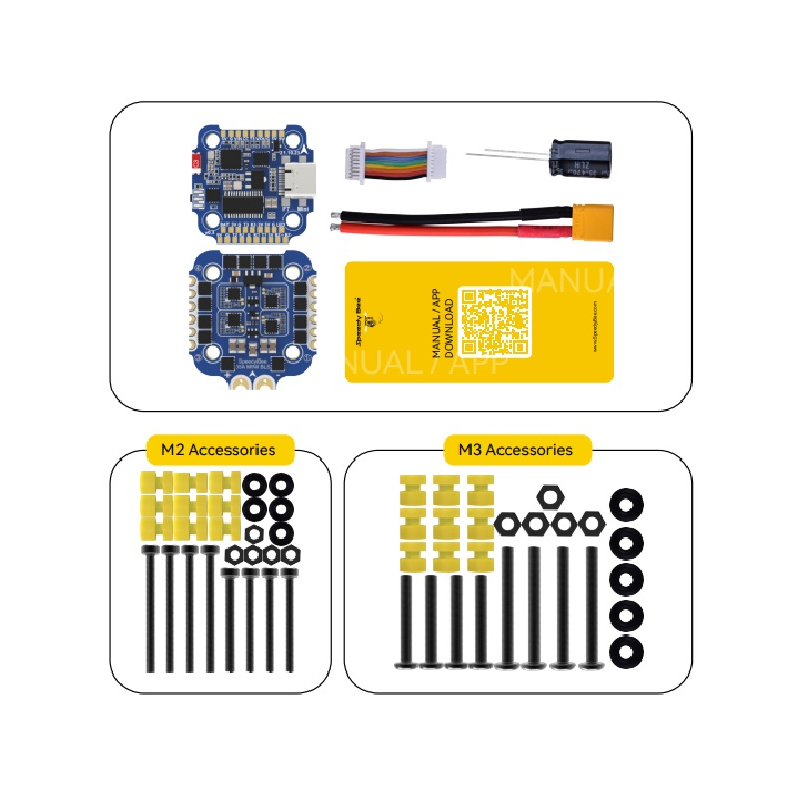

Designed for seamless integration, the stack includes comprehensive mounting hardware for both M2 and M3 standoffs, along with anti-vibration grommets to isolate sensitive electronics from frame resonance. The inclusion of a Bluetooth chip eliminates the need for a physical USB connection for basic tuning, streamlining the setup process for pilots in the field or on the bench.
Additional Information
| Weight | 0.0127 kg |
|---|---|
| Dimensions | 3.2 × 3.5 × 1.3 cm |
