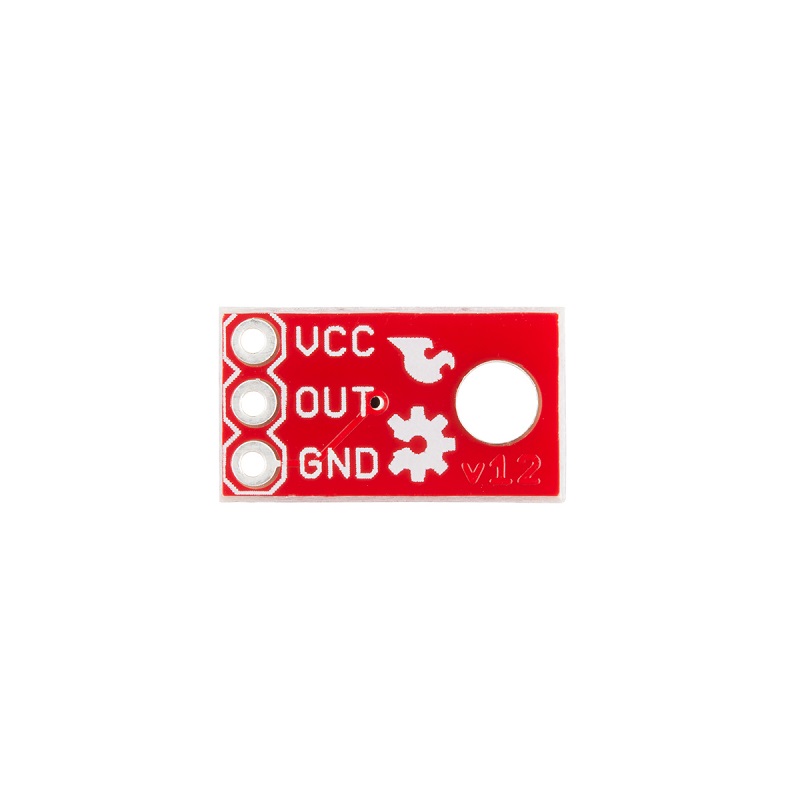

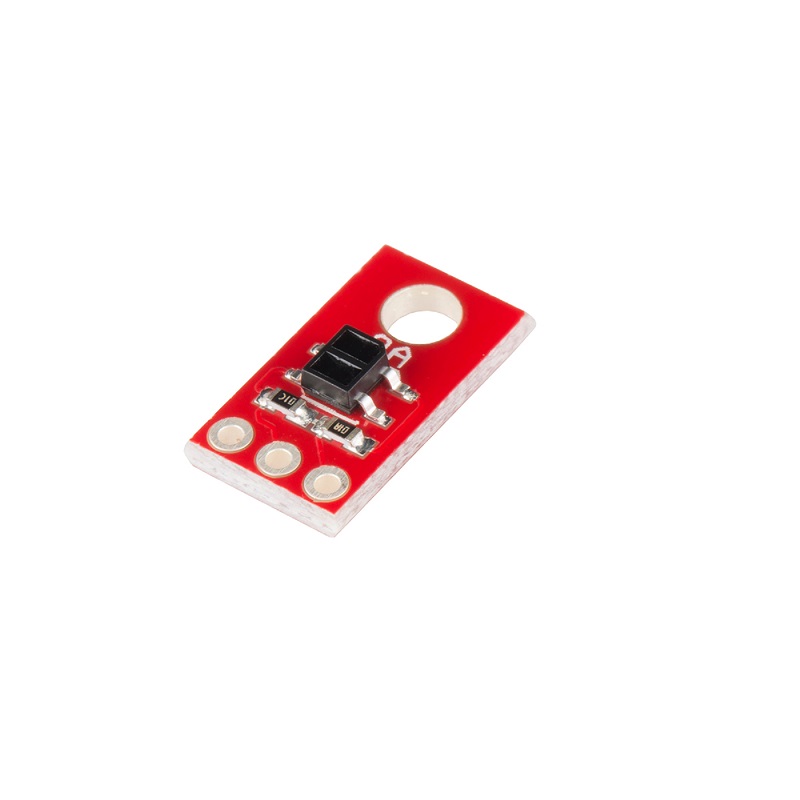

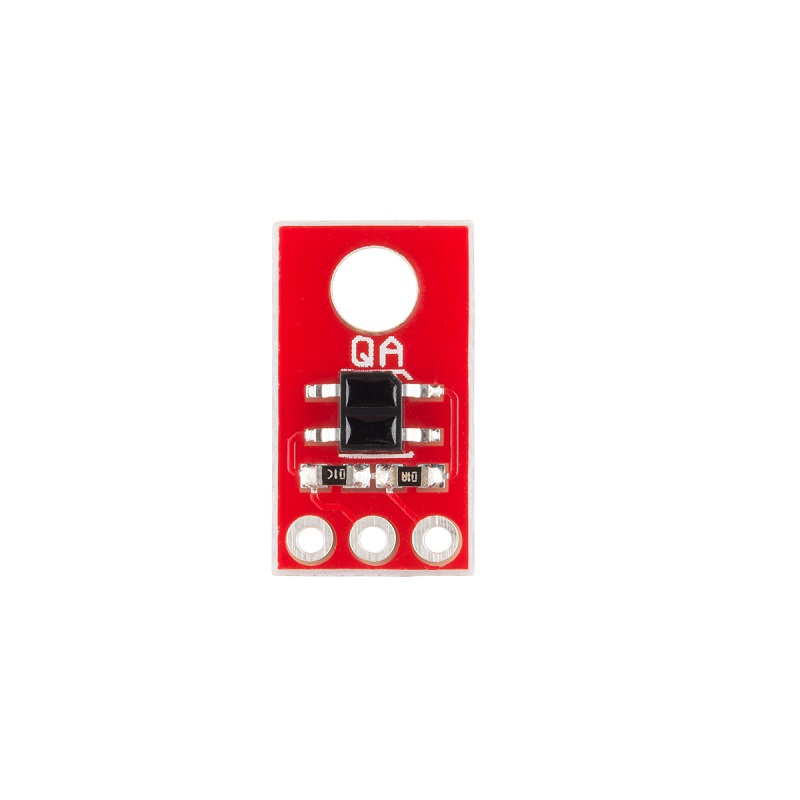

SparkFun QRE1113 Line Sensor Breakout (Analog) - Miniature IR Reflectance Module
The SparkFun QRE1113 Analog Line Sensor Breakout is a compact IR reflectance sensor module designed for non-contact surface detection, ideal for line-following robots and proximity sensing in 3.3V or 5V microcontroller systems like Arduino and Raspberry Pi.
Features
- Analog output voltage inversely proportional to reflected IR intensity
- Integrates QRE1113 sensor with IR LED and phototransistor pair
- On-board 100Ω current-limiting and 10kΩ pull-up resistors
- Compatible with 3.3V and 5V logic systems
- Miniature footprint (15mm x 10mm) for space-constrained designs
Out of stock
The SparkFun QRE1113 Analog Breakout utilizes an infrared reflectance sensing principle. The onboard IR LED emits light, which is reflected by a surface and detected by the co-located phototransistor. The module’s analog output pin provides a voltage that decreases as the amount of reflected IR light increases, enabling precise grayscale or line detection.
Designed for easy integration, the breakout includes all necessary current-limiting and pull-up resistors. The output can be read directly by any microcontroller ADC pin, making it suitable for real-time feedback in autonomous robotics, edge detection, and material discrimination applications.
Additional Information
| Weight | 0.0026 kg |
|---|---|
| Dimensions | 1.5 × 1 cm |
