SMA Female to IPEX1 Connector Cable RG1.13 15cm

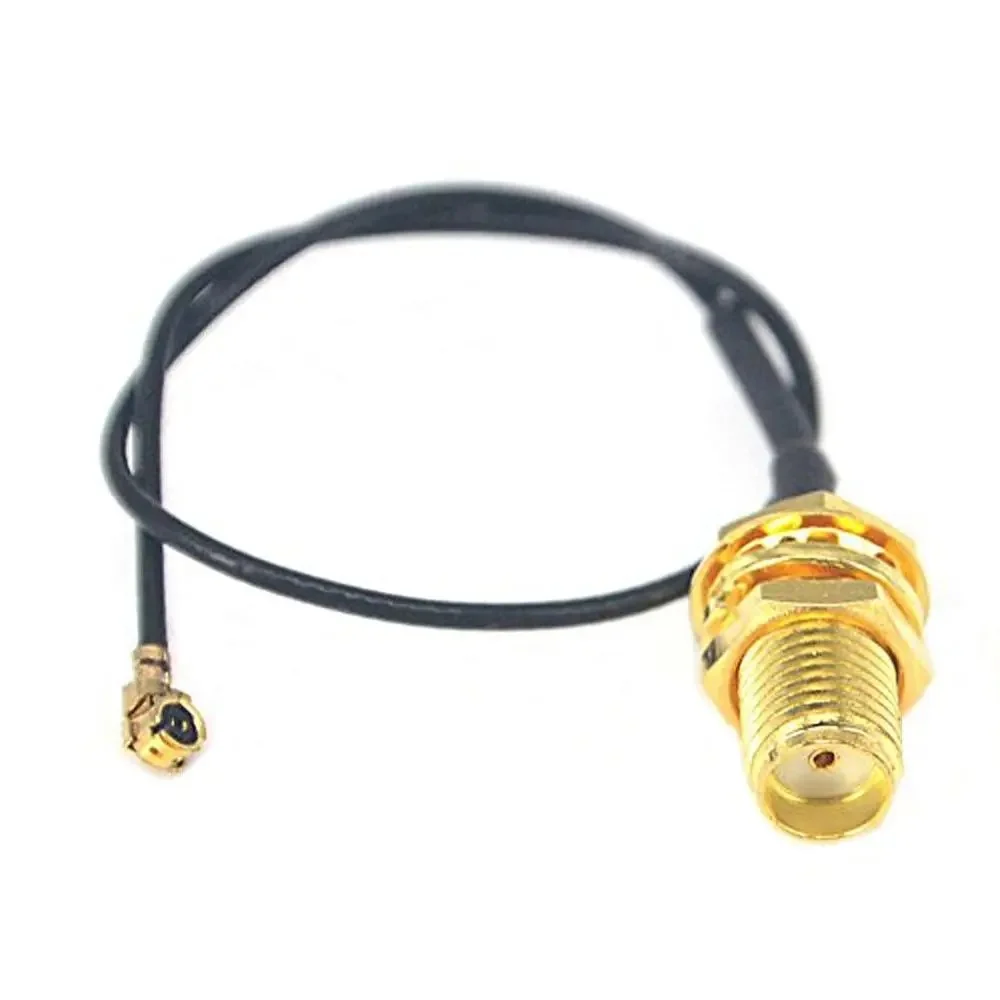

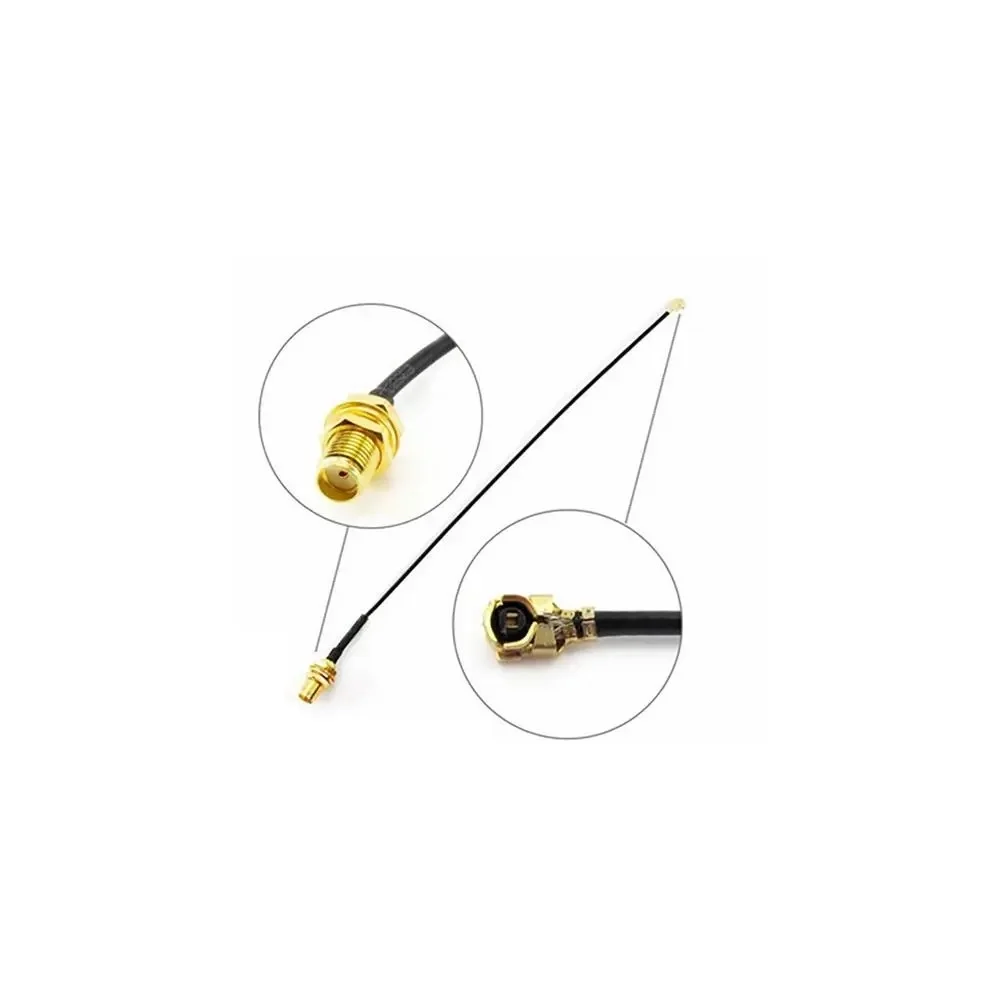

This 15cm RG1.13 RF pigtail cable adapts a panel-mount SMA female connector to a board-level IPEX1 (u.FL) connector, enabling antenna connections for 5G/4G, Wi-Fi, LoRa, and GNSS modules up to 6GHz.
Features
- Provides a critical interface between board-level IPEX1/u.FL sockets and standard SMA antenna connectors.
- Supports a wide frequency range from 0 to 6000MHz for 5G, 4G LTE, Wi-Fi, LoRa, and GPS applications.
- Features a robust SMA female panel-mount connector with a 13mm thread for secure chassis installation.
- Utilizes low-loss RG1.13 coaxial cable to maintain signal integrity over the 15cm length.
- Essential for prototyping and final product integration where space-saving u.FL connectors are used on modules.
Out of stock
This SMA Female to IPEX1 RF adapter cable is a fundamental interconnect for wireless system integration. It bridges the gap between compact, surface-mount IPEX1 (also known as u.FL or MHF) connectors found on most modern cellular, Wi-Fi, and LoRa modules and the larger, more robust SMA connectors standard on external antennas. The cable uses RG1.13 coaxial construction, offering a balance of flexibility and low signal loss for frequencies up to 6GHz.
The panel-mount SMA female connector features a 13mm thread length, designed for secure mounting through an enclosure panel, which is typical for GPS and cellular modem installations. This cable is indispensable for developers and integrators working with ESP32, Quectel, SIMCom, or RAKwireless modules who need to connect an external antenna without modifying the board’s RF layout.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 7 × 10 × 1 cm |
