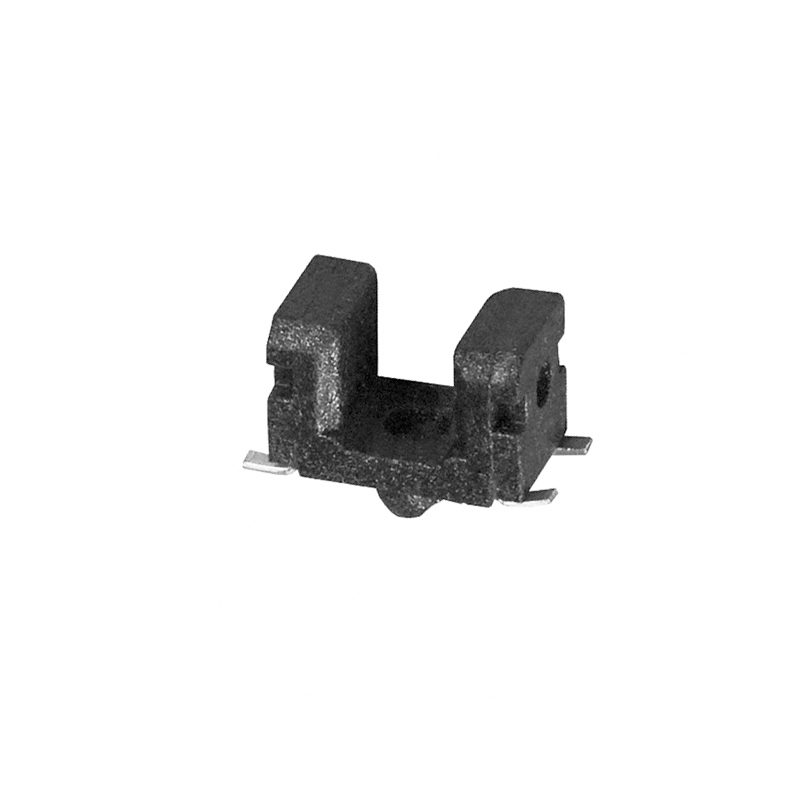

Sharp Microelectronics GP1S092HCPIF Compact Transmissive Photointerrupter Sensor, SMT 2mm Gap, 0.3mm Slit, Phototransistor Output
The Sharp Microelectronics GP1S092HCPIF is a compact, surface-mount transmissive photointerrupter with phototransistor output, designed for high-precision non-contact sensing in automated PCB assembly. Its integrated emitter-detector structure and D-shaped positioning pin ensure accurate alignment for applications requiring detection of small objects or precise position verification.
Features
- Compact SMT package measuring just 4.5 × 2.6 × 2.9 mm for high-density PCB layouts.
- Transmissive design with a precise 2 mm sensing gap and 0.3 mm slit width for accurate object detection.
- Integrated D-shaped positioning pin prevents rotational misalignment during automated assembly.
- Supplied in Tape and Reel packaging (2,000 pieces per reel) for streamlined pick-and-place production.
- Phototransistor output provides a clean digital signal compatible with standard logic-level inputs.
Out of stock
The GP1S092HCPIF utilizes a transmissive optical sensing principle, where an integrated infrared emitter and phototransistor detector are precisely aligned within a single molded housing. This construction, achieved through advanced transfer and injection molding, ensures consistent optical coupling and long-term reliability. The device outputs a logic-level signal that toggles based on the interruption of the infrared beam within the 2 mm gap.
Engineered for industrial durability, the sensor operates across a -30°C to +75°C temperature range and is compliant with RoHS environmental standards. Its surface-mount design and tape-and-reel format are optimized for high-volume manufacturing, providing a reliable solution for non-contact position sensing, end-of-travel detection, and rotary encoder applications in compact electronics.
Additional Information
| Weight | 0.00004 kg |
|---|---|
| Dimensions | 0.45 × 0.26 × 0.29 cm |
