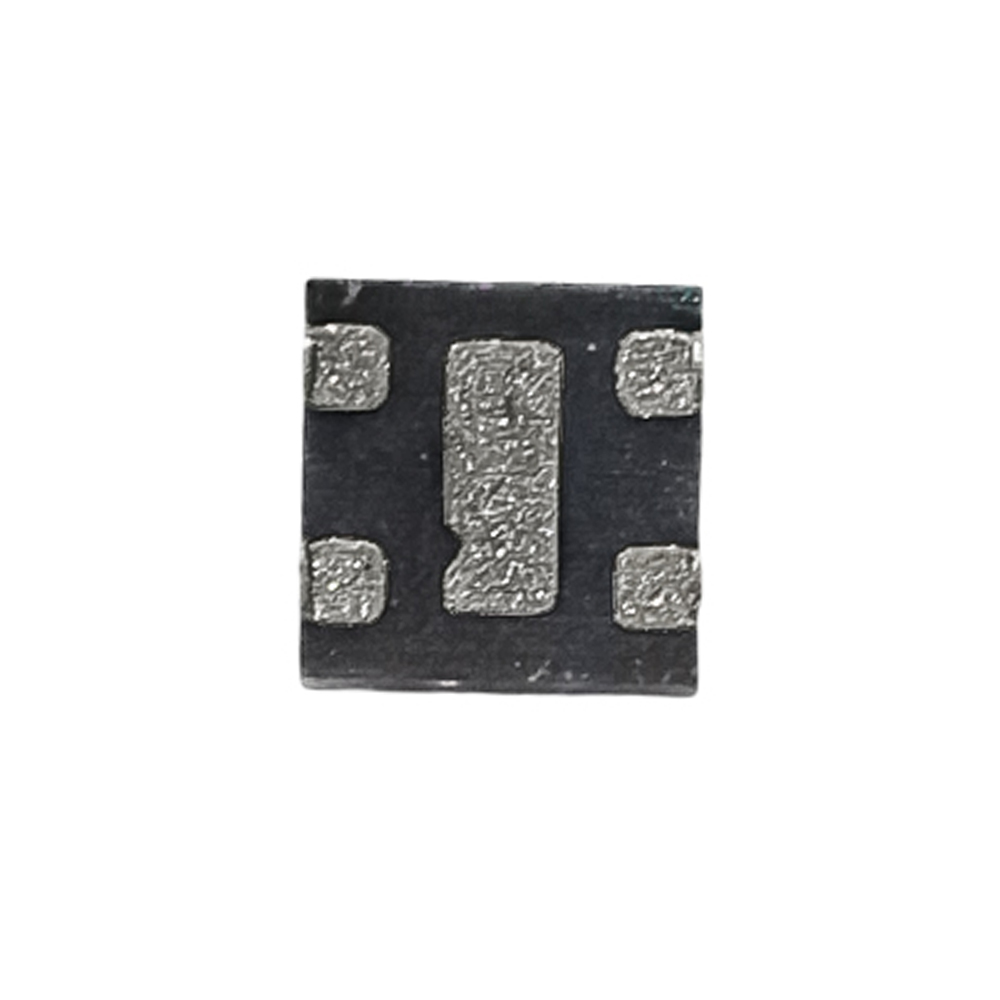

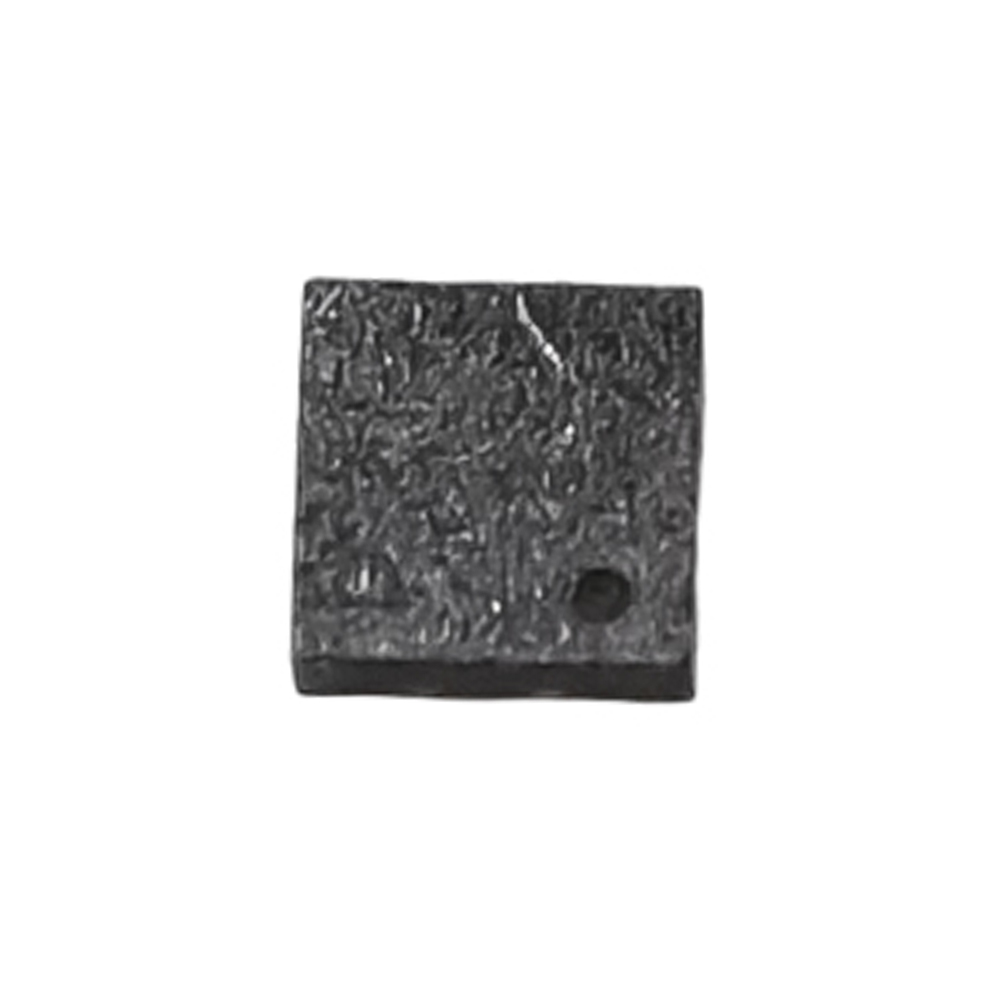

Sensirion STS40-CD1B-R3 Temperature Sensor IC, –40°C~125°C, ±0.2°C Accuracy, I²C Output, 16-Bit Resolution, 1.08~3.6VDC, DFN-4

The STS40 is designed for ultra-low power operation, with an average current consumption of just 0.4 µA when taking one measurement per second (1 Hz). This extremely low power draw makes it ideal for battery-powered and energy-harvesting applications where long-term operation is critical.

The STS40 operates on a supply voltage from 1.08V to 3.6V. To interface with a 5V Arduino, you must use a logic level converter for the I²C lines (SDA, SCL) to prevent damage. Ensure the sensor's VDD is supplied with a regulated 3.3V source. The I²C address and communication protocol are detailed in the Sensirion datasheet.

The integrated Cyclic Redundancy Check (CRC) on the I²C data transmission ensures high communication integrity. It automatically detects errors caused by electrical noise or bus contention, providing more reliable data reads in electrically noisy industrial environments, which is crucial for maintaining measurement accuracy.

While the STS40 offers high accuracy (±0.2°C), JEDEC qualification, and NIST-traceable readings, it is an electronic component. Its suitability for a specific medical or safety-critical end-use must be evaluated through appropriate system-level testing, validation, and certification processes as required by the application's regulatory standards.
