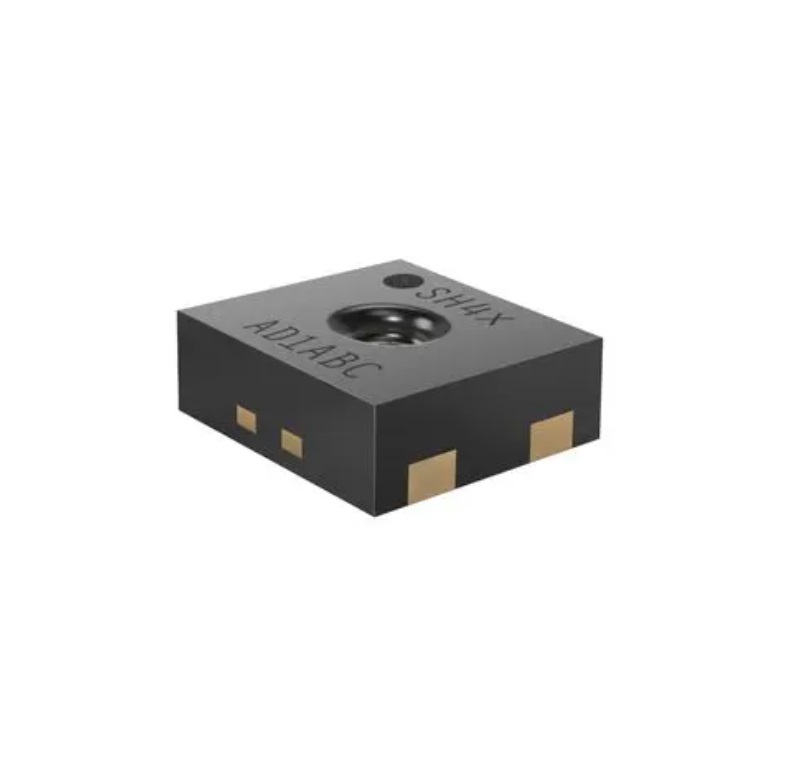

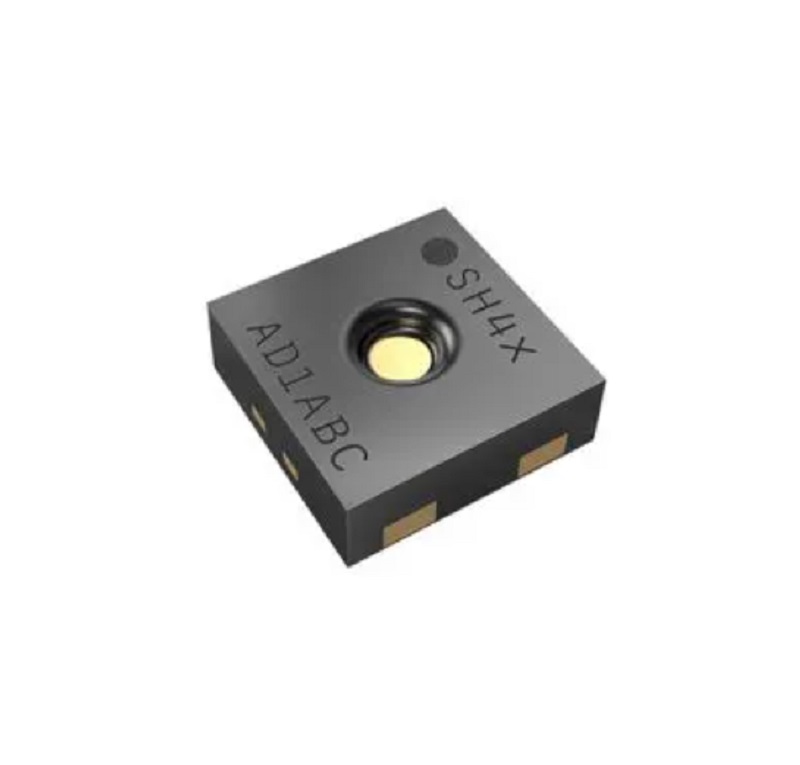

Sensirion SHT45-AD1B-R2 Digital Temperature & Humidity Sensor - I2C Interface, DFN-4
The Sensirion SHT45-AD1B-R2 is a high-precision digital temperature and humidity sensor module featuring an I2C interface, designed for integration into demanding embedded systems, IoT devices, and precision measurement equipment requiring ultra-low power consumption and industry-leading accuracy.
Features
- Ultra-high accuracy of ±1.0% RH and ±0.1°C across full operating range.
- Ultra-low power consumption with 0.4µA average current at 1Hz measurement rate.
- Wide operating voltage range from 1.08V to 3.6V, compatible with low-power and battery-operated designs.
- Robust DFN-4 housing enables reliable performance in condensing environments.
- Fully calibrated digital I2C Fast-Mode Plus interface with address 0x44 for easy system integration.
Out of stock
The SHT45-AD1B-R2 builds on Sensirion’s CMOSens® technology, integrating a complete sensor system—including a capacitive humidity sensor and a band-gap temperature sensor—on a single chip. This monolithic design ensures excellent signal quality, long-term stability, and high precision, making it suitable for the most demanding applications.
Operating from -40°C to 125°C and 0% to 100% relative humidity, the sensor delivers reliable measurements even in harsh or condensing environments. Its extended low-voltage supply range and exceptionally low idle current of 80nA make it ideal for power-sensitive portable and wireless IoT nodes.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
