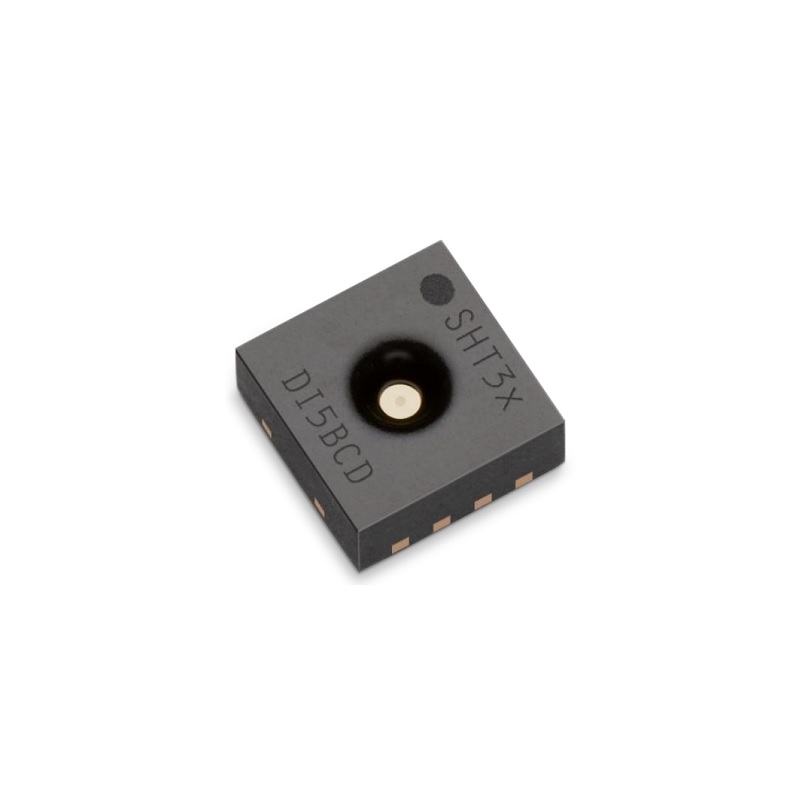

Sensirion SHT31A-DIS-B10KS Humidity & Temperature Sensor, 0 to 100%RH, −40°C to +125°C, ±2%RH, I2C Interface
The Sensirion SHT31A-DIS-B10KS is a high-precision digital humidity and temperature sensor with an I2C interface, compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32. It provides fully calibrated, linearized, and temperature-compensated measurements for reliable environmental monitoring.
Features
- High-precision digital humidity and temperature sensor with I2C interface.
- Wide operating range: 0 to 100% RH and −40°C to +125°C.
- Typical accuracy of ±2% RH and ±0.2°C for reliable measurements.
- Low-power operation with a supply voltage range from 2.15V to 5.5V.
- Compact 8-pin DFN package for space-constrained PCB designs.
Out of stock
The SHT31A-DIS-B10KS from Sensirion is a digital humidity and temperature sensor based on the industry-proven CMOSens® technology. It features a fully calibrated, linearized, and temperature-compensated digital output, ensuring high accuracy and long-term stability. The sensor’s robust capacitive sensing element provides reliable performance across a wide humidity and temperature range.
Designed for easy integration, the sensor communicates via a fast I2C interface (up to 1 MHz) and operates from a wide 2.15V to 5.5V supply, making it suitable for battery-powered and portable applications. Its compact DFN package is ideal for space-constrained designs in HVAC systems, weather stations, and industrial monitoring equipment.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 1.1 × 0.9 × 0.5 cm |
