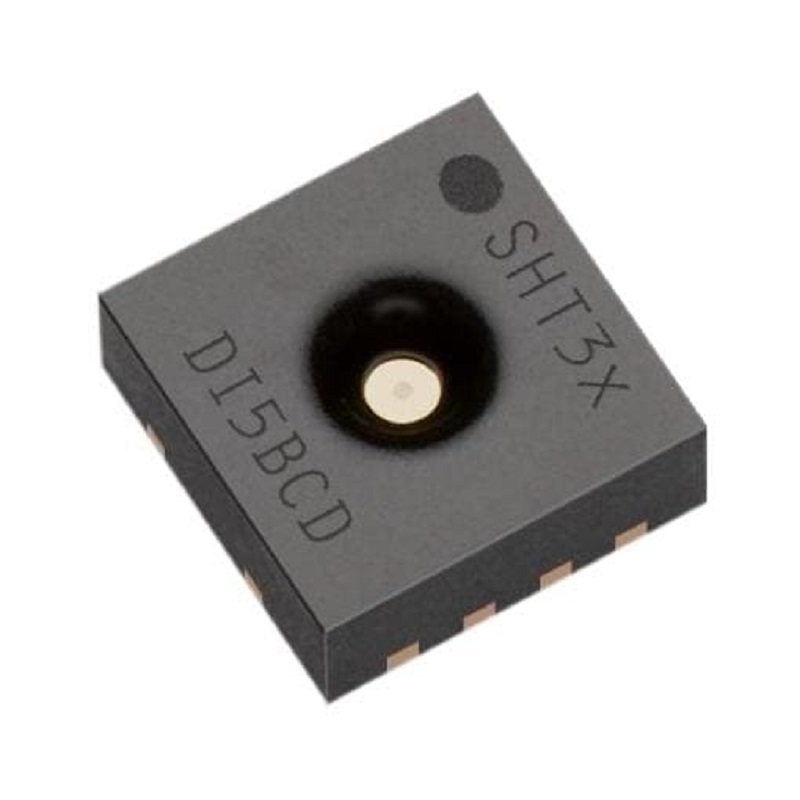

Sensirion SHT31-DIS-F2.5KS Humidity & Temperature Sensor, 0 to 100%RH, −40°C to +125°C, ±2%RH, I2C Interface, DFN-8 Package
The Sensirion SHT31-DIS-F2.5KS is a fully calibrated digital humidity and temperature sensor with an I2C interface, designed for integration into industrial monitoring systems, HVAC controls, and portable data loggers. It operates from 2.4V to 5.5V, ensuring compatibility with 3.3V and 5V logic systems including Arduino, Raspberry Pi, and ESP32 platforms.
Features
- High-accuracy humidity sensing with ±2% RH typical tolerance
- Wide operating range: −40°C to +125°C and 0 to 100% RH
- Low-power I2C digital interface for easy system integration
- Robust DFN-8 surface-mount package, reflow solderable
- Excellent long-term stability for reliable environmental monitoring
Out of stock
The SHT31-DIS-F2.5KS utilizes Sensirion’s proven CMOSens® technology, which integrates a capacitive polymer humidity sensor and a band-gap temperature sensor on a single CMOS chip. This monolithic integration provides superior signal conditioning, high reliability, and minimal cross-sensitivity. The sensor delivers fully calibrated, linearized digital outputs via the I2C fast-mode interface.
Engineered for demanding applications, the sensor features outstanding long-term stability and fast response times. Its wide supply voltage range from 2.4V to 5.5V and low power consumption make it suitable for battery-operated devices. The DFN-8 package is designed for automated assembly and offers robust performance in harsh environmental conditions.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 11 × 9 × 5 cm |
