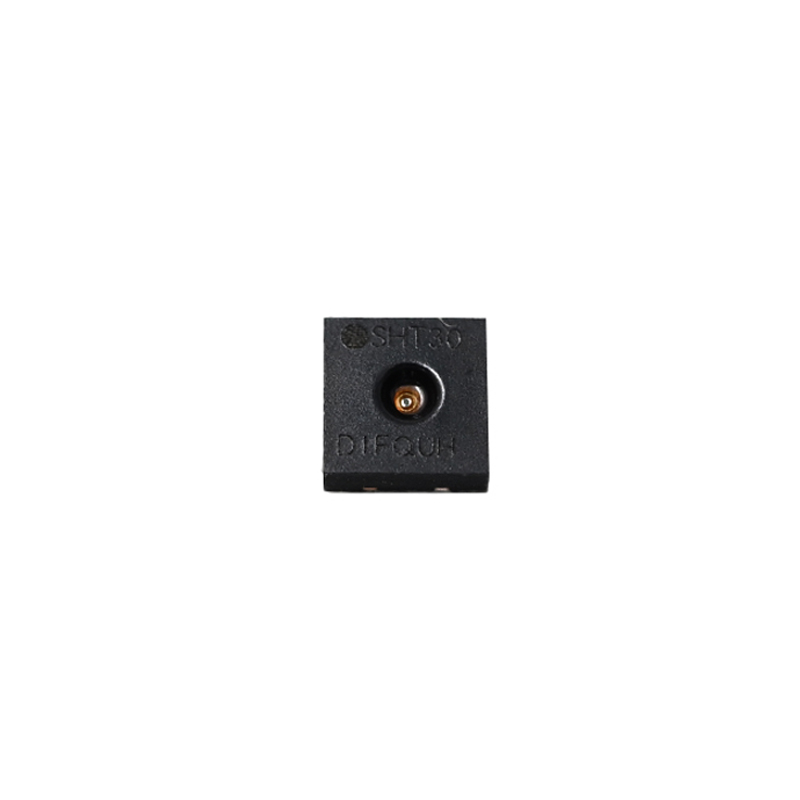

Sensirion SHT30-DIS-B Digital Temperature & Humidity Sensor, –40°C to 125°C, 0~100%RH (±3%RH), I²C Output, 2.15~5.5VDC
The Sensirion SHT30-DIS-B is a high-precision digital temperature and humidity sensor offering ±0.2°C and ±3% RH typical accuracy. Featuring a wide 2.15V to 5.5V supply range and a fast I²C interface, it is designed for seamless integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32 for environmental monitoring applications.
Features
- High Accuracy: ±0.2°C temperature and ±3% RH humidity typical accuracy.
- Wide Voltage Range: Operates from 2.15V to 5.5V DC, compatible with 3.3V and 5V logic systems.
- Fast Digital Interface: I²C communication up to 1 MHz for rapid data acquisition.
- Fully Calibrated & Compensated: Factory-calibrated digital output with integrated temperature compensation.
- Ultra-Low Power: Idle current as low as 0.2 µA, ideal for battery-powered devices.
Out of stock
The SHT30-DIS-B from Sensirion is a next-generation digital humidity and temperature sensor based on the proven CMOSens® technology, which integrates the sensor element, signal processing, and digital calibration on a single chip. This MEMS-based capacitive sensing principle ensures high reliability and long-term stability, with minimal drift over time.

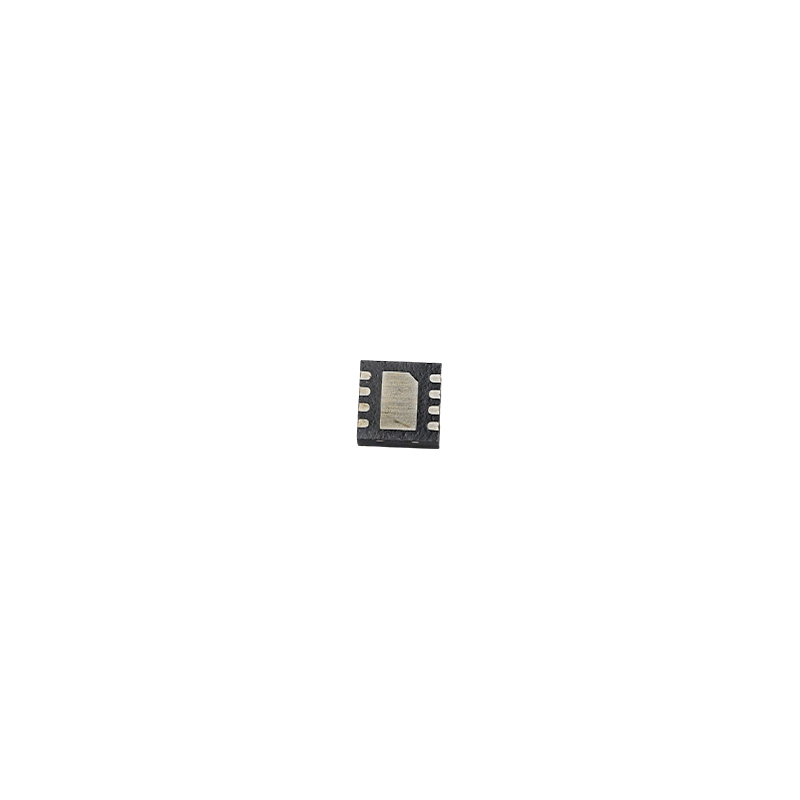

Engineered for demanding applications, the sensor provides fully linearized, temperature-compensated digital outputs via a fast I²C interface. Its robust design supports operation across an extensive temperature range from –40°C to 125°C and 0% to 100% relative humidity, making it suitable for harsh environments. The compact 8-pin DFN package is optimized for space-constrained PCB designs.
Additional Information
| Weight | 0.00005 kg |
|---|---|
| Dimensions | 0.3 × 0.3 cm |
