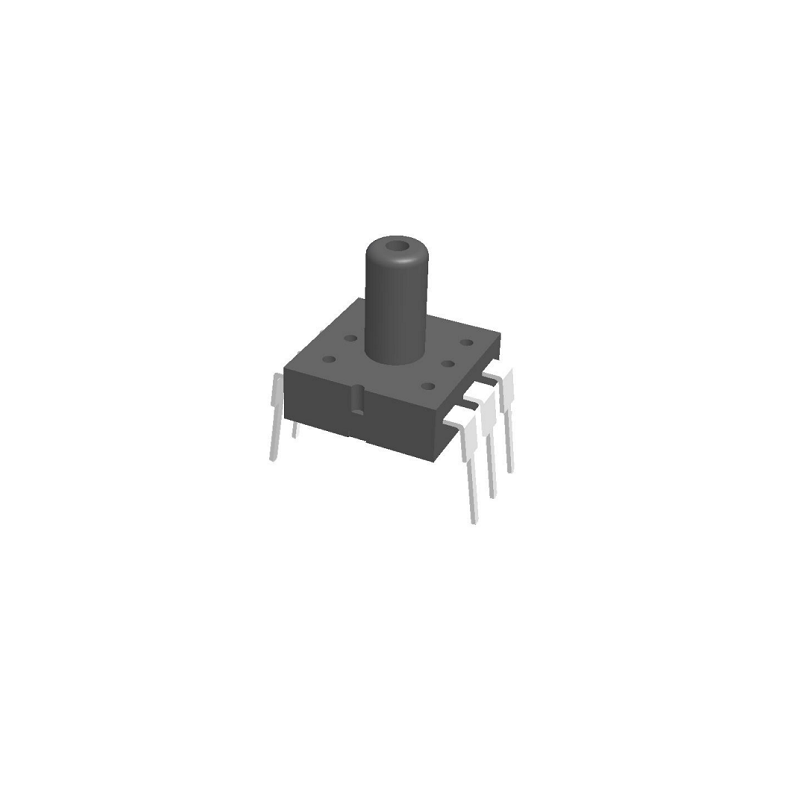

Sencoch GZP6857D201KPP Digital Pressure Sensor, I2C, 3.3V, Low Power, Range: 0-200 kPa

Name: Sencoch GZP6857D201KPP Digital Pressure Sensor, I2C, 3.3V, Low Power, Range: 0-200 kPa
Brand: Sencoch
SKU: SENS-2066
Price: 689.00 INR
Availability: OutOfStock

₹689.00 (Inclusive of all taxes)

Out of Stock

The Sencoch GZP6857D201KPP is a low-power digital pressure sensor module featuring an I2C interface and a 0-200 kPa gauge pressure range. Operating at 3.3V, it is designed for integration with microcontrollers like Arduino, Raspberry Pi, and ESP32 for precise pressure monitoring in compact applications.

Features

Digital I2C output for direct microcontroller interfacing
Ultra-low 100nA standby current for battery-powered designs
MEMS piezoresistive sensing element for reliable pressure measurement
3.3V single-supply operation compatible with common logic levels
Compact DIP-6 package for easy PCB mounting and integration

Out of stock

Get Notified When Available

Description

The GZP6857D201KPP is a digital pressure sensor based on a MEMS piezoresistive sensing element, providing a calibrated digital output via the I2C communication protocol. This design eliminates the need for external signal conditioning, offering a simplified and robust solution for pressure measurement.

Engineered for low-power operation, the sensor features a standby current of just 100nA, making it suitable for portable medical devices, smart appliances, and other battery-sensitive applications. Its operating temperature range of -30°C to +85°C ensures reliable performance in various environmental conditions.

Key Features

Digital I2C interface provides calibrated, noise-resistant pressure data
Ultra-low power consumption extends battery life in portable devices
MEMS piezoresistive technology ensures stable and repeatable measurements
Compact DIP-6 through-hole package facilitates straightforward PCB assembly
Wide operating temperature range supports use in diverse environments
RoHS compliant construction meets international environmental standards

Applications

Portable medical devices for non-invasive pressure monitoring
Smart home appliances requiring fluid or air pressure feedback
Battery-powered environmental data loggers and weather stations
Wearable fitness trackers for altitude or activity monitoring
Industrial control systems for low-pressure pneumatic sensing

Technical Specifications

Manufacturer Part Number	GZP6857D201KPP
Pressure Type	Gauge
Pressure Range	0 to 200 kPa
Sensor Type	MEMS Piezoresistive
Output Type	I2C Digital
Supply Voltage	3.3 V DC
Standby Current	100 nA
Accuracy	±2%
Operating Temperature	-30°C to +85°C
Interface	I2C
Package / Case	DIP-6
Weight	0.008 kg

Frequently Asked Questions

What is the communication protocol for this pressure sensor?

The Sencoch GZP6857D201KPP utilizes a digital I2C interface for communication. This allows for direct connection to microcontrollers like Arduino, ESP32, or Raspberry Pi using just two wires (SDA and SCL) for data and clock signals, simplifying integration and reducing pin count.

Can this sensor be powered from a 5V Arduino board?

No, the sensor requires a strict 3.3V DC power supply. Applying 5V will likely damage the device. When interfacing with a 5V microcontroller, you must use a logic level converter for the I2C lines and provide a regulated 3.3V source for the sensor's VCC pin.

What is the standby current and why is it important?

The sensor has an exceptionally low standby current of 100 nanoamperes (nA). This minimal power draw is critical for battery-powered and energy-harvesting applications, such as portable medical monitors or wireless sensor nodes, as it dramatically extends operational life between charges or battery replacements.

Is this sensor suitable for measuring liquid pressure?

The GZP6857D201KPP is a gauge pressure sensor with a portless DIP package, meaning the sensing element is exposed to the ambient environment via a small hole. It is designed for clean, dry, non-corrosive gas pressure measurement. Direct contact with liquids or corrosive media is not recommended and may damage the sensor.
