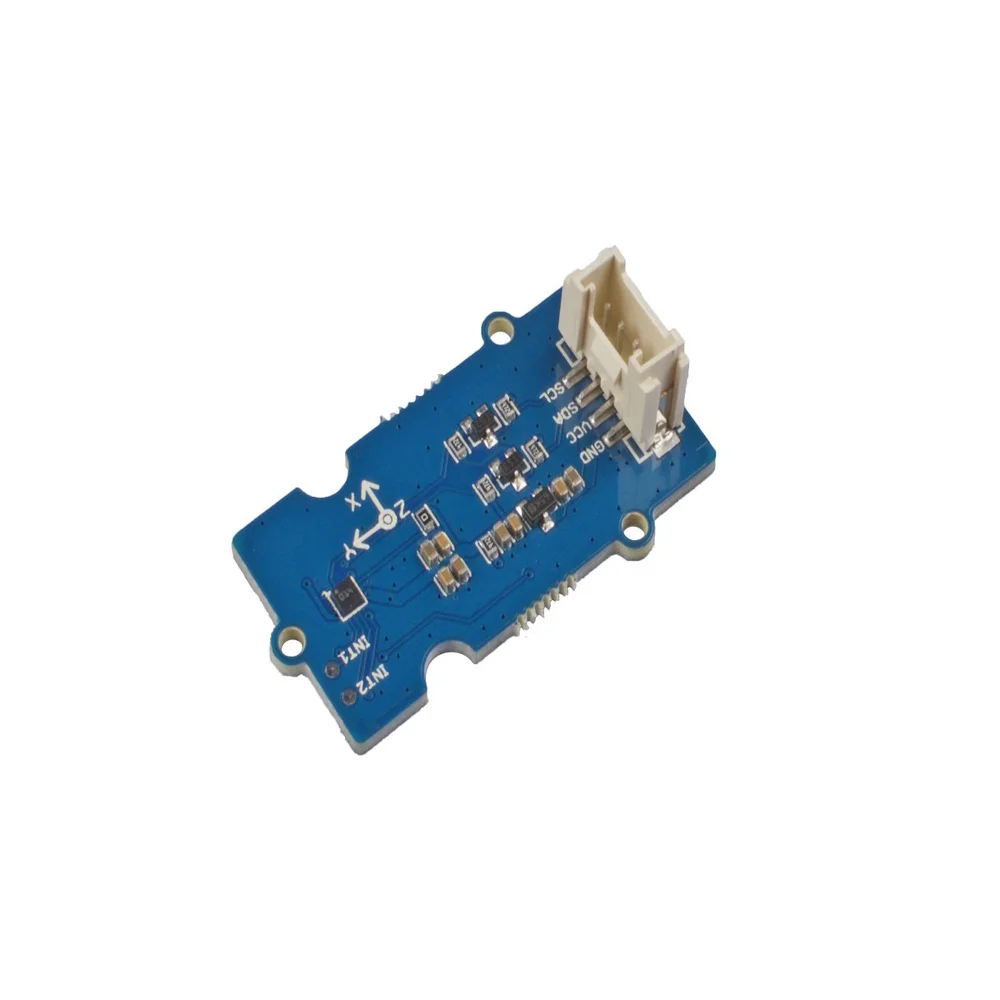

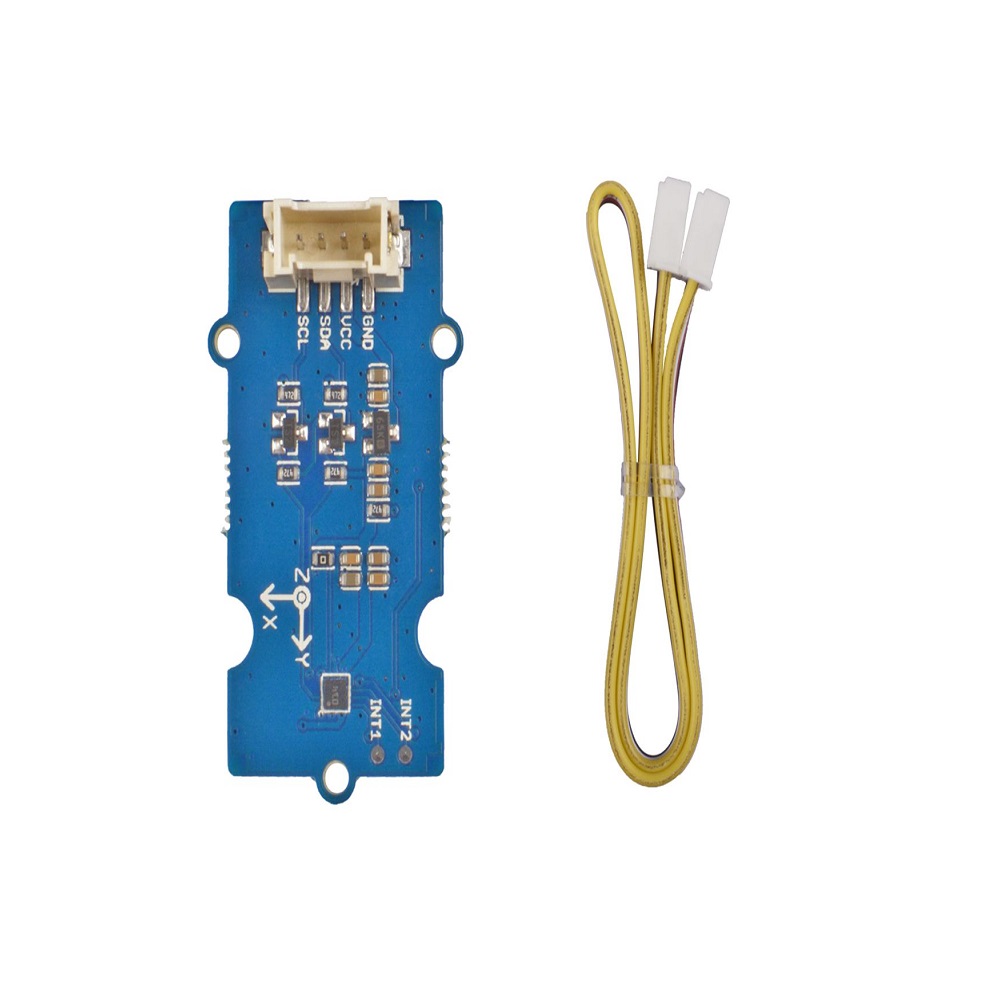

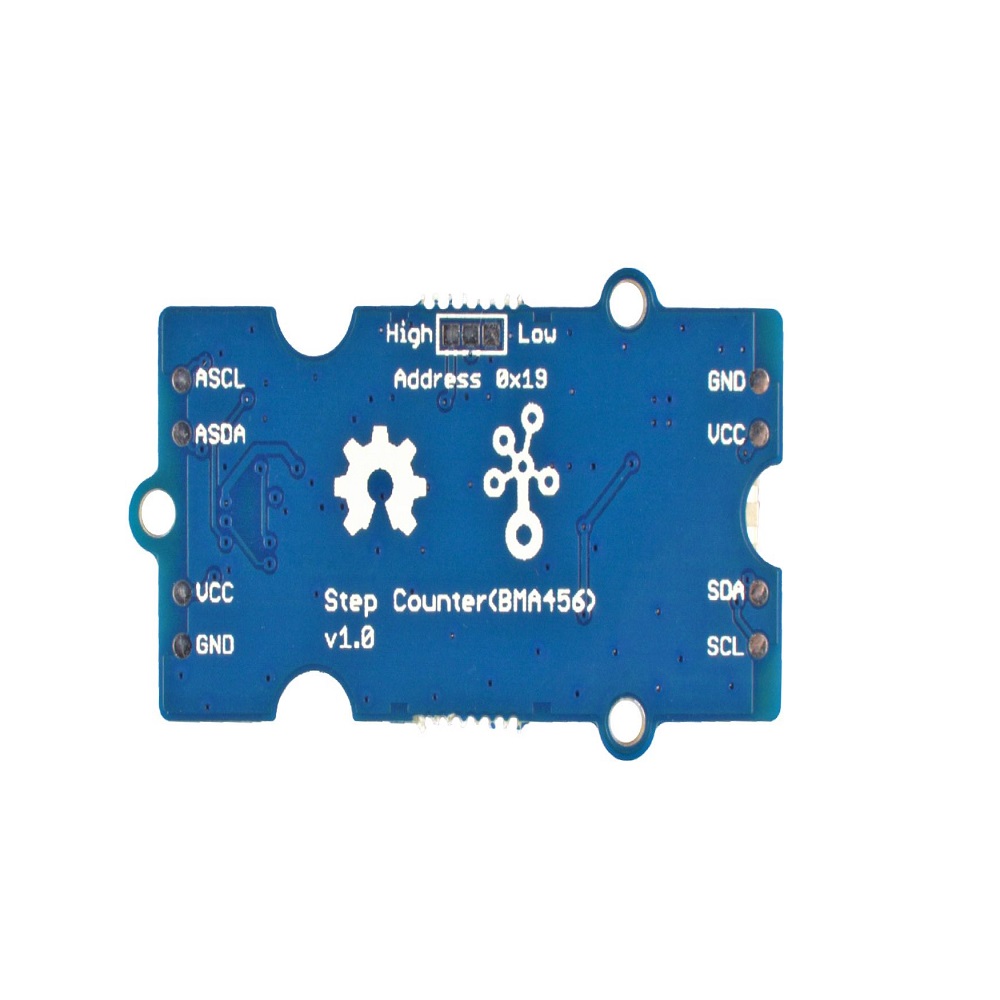

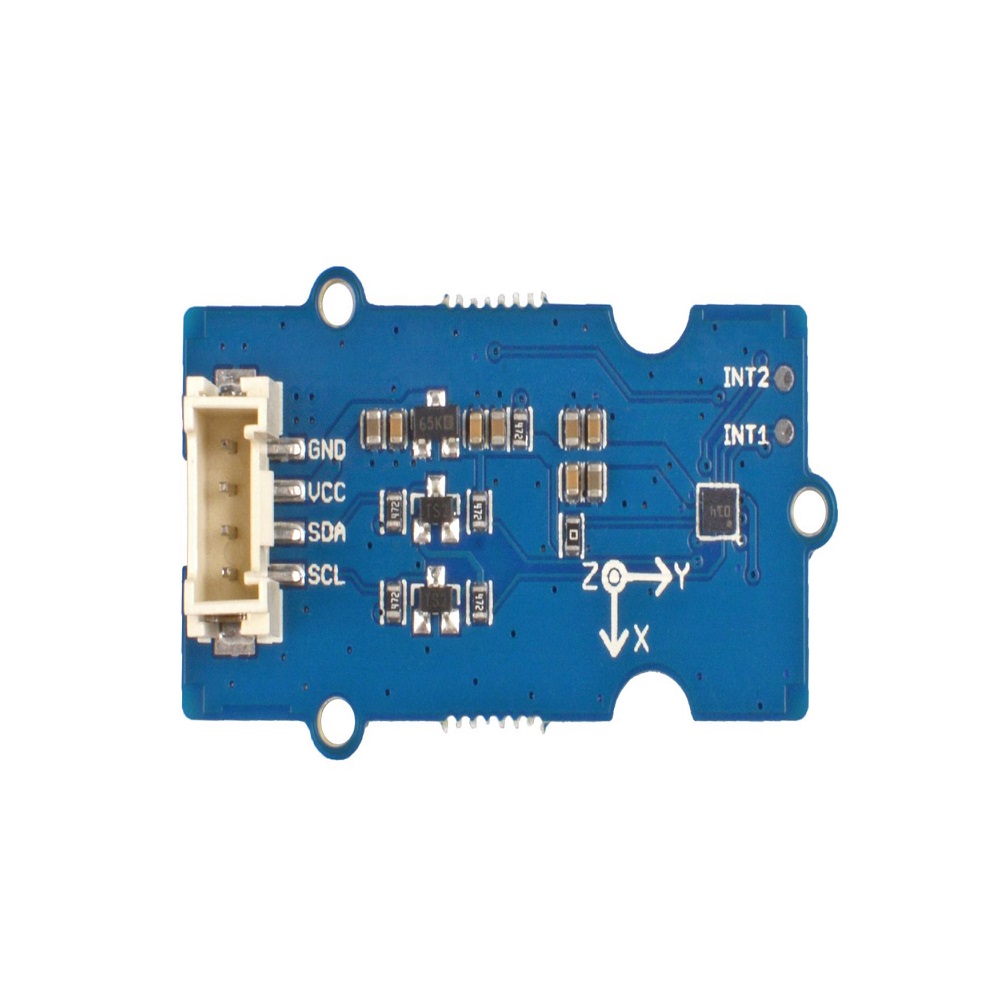

Seeed Studio Studio Grove BMA456 Step Counter Module - I2C Interface, ±2g/±4g/±8g/±16g Range
The Seeed Studio Studio Grove BMA456 Step Counter Module integrates Bosch’s BMA456 MEMS accelerometer into a plug-and-play Grove interface, providing precise triaxial acceleration data (±2g to ±16g) and a dedicated pedometer algorithm for wearable and IoT applications compatible with Arduino, Raspberry Pi, and other 3.3V/5V logic systems.
Features
- Bosch BMA456 MEMS accelerometer with configurable full-scale range (±2g, ±4g, ±8g, ±16g).
- Integrated step-counting algorithm for reliable fitness and activity tracking.
- Ultra-low-power operation with on-chip FIFO and interrupt for efficient power management.
- Standard Grove I2C interface (address 0x19 default, 0x18 optional) for easy system integration.
- Compact 40 x 20 x 10 mm module format with plug-and-play connectivity.
Out of stock
The Grove BMA456 Step Counter Module is a high-performance, low-g acceleration sensor module designed for motion detection and activity monitoring. It leverages the Bosch BMA456 accelerometer, a triaxial MEMS sensor known for its precision and stability, and incorporates Bosch’s proprietary algorithm to deliver accurate step counting directly on the module. This eliminates the need for complex software processing on the host microcontroller.
Engineered for wearable and portable electronics, the module operates from 3.3V to 5V DC, features an on-chip FIFO buffer for data management, and includes programmable interrupt functionality for event-driven designs. Its Grove connector system ensures rapid prototyping and integration with a wide range of development platforms, including Arduino, Raspberry Pi, and ESP32-based systems.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 4 × 2 × 1 cm |
