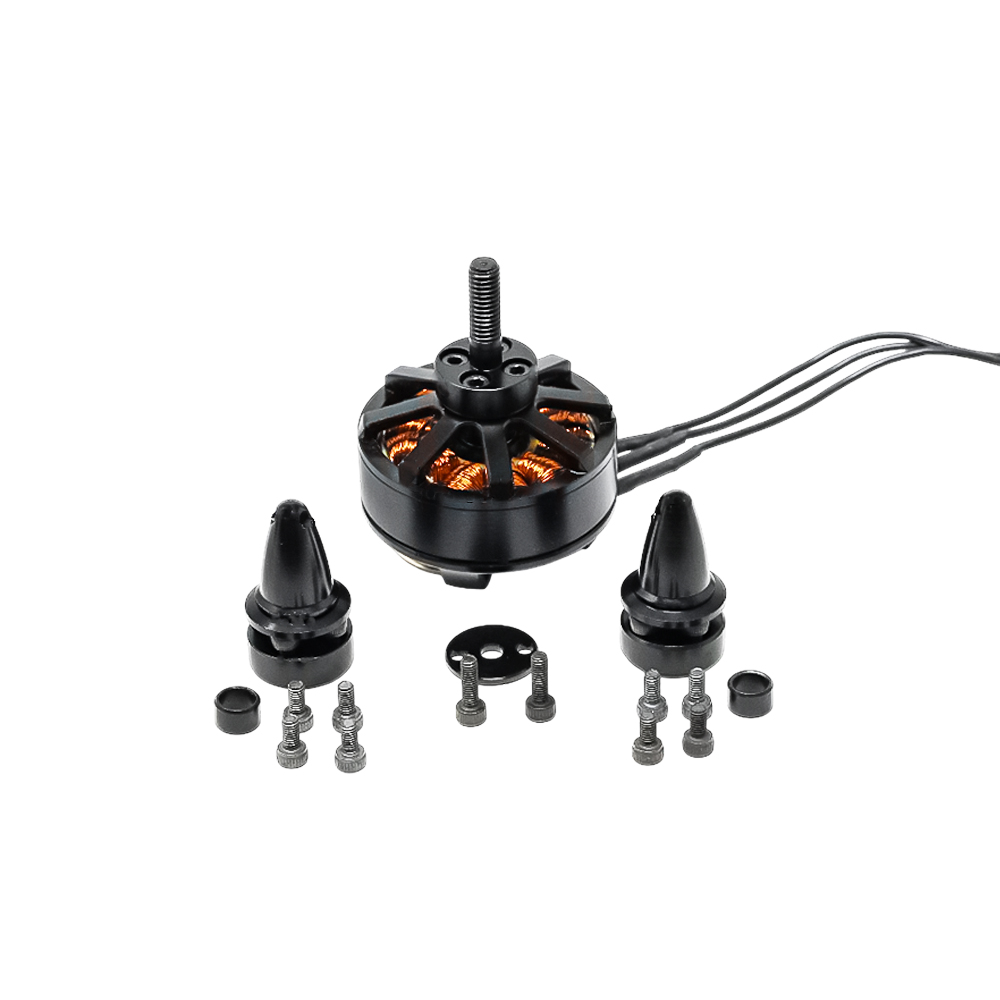

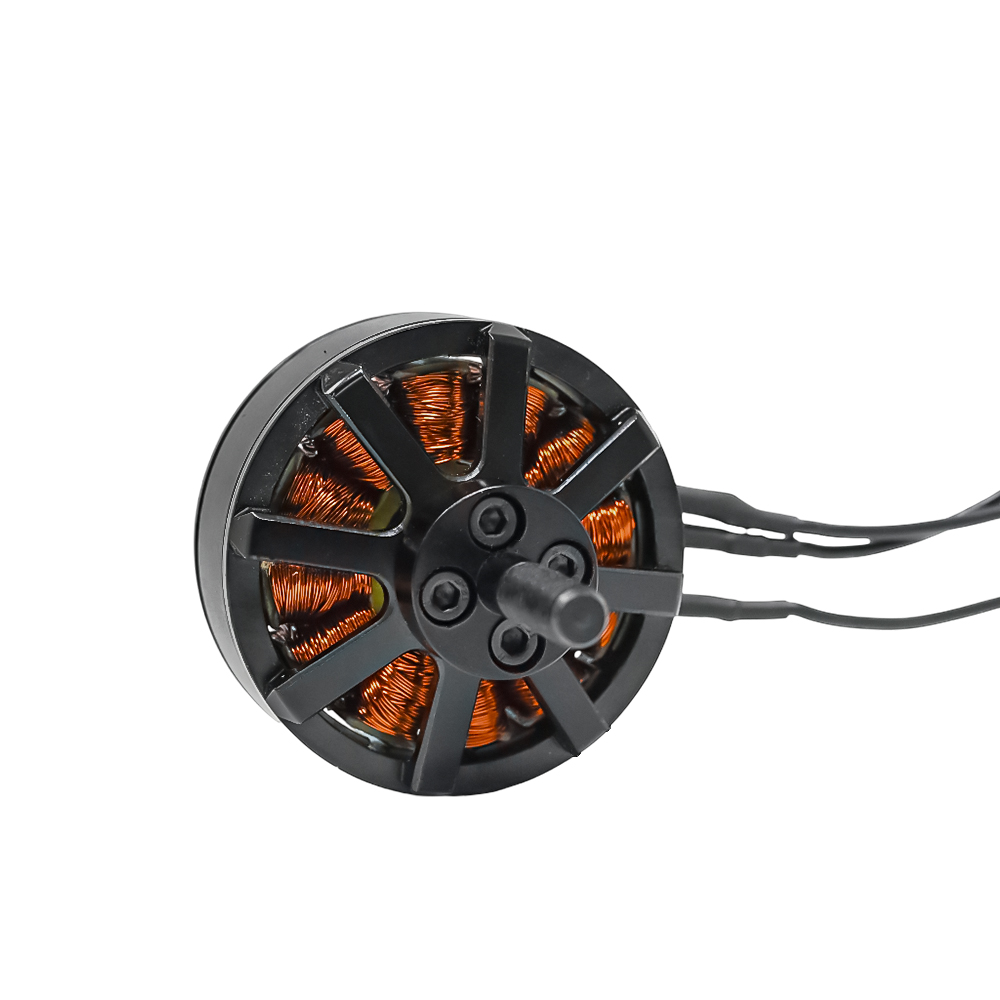

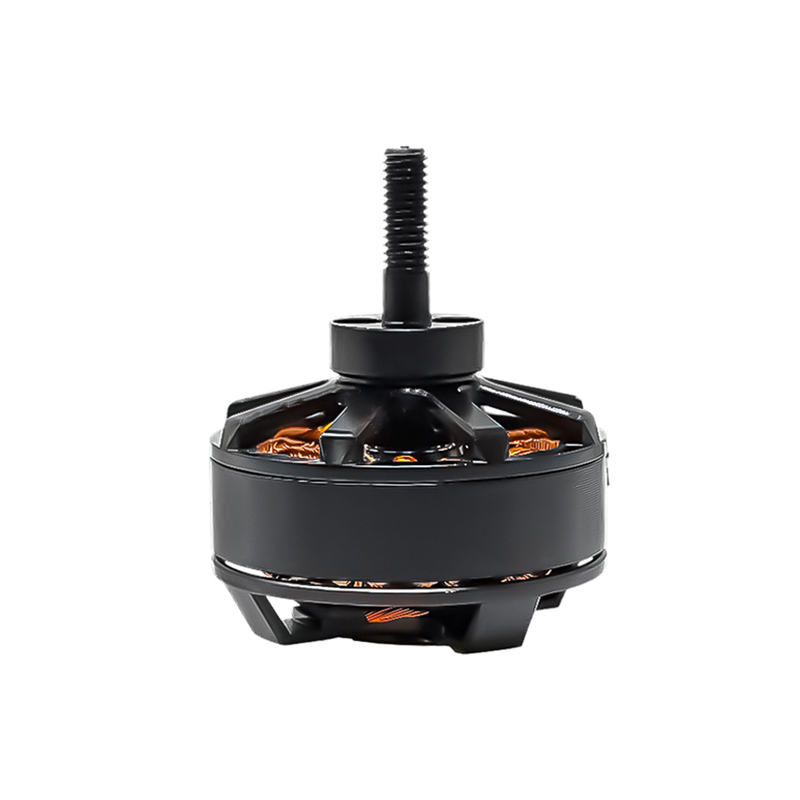

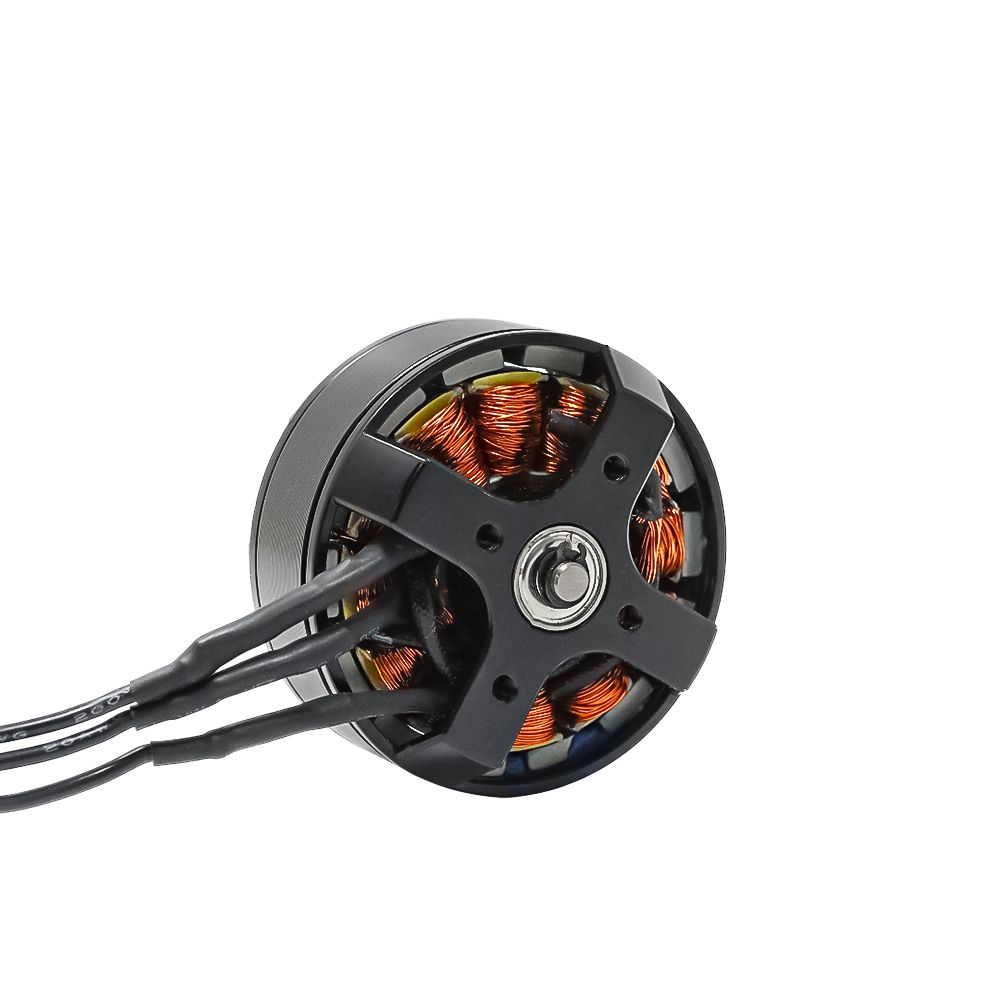

Scorpion MII-4010-400KV Brushless Motor
The Scorpion MII-4010-400KV is a high-performance brushless motor engineered for demanding multirotor applications, delivering 1480W continuous power and compatibility with 10S LiPo batteries for heavy-lift and high-endurance drone platforms.
Features
- High-power 40mm stator delivering 1480W continuous and 2070W peak power.
- 400KV rating optimized for 10S LiPo battery systems (37-42V).
- Robust 4114 bearing system and 10-turn Y-winding for durability and smooth operation.
- Supports propellers with 12mm mounting holes and 6mm or 8mm inner diameters.
- Compact and lightweight design weighing approximately 170g for optimized power-to-weight ratio.
Out of stock
The Scorpion MII-4010-400KV brushless motor is engineered for professional-grade multirotor platforms requiring substantial thrust and efficiency. Its 40mm stator diameter and 400KV winding are specifically tuned for high-voltage 10S LiPo operation, providing exceptional torque and power density for heavy-lift drones, industrial inspection platforms, and high-endurance aerial vehicles.
Constructed with a precision 10-turn Y-winding and a robust 4114 bearing system, the motor ensures reliable, low-vibration performance under continuous high-load conditions. The design prioritizes thermal management and mechanical integrity, supporting a maximum continuous current of 40A and peak bursts up to 56A for demanding flight maneuvers and payload operations.
Additional Information
| Weight | 0.17 kg |
|---|---|
| Dimensions | 4.88 × 4.88 cm |
