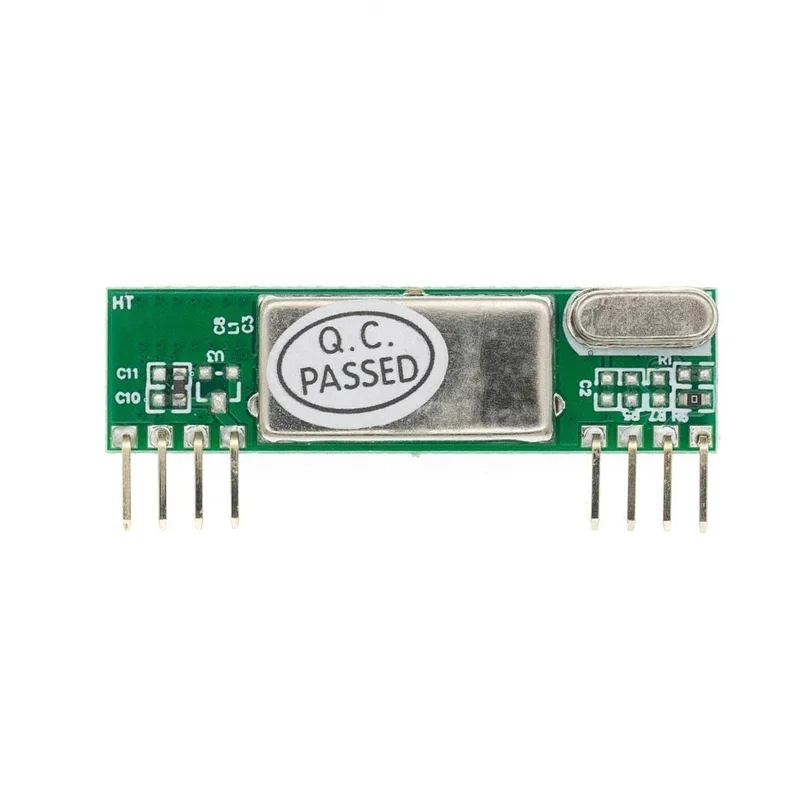

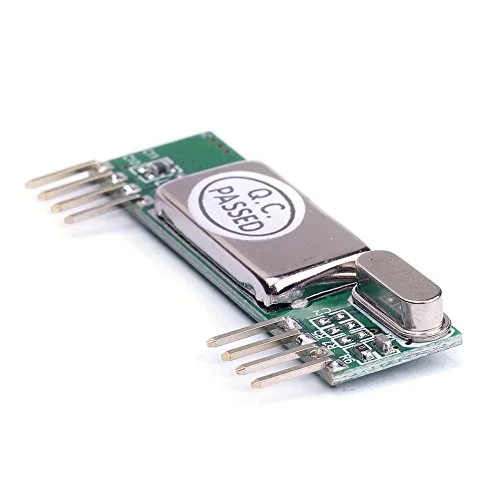

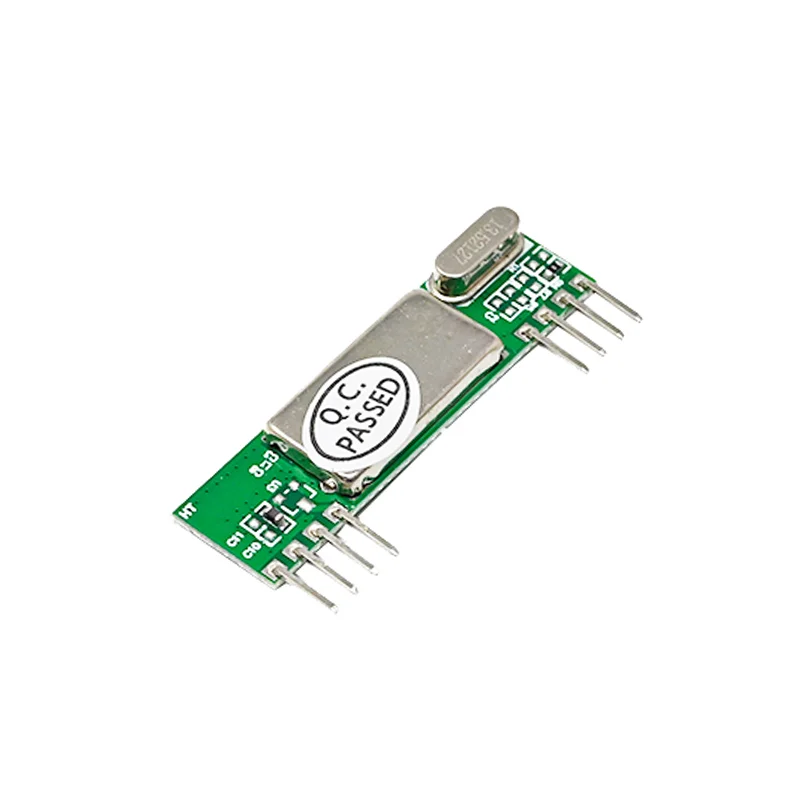

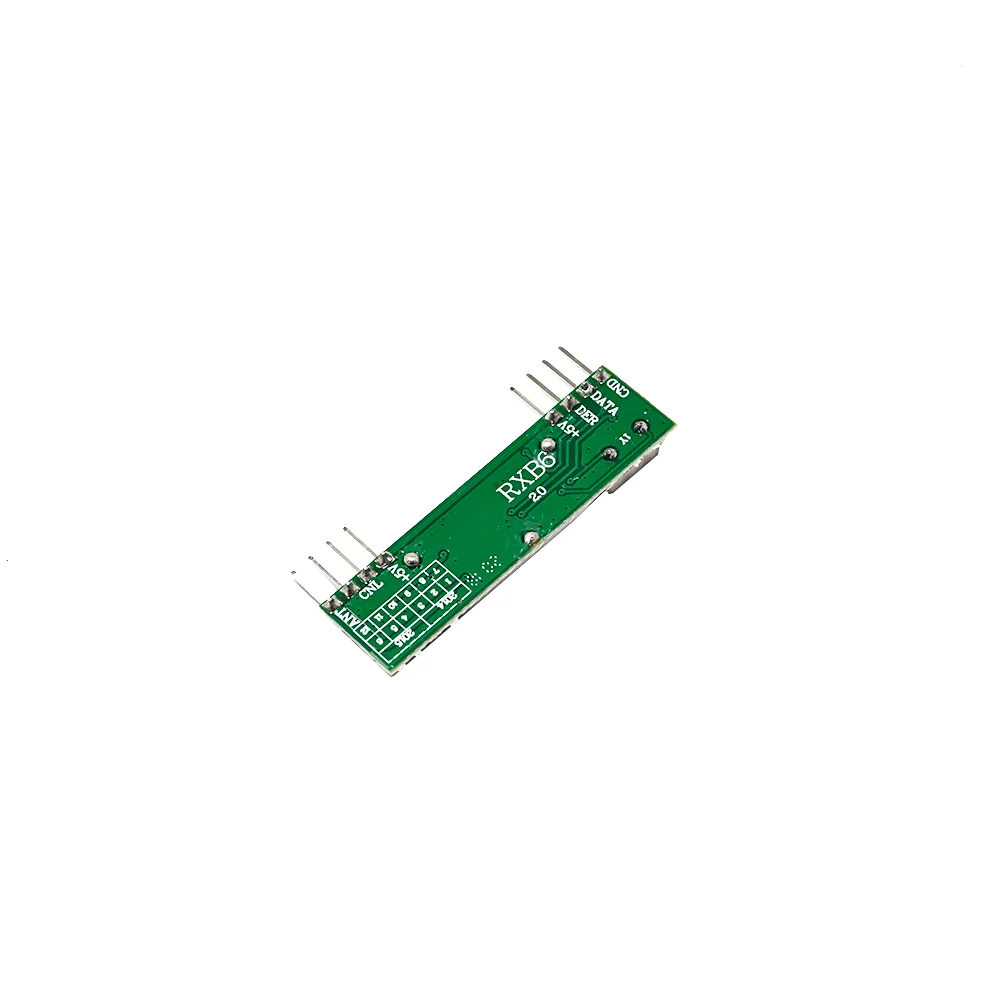

RXB6 433MHz Superheterodyne Wireless Receiver Module
The RXB6 is a 433.92MHz superheterodyne receiver module designed for low-power, one-way wireless data links. It interfaces directly with microcontrollers via digital data and analog RSSI pins, making it ideal for remote control and telemetry applications.
Features
- Superheterodyne architecture for superior sensitivity (-116dBm) and interference rejection.
- Ultra-low power consumption with Power Enable mode down to 50nA and active current of 6.0mA at 3.3V.
- Provides analog RSSI output for real-time signal strength monitoring and range optimization.
- Wide 3V to 5.5V supply range for compatibility with 3.3V and 5V microcontroller systems.
- Industrial-grade operating temperature from -40°C to +85°C for harsh environment deployment.
Out of stock
The RXB6 433MHz Superheterodyne Wireless Receiver Module is a dedicated RF front-end for robust, long-range one-way communication. Its superheterodyne design offers excellent selectivity and spurious radiation suppression, simplifying compliance with CE/FCC certifications. The module outputs a clean digital data signal alongside an analog RSSI pin, enabling microcontrollers to not only decode transmissions but also assess link quality.
Engineered for low-power IoT and remote control systems, it features a deep sleep mode with nanoampere-level current draw, dramatically extending battery life in periodic sensing applications. The compact form factor allows for easy integration into breadboards and custom PCBs, facilitating rapid prototyping of wireless security alarms, industrial controllers, and simple telemetry networks.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 4.3 × 1.7 cm |
