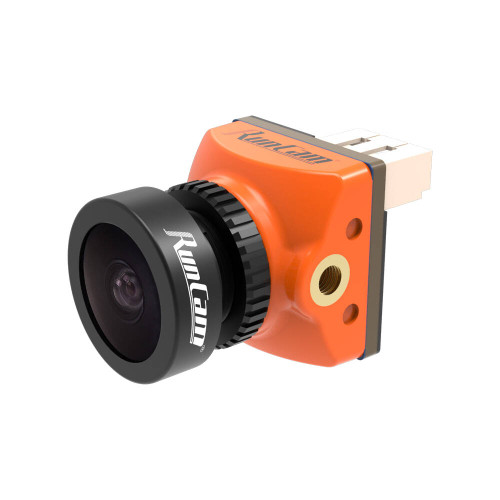

RunCam Racer Nano 700TVL FPV Camera 2.1mm Lens
The RunCam Racer Nano is a 14x14mm ultra-compact FPV camera featuring a 700TVL Super WDR CMOS sensor and a 2.1mm lens for a wide 160° field of view. It operates on 3.3-5.5V, offers 6ms low latency, and includes an integrated OSD for one-touch scene configuration.
Features
- Ultra-Compact 14x14mm Nano-Size Form Factor
- 700TVL Super WDR CMOS Sensor for High Dynamic Range
- Low 6ms Latency for Real-Time FPV Racing
- Integrated OSD with One-Touch Scene Settings (Personal/Lightrax/Darkness)
- Wide 160° Field of View via 2.1mm Lens
Out of stock
The RunCam Racer Nano sets a benchmark for miniaturized FPV camera performance, packing a 700TVL Super WDR CMOS sensor into a footprint smaller than standard micro cameras. Its advanced image processing delivers exceptional clarity and contrast in challenging lighting conditions, from bright skies to shadowed areas, making it ideal for competitive racing and technical freestyle.
Engineered for seamless integration, the camera supports both NTSC and PAL signal systems with switchable 4:3 and 16:9 screen formats. The built-in OSD allows for quick adjustments to image settings, mirroring, and gesture/joystick control without requiring external configuration tools. Its durable ABS housing and lightweight 3.5g design ensure reliability without adding significant mass to micro and nano drone builds.
Additional Information
| Weight | 0.0035 kg |
|---|---|
| Dimensions | 1.4 × 1.4 × 1.6 cm |
