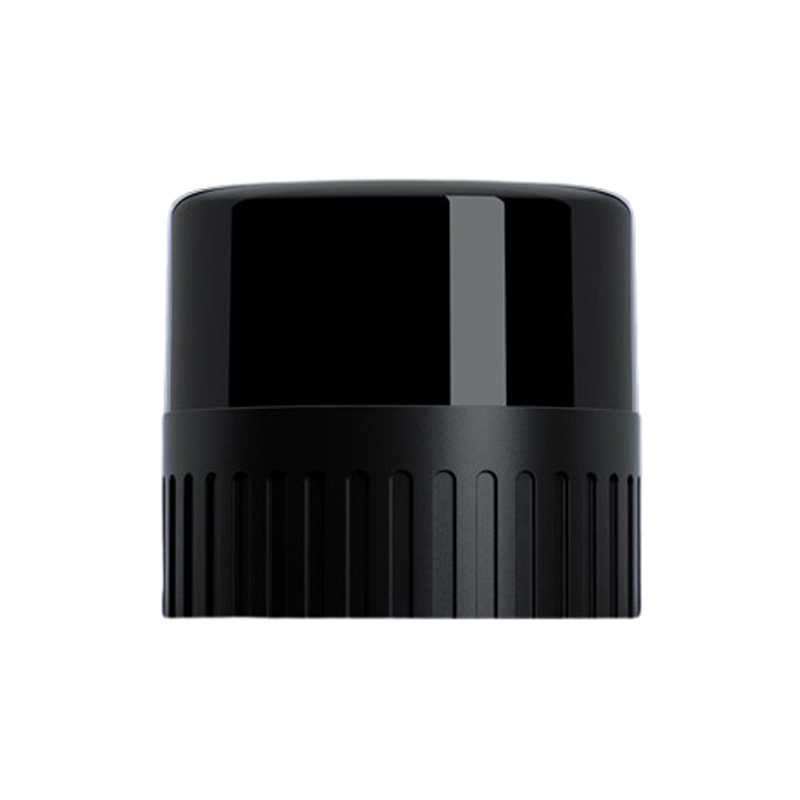

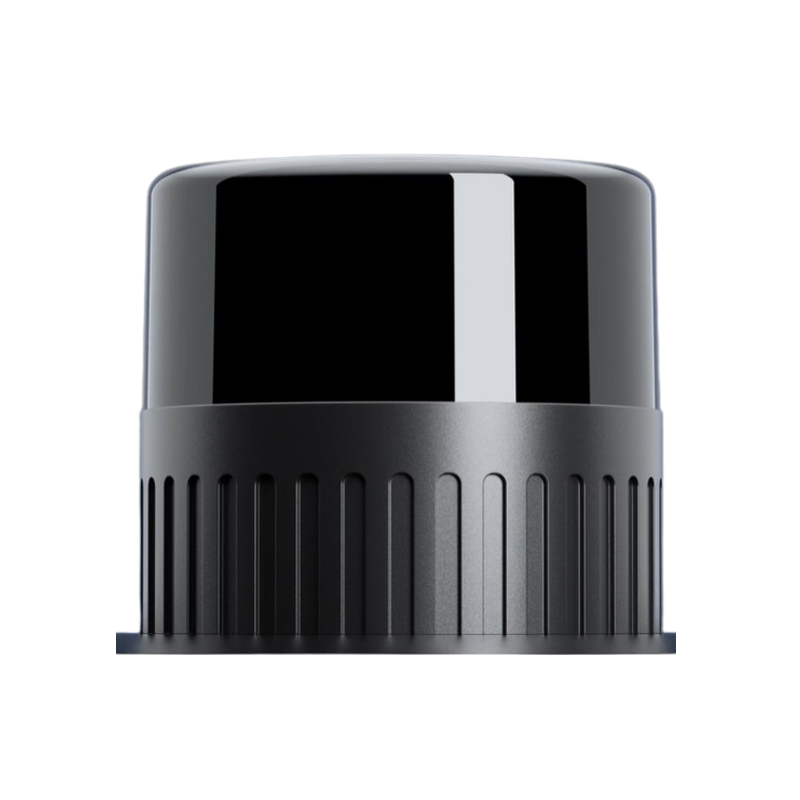

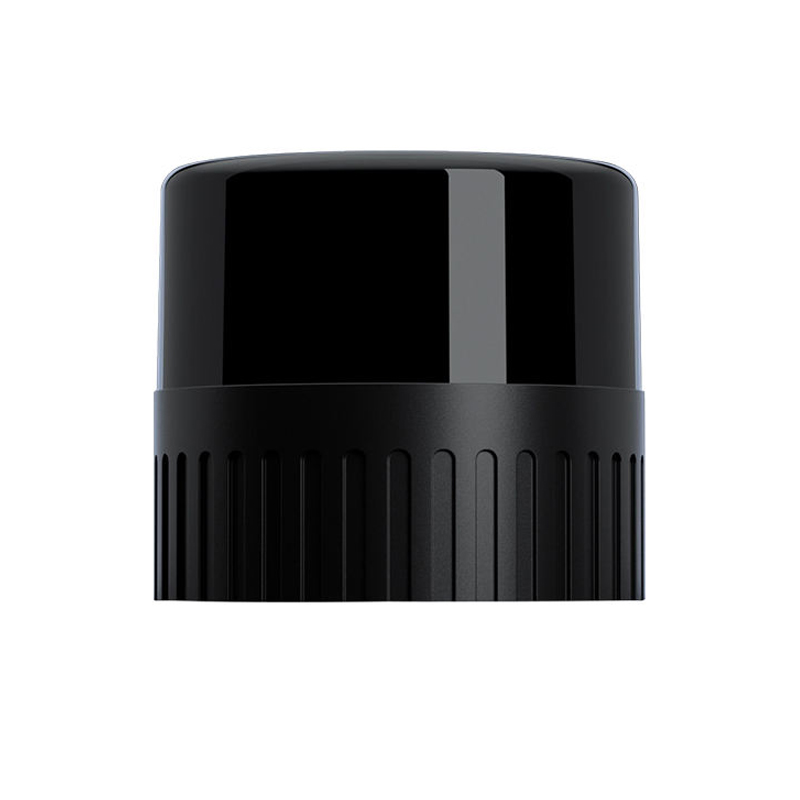

RoboSense Fairy Mid-Range Digital LiDAR Sensor 96-Channel, Range:150m
The RoboSense Fairy Mid-Range Digital LiDAR Sensor is a 96-channel, 150m range 3D scanner designed for autonomous navigation and mapping in robotics, drones, and AGVs. It delivers 0.5 cm precision and a dense 1.37M points/sec point cloud, operating reliably in all lighting and weather conditions.
Features
- 0.5 cm ultra-high precision for reliable mapping and obstacle avoidance.
- 96-beam digital architecture generating up to 1.37 million points per second.
- 150m maximum detection range with a 360°×32° field of view.
- Active illumination ensures stable performance in night, rain, fog, and strong sunlight.
- Compact, lightweight design (φ75×70 mm, <350g) with integrated IMU for navigation stability.
Out of stock
The RoboSense Fairy Digital LiDAR Sensor employs a chip-based digital transceiver architecture, utilizing VCSEL and SPAD-SoC technology for cleaner, more accurate point cloud generation. This active illumination method provides ambient-light-independent performance, ensuring reliable 3D perception in challenging environmental conditions such as direct sunlight, darkness, rain, and fog.
With a 360° horizontal and 32° vertical field of view, it offers comprehensive environmental coverage. The integrated IMU enhances localization accuracy and navigation stability for dynamic robotic platforms. Its compact form factor and low weight facilitate seamless integration into space-constrained autonomous systems.
Additional Information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 14 × 11 × 11 cm |
