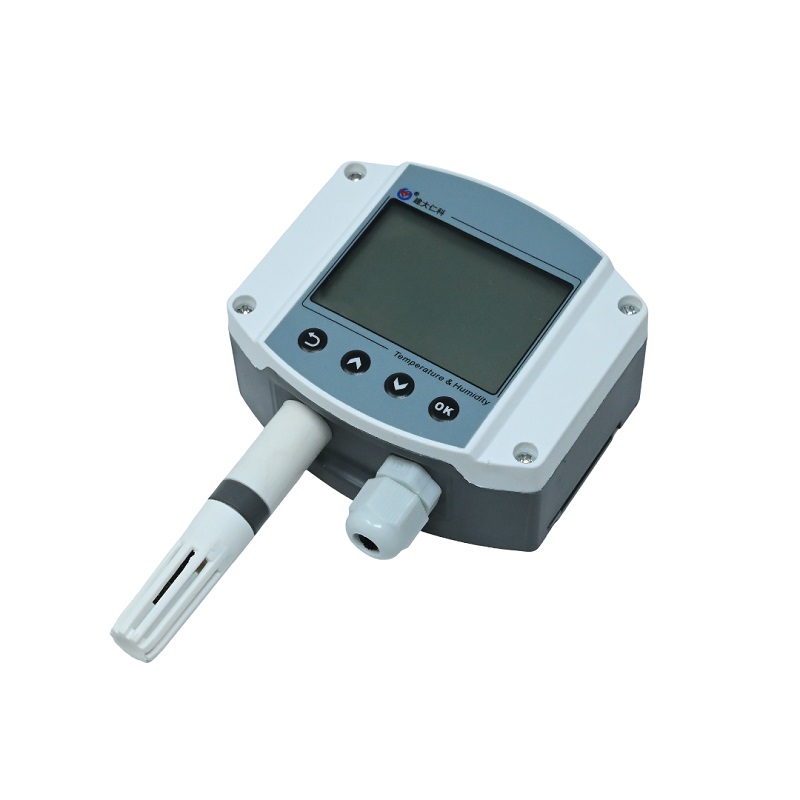

Renke RS-WS-N01-2D-LCD-EX Temperature & Humidity Sensor with LCD Display - RS485/4-20mA/0-10V Output, IP65
Renke RS-WS-N01-2D-LCD-EX Temperature & Humidity Sensor with LCD Display - RS485/4-20mA/0-10V Output, IP65 - Image 2
Renke RS-WS-N01-2D-LCD-EX Temperature & Humidity Sensor with LCD Display - RS485/4-20mA/0-10V Output, IP65 - Image 3
SKU: SENS-3360
📋 GST Invoice Available

Renke RS-WS-N01-2D-LCD-EX Temperature & Humidity Sensor with LCD Display - RS485/4-20mA/0-10V Output, IP65

₹4,189.00 (Inclusive of all taxes)
Out of Stock

The Renke RS-WS-N01-2D-LCD-EX is a high-precision temperature and humidity sensor module featuring an integrated LCD display for local readout. It offers versatile RS485, 4-20mA, 0-5V, and 0-10V outputs for seamless integration with industrial PLCs, building automation systems, and data loggers.

Features

  • High-precision sensing with ±0.5°C temperature and ±3% RH humidity accuracy.
  • Integrated LCD display for real-time local monitoring of temperature and humidity.
  • Multi-interface output options: RS485 Modbus, 4-20mA, 0-5V, and 0-10V analog.
  • IP65-rated waterproof and dustproof housing for reliable operation in harsh environments.
  • Wide operating range from -40°C to +80°C and 0% to 100% relative humidity.

Out of stock

Description

The Renke RS-WS-N01-2D-LCD-EX employs advanced sensing elements to deliver stable and accurate environmental measurements. Its robust IP65 enclosure protects the internal electronics from dust, moisture, and incidental water jets, ensuring long-term reliability in demanding industrial, commercial, and agricultural settings.

The sensor provides flexible connectivity through its selectable output interfaces, allowing for direct analog signal integration or digital communication via the RS485 Modbus protocol. This enables remote data monitoring and centralized control when connected to SCADA systems, IoT gateways, or dedicated monitoring software. The onboard LCD offers immediate visual confirmation of conditions, supporting both installation verification and local oversight.

Key Features

  • High-precision digital temperature and humidity sensor with excellent long-term stability.
  • Clear, backlit LCD display for at-a-glance reading of real-time values.
  • Versatile output configuration supports RS485 Modbus RTU, 4-20mA current loop, 0-5V, and 0-10V voltage signals.
  • IP65-rated polycarbonate housing provides robust protection against dust and water ingress.
  • Wide operating temperature range from -40°C to +80°C for extreme environment compatibility.
  • Fast response time: ≤25 seconds for temperature and ≤8 seconds for humidity (at 1 m/s airflow).

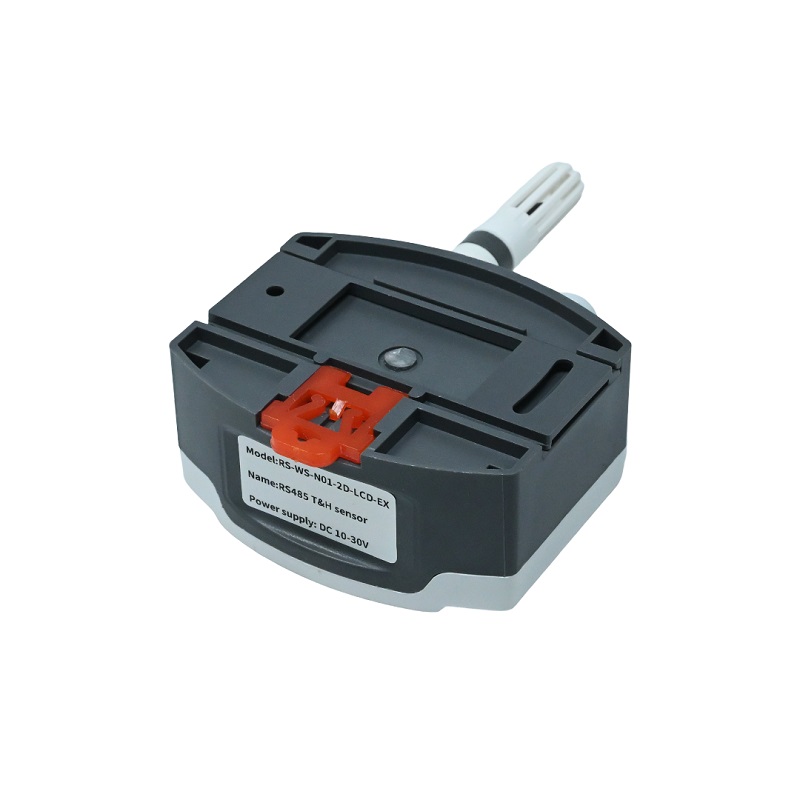

  • DIN-rail or wall-mountable design for flexible and secure installation.
  • Compatible with free manufacturer software for remote PC and mobile application monitoring.

Applications

  • Industrial facility and warehouse environmental monitoring for process control and worker safety.
  • HVAC system feedback and control in commercial buildings and data centers.
  • Precision climate monitoring in greenhouses, agricultural storage, and mushroom farms.
  • Preservation environment monitoring for museums, archives, and libraries.
  • Remote site monitoring via IoT networks for equipment rooms and telecom shelters.

Technical Specifications

Model NumberRS-WS-N01-2D-LCD-EX
Measurement ParametersTemperature & Relative Humidity
Temperature Range-40°C to +80°C
Temperature Accuracy±0.5°C (@25°C, built-in), ±0.4°C (external)
Humidity Range0% RH to 100% RH
Humidity Accuracy±3% RH (@60% RH, 25°C, built-in), ±2% RH (external)
Resolution0.1°C, 0.1% RH
Repeatability≤2%
Response TimeTemperature: ≤25 s; Humidity: ≤8 s (1 m/s airflow)
Output InterfacesRS485 (Modbus RTU), 4-20mA, 0-5V, 0-10V (Selectable)
Power SupplyDC 10–30 V
Ingress ProtectionIP65
Dimensions (L x W)140 mm x 87 mm
Weight127 g
InstallationWall Mount or DIN-Rail Mount

Frequently Asked Questions

What are the available output signals from this sensor?

The Renke RS-WS-N01-2D-LCD-EX provides multiple configurable output options to suit different control systems. You can select between digital RS485 communication using the Modbus RTU protocol, or analog outputs including a 4-20mA current loop, 0-5V DC, or 0-10V DC voltage signal. The specific output is typically configured via internal DIP switches or wiring before installation.

What is the power supply requirement for this temperature and humidity sensor?

This sensor requires a DC power supply within the range of 10 to 30 volts. This wide input voltage range makes it compatible with common industrial 12V DC or 24V DC power systems, as well as standard AC-to-DC adapters. Ensure the power source can provide sufficient current for the selected output type, especially when driving a 4-20mA loop.

How is the sensor installed and what are its environmental limits?

The sensor is designed for DIN-rail mounting or direct wall mounting using the provided screw set. Its IP65-rated housing protects it from dust and low-pressure water jets, allowing use in damp or dusty indoor environments. It operates reliably across an extended temperature range from -40°C to +80°C, making it suitable for unheated warehouses, industrial freezers, and outdoor weather-protected enclosures.

Can I monitor the data remotely with this sensor?

Yes, remote monitoring is fully supported. When configured for RS485 Modbus output, the sensor can be connected to a Modbus master device, such as a PLC, data logger, or IoT gateway. This data can then be transmitted to monitoring software or cloud platforms. Renke also offers free PC and mobile applications that can visualize data when used with compatible data acquisition hardware.

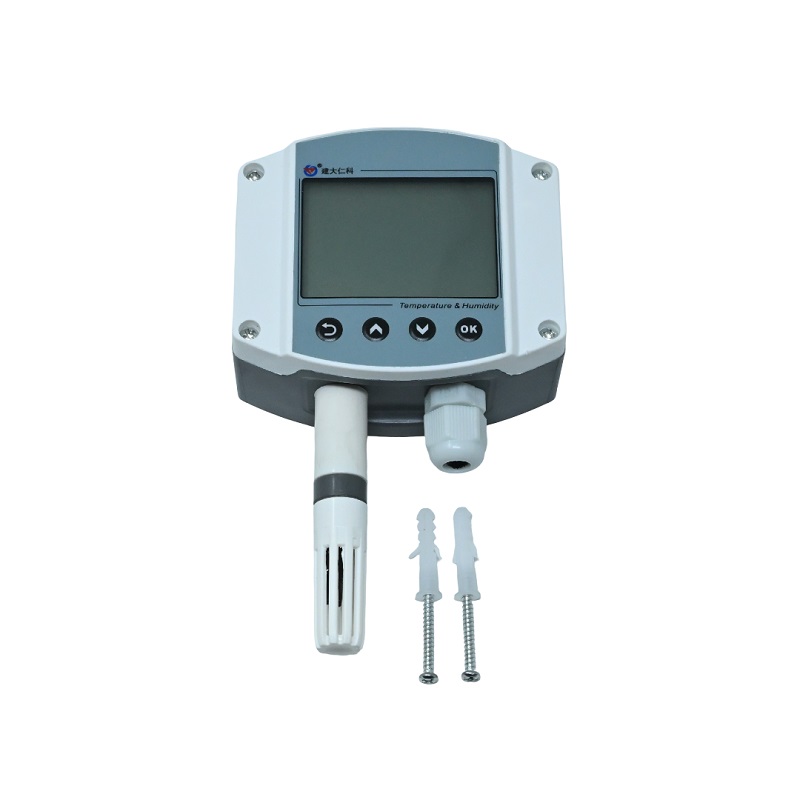

Package Includes

  • 1 x Renke RS-WS-N01-2D-LCD-EX Temperature & Humidity Sensor
  • 1 x Screw Set for mounting

Additional Information

Weight 0.127 kg
Dimensions 14 × 8.7 cm
