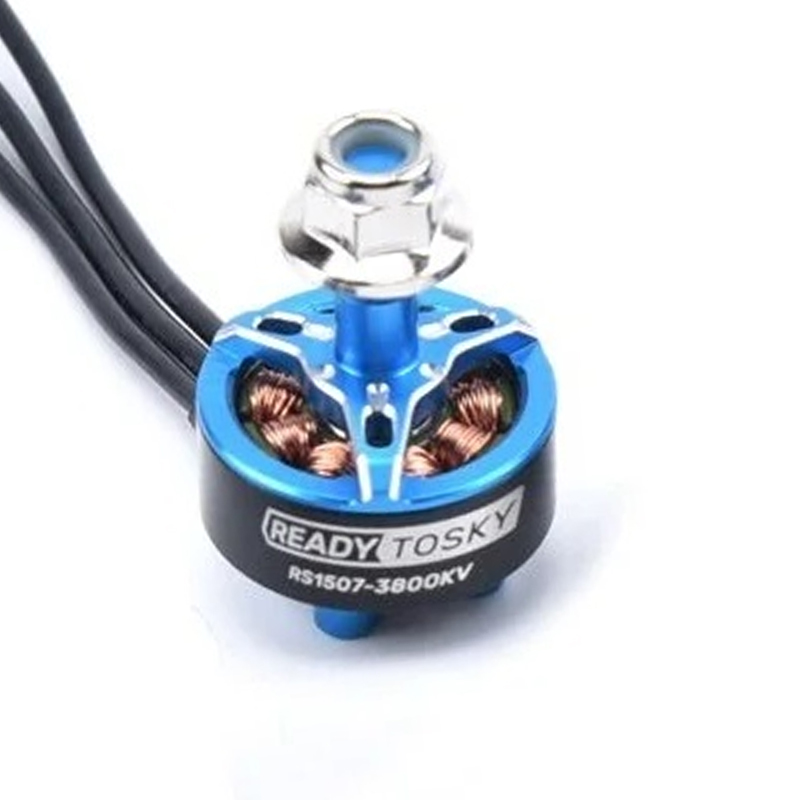

ReadyToSky RS1507 3800KV CCW Brushless Motor - Sliver Cap

Name: ReadyToSky RS1507 3800KV CCW Brushless Motor - Sliver Cap
Brand: ReadyToSky
SKU: DRFC-2488
Price: 635.00 INR
Availability: OutOfStock

₹635.00 (Inclusive of all taxes)

Out of Stock

The ReadyToSky RS1507 3800KV brushless motor is a 3-4S LiPo compatible motor engineered for high-performance CineWhoop and small FPV drone builds, delivering 270W of continuous power for responsive, efficient flight.

Features

3800KV rating optimized for 3-4S LiPo battery operation.
RS1507 stator size (15mm diameter x 7mm height) for a balance of torque and efficiency.
Delivers up to 270W maximum continuous power with a 17A current draw.
Features a unibell design with a 3mm shaft diameter for durability.
Standard 9N12P magnetic configuration for smooth, reliable operation.

Out of stock

Get Notified When Available

Description

The ReadyToSky RS1507 3800KV brushless motor is engineered for pilots seeking reliable performance in compact FPV platforms. Its 1507 stator dimensions provide an optimal torque-to-weight ratio, making it a prime choice for CineWhoop and light freestyle builds where precise throttle control and efficiency are critical.

Built with a high-grade unibell design and curved magnet structure, the motor operates with reduced vibration and noise, contributing to smoother video footage and extended component life. The electroplated finish enhances durability against environmental wear, ensuring consistent performance across numerous flight cycles.

Key Features

Optimized Stator Design: The 1507 (15x7mm) stator provides an excellent balance of power and efficiency for 3-4S applications.
High-Efficiency Magnets: The 9N12P curved magnet configuration minimizes cogging for ultra-smooth rotation and improved throttle response.
Robust Unibell Construction: A single-piece bell housing increases structural integrity and improves dynamic balance at high RPM.
Wide Compatibility: Features a standard bottom mounting pattern for easy installation on a vast array of micro and CineWhoop frames.
Durable Electroplating: The silver-cap finish offers enhanced corrosion resistance and a sleek, professional appearance.
Thermal Management: Designed to handle up to 270W of continuous power dissipation, maintaining stable temperatures during aggressive flight.

Applications

3-inch and 4-inch CineWhoop drones requiring smooth, quiet operation for cinematic footage.
Lightweight micro FPV freestyle and racing quads optimized for 3-4S power.
Compact DIY drone builds where a high KV motor is needed for direct-drive propeller setups.
Small-scale aerial photography platforms that benefit from efficient, responsive motors.

Technical Specifications

Motor KV	3800 KV
Stator Size	1507 (15mm diameter x 7mm height)
Configuration	9N12P
Shaft Diameter	3 mm
Compatible Battery	3S to 4S LiPo
Max Continuous Current	17 A
Max Continuous Power	270 W
Idle Current (Io)	< 1.41 A
Rotation (as supplied)	CCW (Counter-Clockwise)

Frequently Asked Questions

What size propellers are compatible with the ReadyToSky RS1507 3800KV motor?

This motor is ideally paired with 3-inch or 4-inch tri-blade or bi-blade propellers commonly used on CineWhoop and micro FPV frames. The high KV rating provides excellent thrust with smaller, lighter props on 3-4S LiPo batteries. Always check your frame clearance and amp draw with a specific propeller using a bench test.

Is this motor suitable for 4S LiPo battery use?

Yes, the ReadyToSky RS1507 3800KV motor is explicitly rated for 3S to 4S LiPo batteries. On 4S, it will produce significantly higher RPM and thrust. Ensure your Electronic Speed Controller (ESC) is also rated for 4S and can handle the increased current draw, which can reach up to 17A continuous per motor under load.

What does the CCW rotation mean, and how do I set up my drone?

CCW (Counter-Clockwise) indicates the direction this specific motor is wound and should spin when viewed from above. For a standard quadcopter, you need two CW and two CCW motors. Pair this CCW motor with a CW motor on the opposite diagonal arm and configure your flight controller software (Betaflight/INAV) accordingly for the standard 'props-out' or 'props-in' rotation schema.

What is the mounting hole pattern for this RS1507 motor?

The ReadyToSky RS1507 features a standard M2 mounting hole pattern common to micro motors. The exact spacing is typically 12mm x 12mm or 16mm x 16mm; please verify with your frame's specifications. The motor uses M2 screws, which are usually included with most frames but not with the motor itself.
