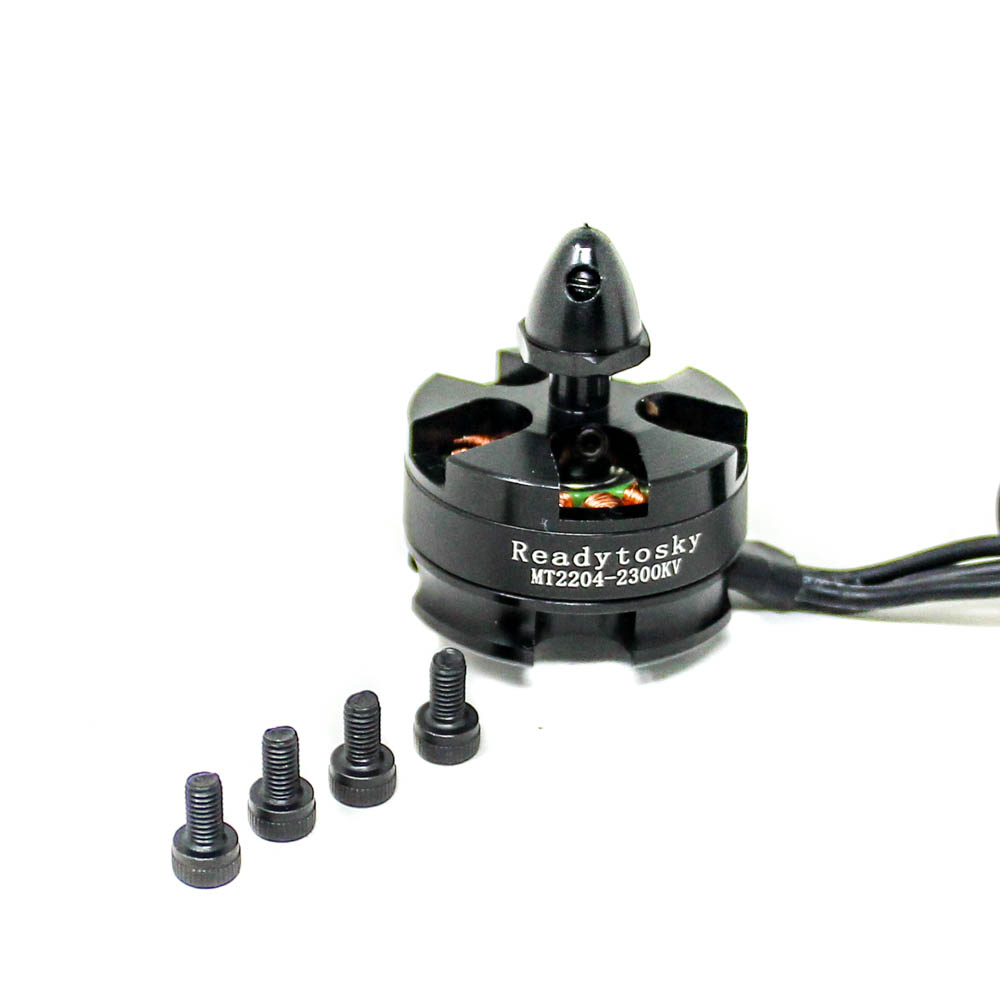

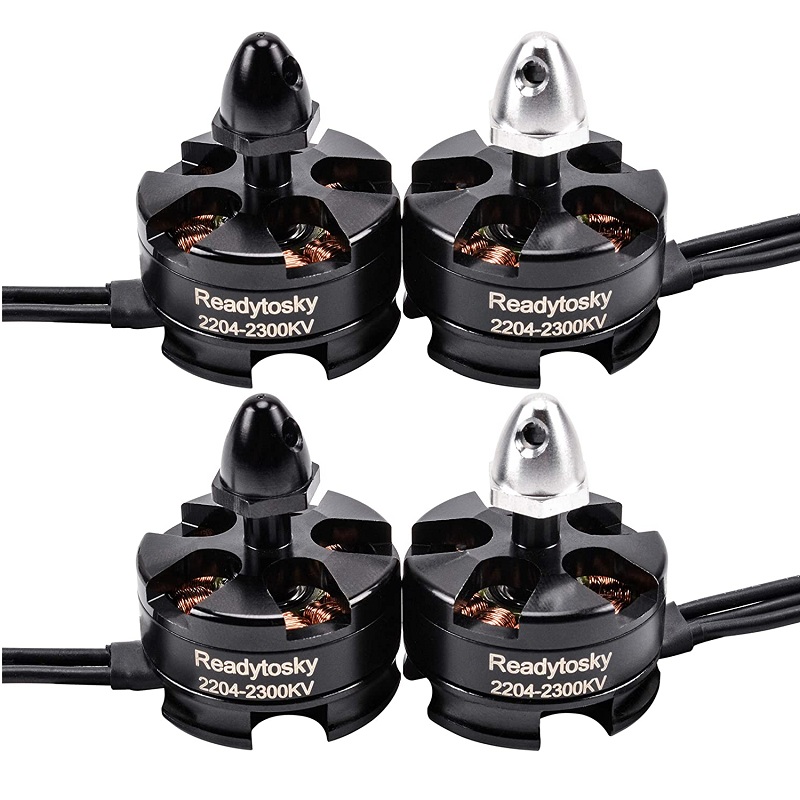

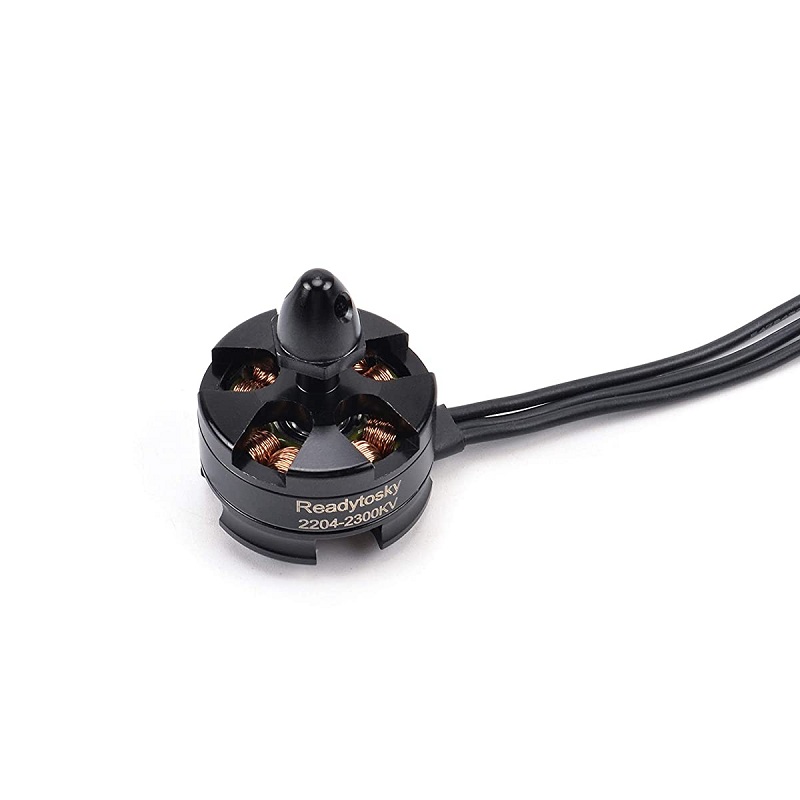

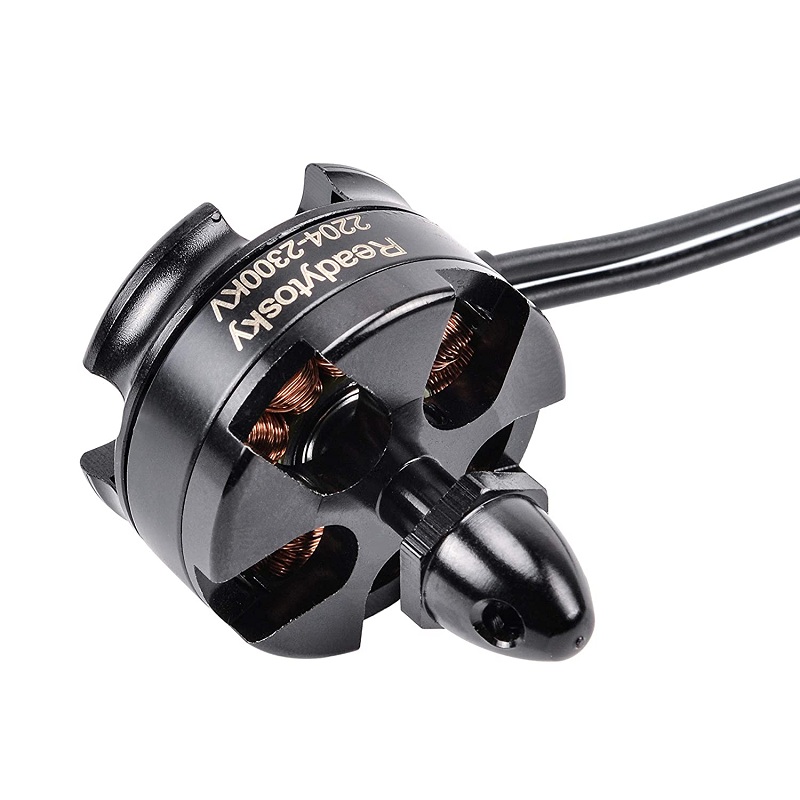

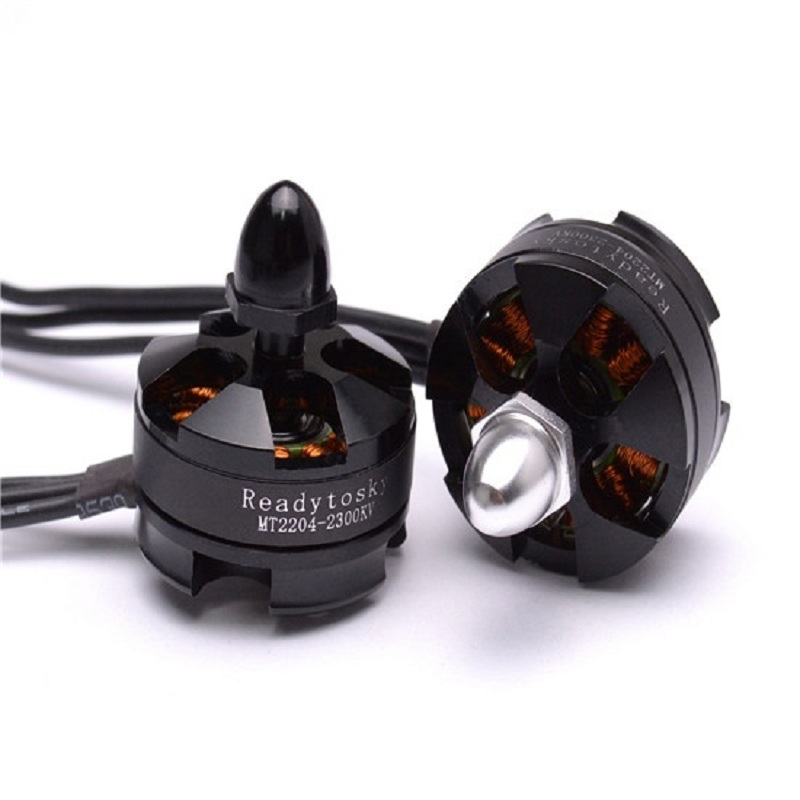

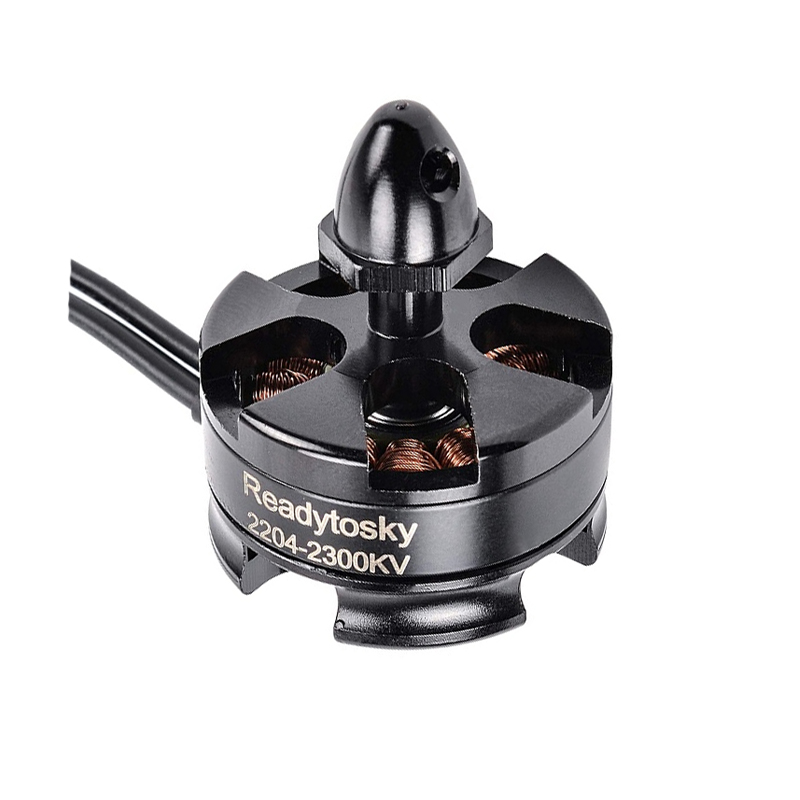

ReadyToSky MT2204 2300KV CW Brushless Motor - Black
The ReadyToSky MT2204 2300KV CW brushless motor is engineered for 5-inch FPV racing and freestyle drones, optimized for 2S-3S LiPo battery systems. It delivers high thrust-to-weight performance with precision-balanced components for smooth, responsive flight.
Features
- 2300KV rating optimized for 5-inch propellers on 2S-3S LiPo power.
- High-thrust design capable of 440 grams of maximum thrust per motor.
- Features high-quality Japanese bearings and N45SH neodymium magnets for durability.
- Precision-balanced rotor assembly (0.005g or better) for reduced vibration.
- Chamfered lower frame design for easier installation on compact drone frames.
Out of stock
The ReadyToSky MT2204 2304-series brushless motor is built for pilots demanding reliable performance in 5-inch FPV racing and freestyle quadcopters. Its 2300KV windings are specifically tuned for 2S to 3S LiPo voltage ranges, providing an optimal balance of torque and RPM for aggressive maneuvers.
Constructed with a 12N14P stator configuration, 0.2mm laminations, and 180-degree oxygen-free copper windings, the motor minimizes electrical losses and heat generation. The 5mm hardened steel shaft and chamfered base plate ensure secure mounting and compatibility with a wide range of frame designs, offering ample clearance for mounting hardware.
Additional Information
| Weight | 0.06 kg |
|---|---|

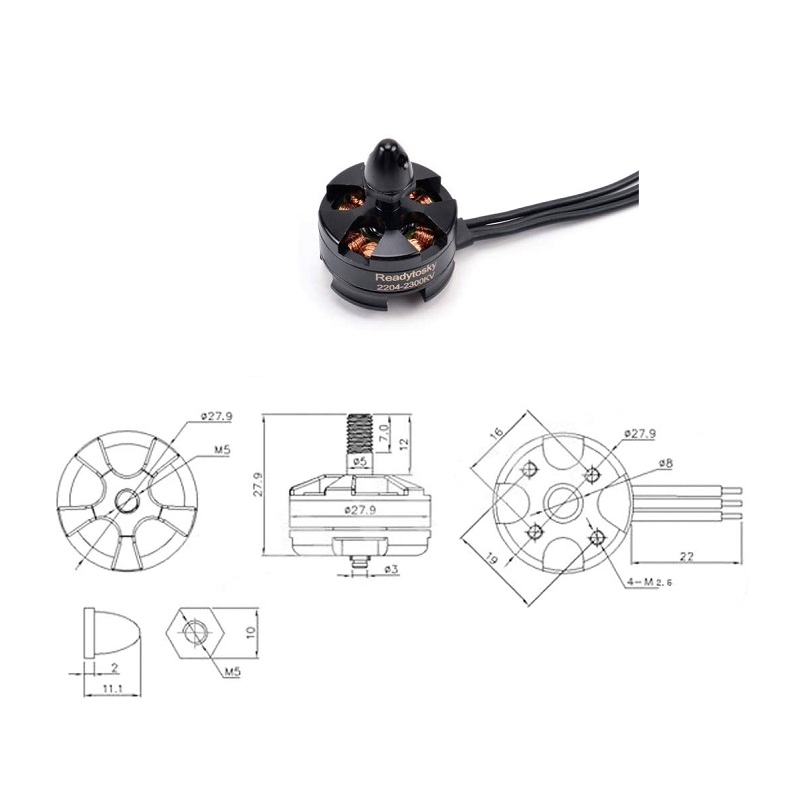

| Dimensions | 5 × 5 × 2 cm |
