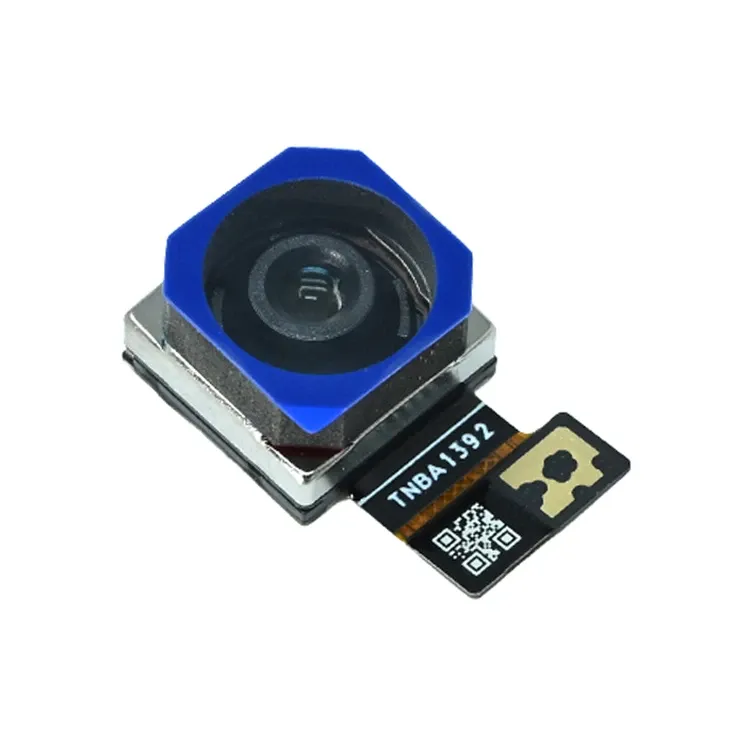

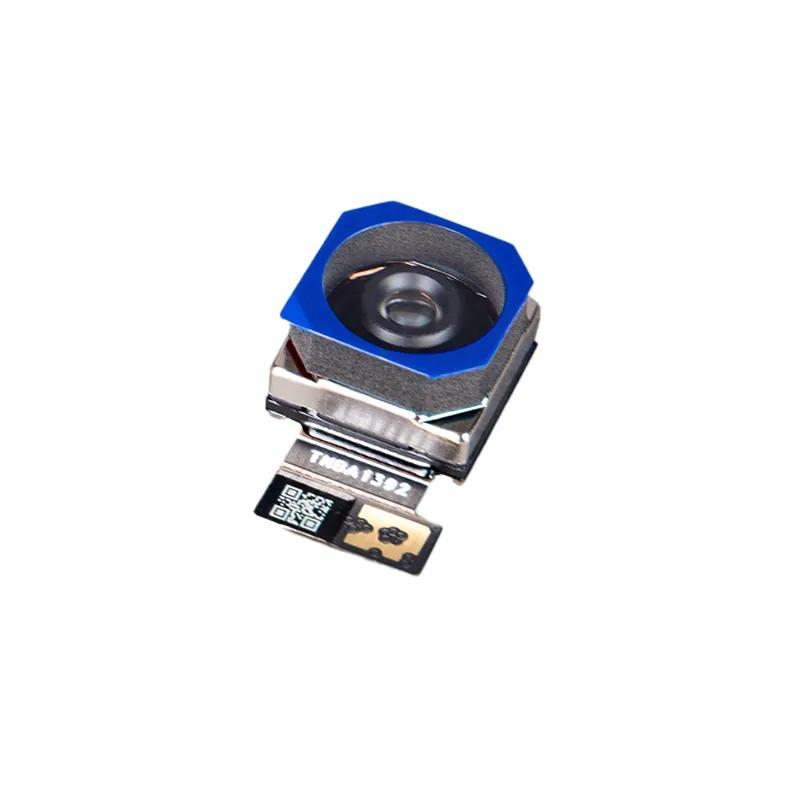

Raspberry Pi Camera Module 3 Sensor Assembly, 11.9MP
The Raspberry Pi Camera Module 3 Sensor Assembly (SA31VA30P) provides the core 11.9MP Sony IMX708 sensor with HDR and fast PDAF autofocus. It offers OEMs and developers a flexible imaging solution for integration into custom hardware designs.
Features
- Integrates 11.9MP Sony IMX708 sensor with HDR.
- Features fast Phase Detection Autofocus (PDAF).
- Includes 2D Dynamic Defect Pixel Correction (DPC).
- Enhanced low-light performance with QBC Re-Mosaic.
- Standard 76° field of view, optimized for visible light.
Out of stock
The Raspberry Pi Camera Module 3 Sensor Assembly SA31VA30P 11.9MP, 4.74mm Standard Lens offers OEMs and developers the core imaging capabilities of the popular Camera Module 3 in a flexible, standalone format. Built around the high-performance 11.9-megapixel Sony IMX708 image sensor, this assembly enables advanced imaging in a wider variety of hardware designs and form factors.
Key features include 2D Dynamic Defect Pixel Correction (DPC) for real-time correction of faulty pixels, Phase Detection Autofocus (PDAF) for fast and accurate focusing, a QBC (Quad Bayer Coding) re-mosaic function for enhanced image detail, and full support for High Dynamic Range (HDR) imaging to capture both bright and dark scenes with greater clarity. The module also features a powered autofocus lens with a 76° field of view, optimized for visible light. By decoupling the sensor module from the standard Raspberry Pi camera board, Model SA31VA30P gives designers greater flexibility to integrate Camera Module 3 technology into embedded systems, robotics, machine vision, and custom camera solutions.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 8 × 10 × 1 cm |
