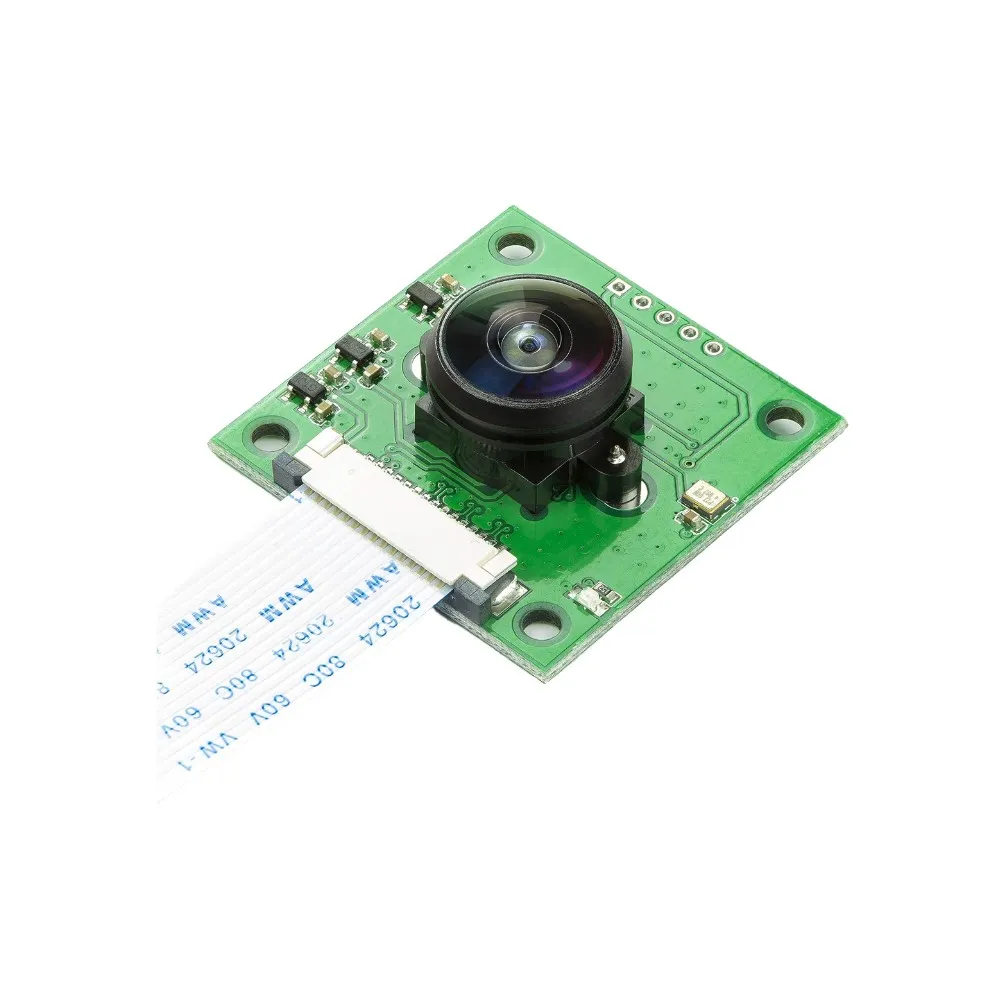

Raspberry Pi 5MP Camera Module | Omnivision OV5647 Sensor | MIPI CSI-2 Interface

The Engineering Behind Raspberry Pi 5MP Camera Module

The Raspberry Pi 5MP Camera Module, featuring the robust Omnivision OV5647 sensor, is engineered to provide precise optical input for a wide array of embedded vision applications. Its primary hardware application involves capturing high-resolution still images and video streams directly interfaced with the Raspberry Pi’s MIPI CSI-2 port. This module leverages a dedicated hardware interface, offloading image processing tasks from the main CPU, ensuring efficient data transfer and minimal latency for real-time video analytics and capture.

Designed with a compact form factor, this camera module facilitates easy integration into space-constrained projects, from robotics and surveillance to automated inspection systems. The component grading ensures stable performance across typical operating environments, offering a reliable vision solution for both educational STEM projects and demanding industrial prototypes. Its fixed-focus lens is optimized for general-purpose imaging, striking a balance between clarity and depth of field without complex calibration requirements.

High-Resolution Omnivision OV5647 Sensor

At its core, the module utilizes the 5-megapixel Omnivision OV5647 CMOS sensor, capable of capturing still images at 2592×1944 pixels and supporting multiple video modes including 1080p at 30fps and 720p at 60fps. This primary technical feature delivers exceptional detail and clarity, crucial for applications requiring object recognition, facial detection, or environmental monitoring, ensuring that crucial visual data is captured with high fidelity.

Direct MIPI CSI-2 Interface

The camera connects to the Raspberry Pi via a specialized 2-lane MIPI CSI-2 (Camera Serial Interface 2) ribbon cable, leveraging the dedicated CSI port present on most Raspberry Pi boards. This direct digital interface resolves traditional operational pain points associated with USB cameras, such as latency, bandwidth limitations, and CPU overhead, by providing a high-speed, low-power pathway for raw image data, crucial for responsive embedded vision systems.

Optimized for Performance & Integration

• Sensor Type: Omnivision OV5647 CMOS
• Still Resolution: 5 Megapixels (2592×1944)
• Video Modes: 1080p30, 720p60, VGA90
• Interface: MIPI CSI-2 (2-lane)
• Lens: Fixed Focus, f/2.9
• Field of View: 62.2 degrees horizontal
• Operating Voltage: 3.3V (from Raspberry Pi)
• Compatibility: Raspberry Pi boards with CSI port

Features & Benefits

• 5MP OV5647 Sensor: Captures high-detail images and video, ideal for precise object detection and monitoring applications.
• Direct CSI-2 Connection: Ensures low-latency, high-bandwidth data transfer, critical for real-time embedded vision projects.
• Compact Form Factor: Easily integrates into space-constrained robots, drones, and IoT devices without added bulk.
• Fixed-Focus Lens: Provides consistent image clarity without complex focusing adjustments, simplifying deployment.
• Raspberry Pi Compatibility: Seamlessly works with most Pi boards, enabling quick setup for developers and educators.
• Cost-Effective Vision Solution: Offers professional-grade imaging performance at an accessible price point for hobbyists and professionals.
