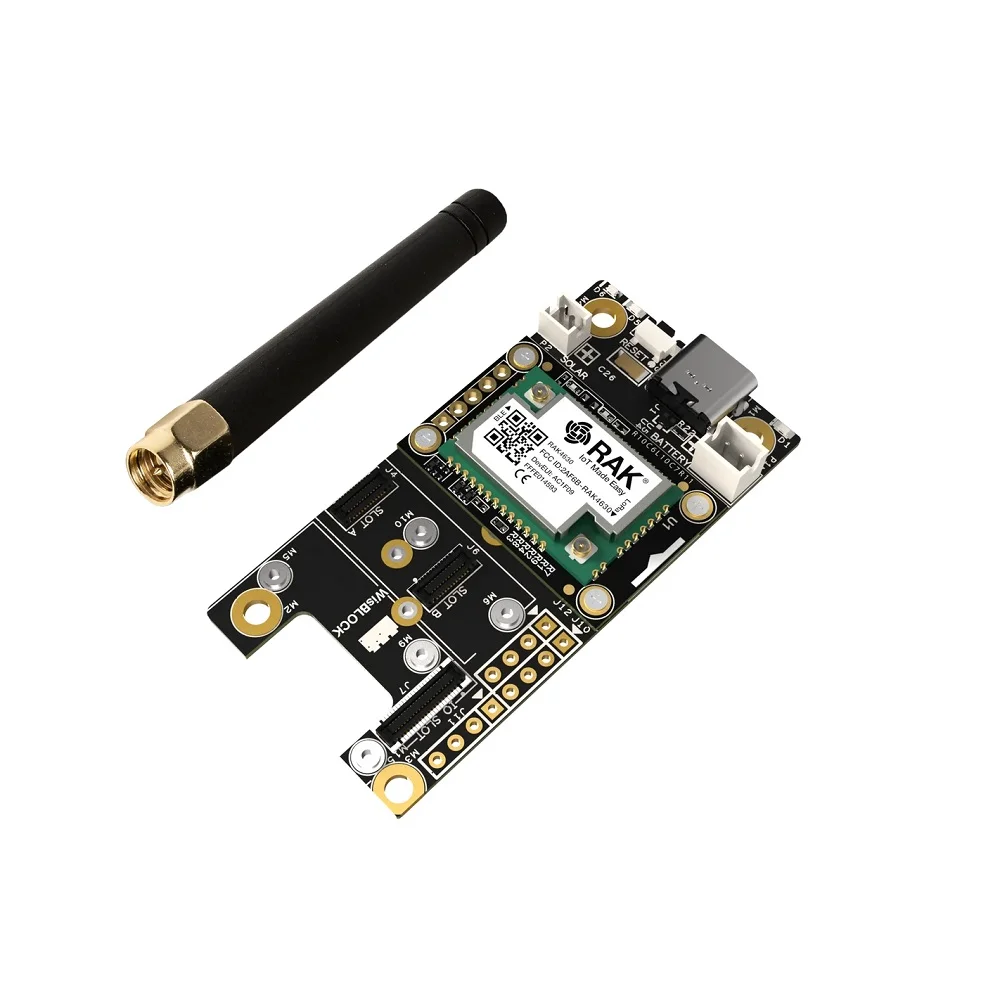

RAKwireless WisBlock Meshtastic Starter Kit RAK19007+RAK4631 for EU868/RU864/IN865

Insert the RAK4631 module into the WisBlock base board, attach the included rubber antenna, and connect a 3.3V-5V power source via the base board's USB or battery connector. The device is pre-flashed with Meshtastic firmware and will automatically start broadcasting its presence. Use the Meshtastic mobile app (via Bluetooth LE) to discover the node, configure its settings (like channel and node name), and begin communicating with other nodes in the mesh. Ensure all devices in your network are set to the same LoRa frequency region (e.g., EU868).

Yes, the RAK4631 is fully programmable. Using the Arduino IDE, install the "RAKwireless RUI3" board support package via the Board Manager. Select 'RAK4631 (WisBlock)' as your target board. You can then write and upload custom sketches, leveraging both the LoRa (using the SX1262 library) and BLE 5.0 capabilities. For PlatformIO, use the framework 'Arduino' and board 'rak4631'. To revert to the original Meshtastic firmware, you can download the pre-built binary from the Meshtastic GitHub releases and flash it using a programmer like nRF Connect or Segger.

The range depends heavily on environment, antenna placement, and LoRa spreading factor settings. In open, line-of-sight conditions with the included antenna, you can expect 1-2 km reliably, and up to several kilometers under ideal circumstances. In urban or dense foliage, range may reduce to a few hundred meters. The true power of Meshtastic is the mesh capability; each node acts as a repeater, dramatically extending the network's total coverage beyond any single point-to-point link. Using higher spreading factors (like SF12) increases range at the cost of reduced data rate and higher power consumption.

The WisBlock ecosystem is designed for modular expansion. Purchase additional WisBlock sensor modules (e.g., for temperature, humidity, GPS, PIR motion) and interface modules (like RS485 or CAN). These modules physically snap onto the 40-pin connector on the RAK19007 base board. The RAK4631 core automatically detects many modules, and their corresponding libraries are available within the RUI3 Arduino framework. Power and communication (I2C, SPI, UART, ADC) are handled through the connector, requiring minimal to no soldering for a complete sensor node build.
