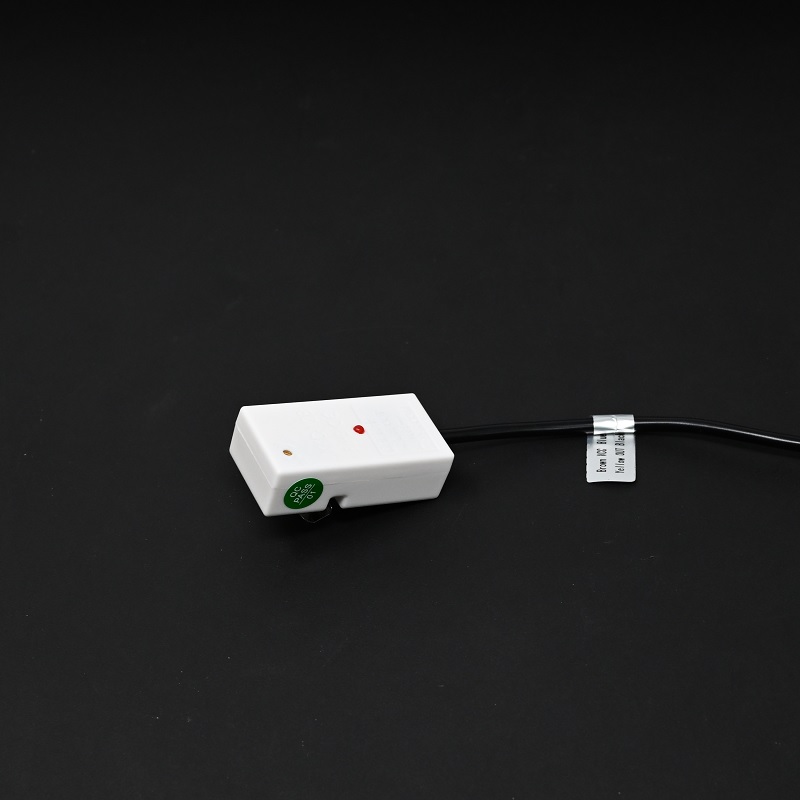

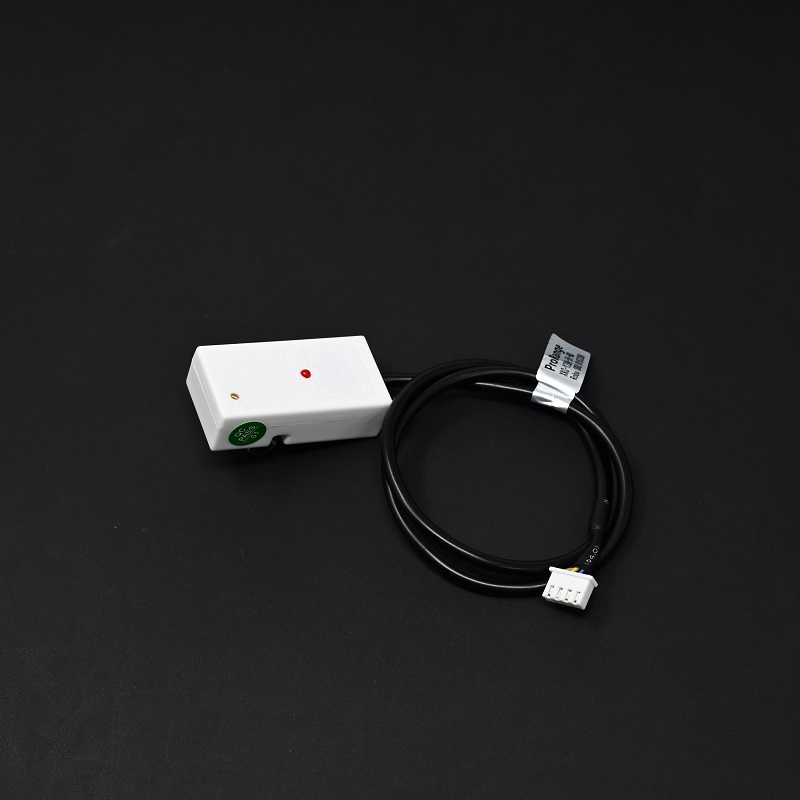

Pro-Range XKC-Y28A-NO DC 5V Non-Contact Liquid Level Sensor
The Pro-Range XKC-Y28A-NO is a DC 5V non-contact capacitive liquid level sensor designed for reliable detection through the walls of non-metallic containers. It offers a simple interface for integration with industrial PLCs, Arduino, and Raspberry Pi systems for tank monitoring and process control.
Features
- Non-contact capacitive sensing through container walls (glass, plastic).
- Wide operating voltage range: DC 5-24V for flexible system integration.
- IP67 waterproof rating ensures durability in harsh or humid environments.
- Adjustable sensitivity for precise detection across different container materials.
- Corrosion-resistant housing suitable for chemical, food, and pharmaceutical applications.
Out of stock
The Pro-Range XKC-Y28A-NO sensor operates on a capacitive sensing principle, detecting changes in dielectric constant caused by the presence of liquid inside a non-metallic container. This non-invasive method eliminates contamination risk and sensor wear, making it ideal for monitoring corrosive or sterile fluids.
Featuring a robust IP67-rated enclosure, the sensor maintains reliable performance in damp or washdown environments. Its wide 5-24V DC input range provides compatibility with a variety of industrial control voltages and microcontroller logic levels (5V). The unit’s output is a simple digital signal (NO – Normally Open) that toggles based on the detected liquid level, enabling straightforward integration into alarm systems or automated processes.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
