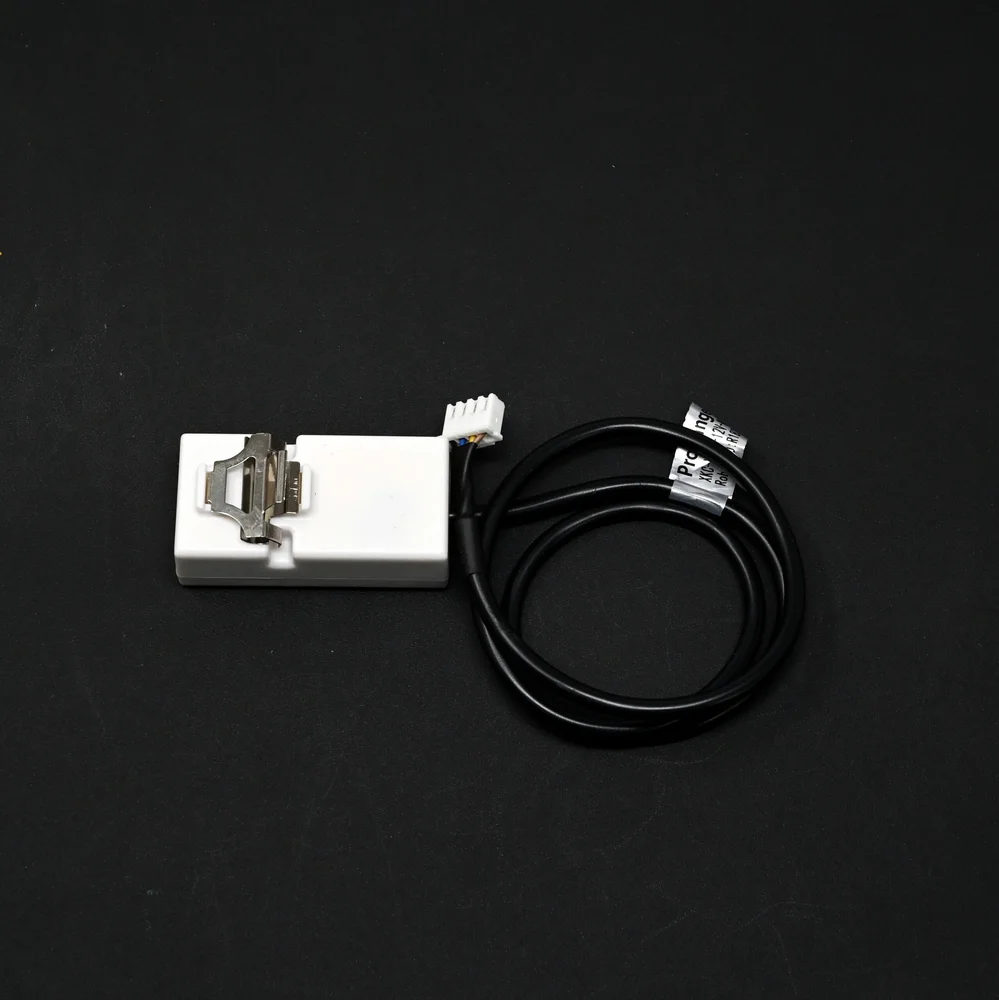

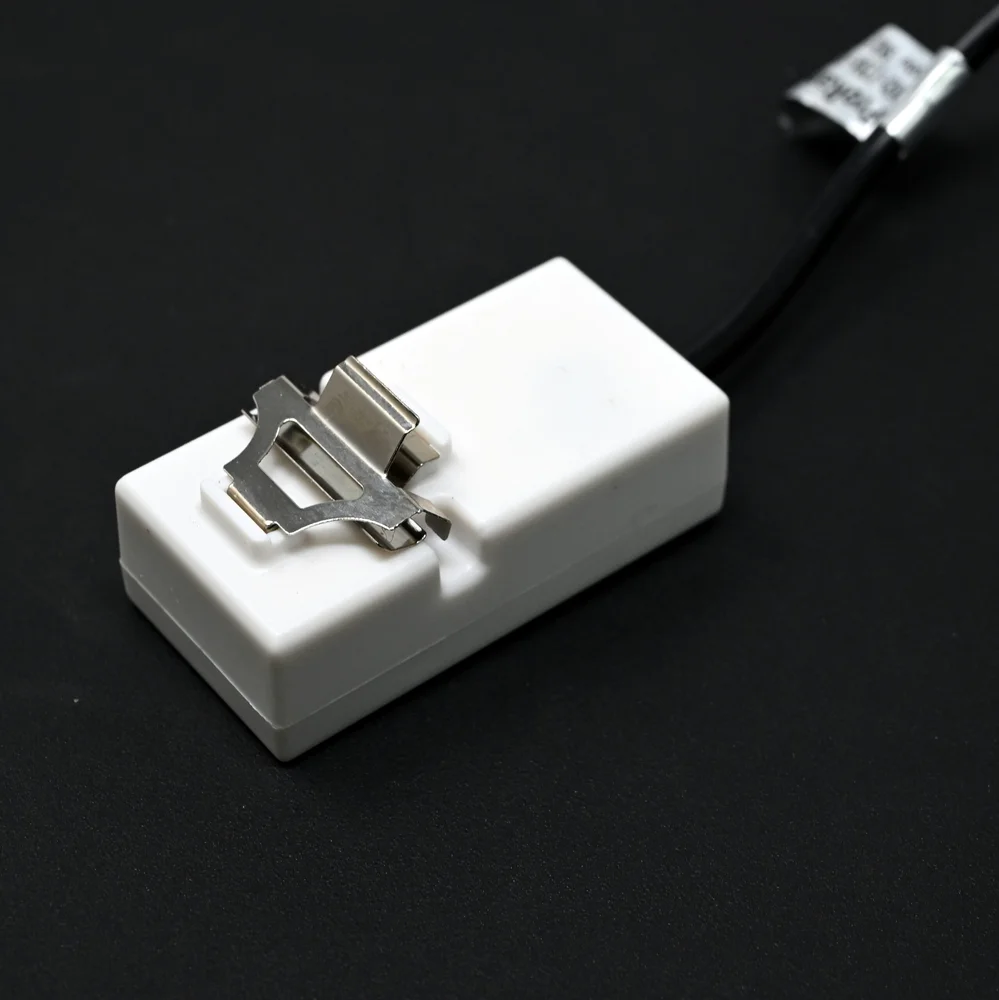

Pro-Range XKC-Y28A-NO-DC 12V Non-Contact Liquid Level Sensor
The Pro-Range XKC-Y28A-NO-DC 12V is a non-contact capacitive liquid level sensor designed for installation on the exterior of non-metallic containers. It provides reliable level detection for water, chemicals, and other liquids without direct contact, making it ideal for corrosive or sterile applications. The sensor operates on a wide 5-24V DC supply and features IP67 waterproof protection for demanding industrial environments.
Features
- Non-contact capacitive sensing through container walls (glass, plastic, ceramic).
- Wide operating voltage range: 5-24V DC for flexible system integration.
- IP67 waterproof rating ensures reliable performance in wet or washdown areas.
- Corrosion-resistant housing suitable for chemical and food-grade applications.
- Adjustable sensitivity for optimal detection across different container materials and liquid types.
Out of stock
The Pro-Range XKC-Y28A-NO sensor utilizes a capacitive sensing principle to detect the presence or absence of liquid inside a container by measuring changes in dielectric constant through the container wall. This non-invasive method eliminates contamination risk and is ideal for monitoring aggressive, sterile, or high-purity liquids.
Engineered for industrial durability, the sensor features a robust, chemically resistant housing and an IP67 sealed enclosure, protecting it from moisture, dust, and incidental splashes. Its fast response time and high repeatability make it suitable for process control, tank level monitoring, and leak detection systems in PLCs and automated equipment.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
