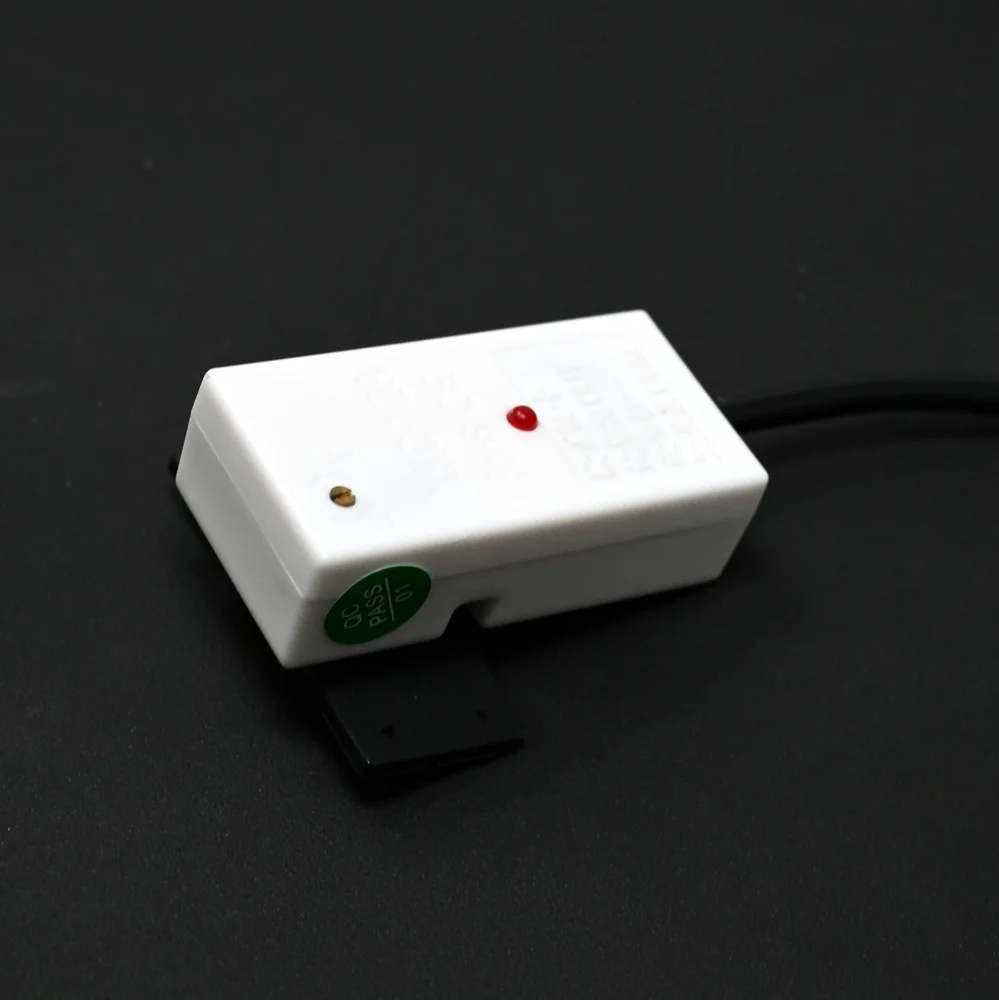

Pro-Range XKC-Y28-NO-DC 5V Non-Contact Liquid Level Sensor

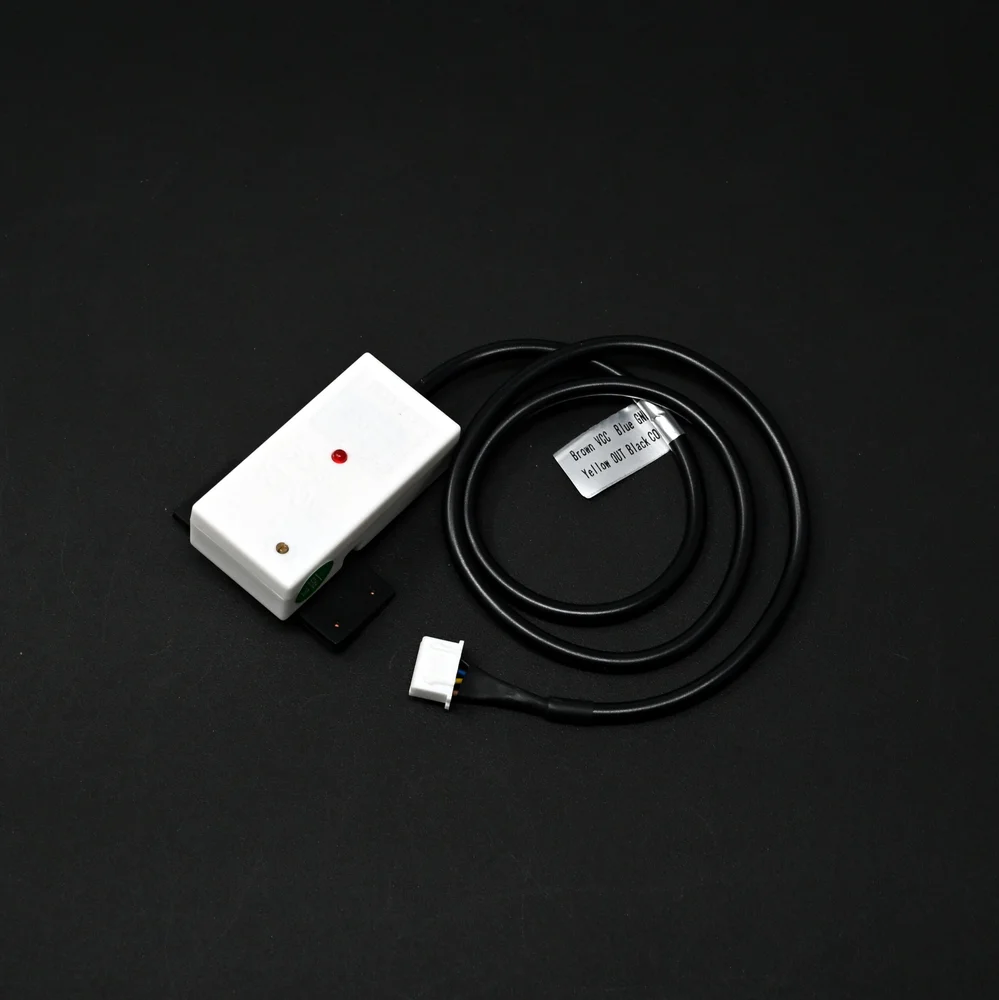

Pro-Range XKC-Y28-NO-DC 5V Non-Contact Liquid Level Sensor - Image 2
SKU: SENS-1354
📋 GST Invoice Available

Pro-Range XKC-Y28-NO-DC 5V Non-Contact Liquid Level Sensor

₹849.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range XKC-Y28-NO is a DC 5V non-contact capacitive liquid level sensor designed for integration with PLCs, Arduino, and industrial control systems. It provides reliable level detection through the walls of non-metallic containers without direct liquid contact, ideal for monitoring corrosive or sterile fluids.

Features

  • Non-contact capacitive sensing through container walls
  • DC 5V power supply for microcontroller compatibility
  • IP67 waterproof rating for harsh or washdown environments
  • Adjustable sensitivity for optimal detection across materials
  • Corrosion-resistant housing for chemical and food industry use

Out of stock

Description

The Pro-Range XKC-Y28-NO liquid level sensor operates on a capacitive sensing principle, detecting changes in dielectric constant caused by the presence of liquid inside a non-metallic container. This non-invasive method eliminates contamination risk and sensor wear, making it suitable for sterile or corrosive applications.

Powered by a stable DC 5V supply, the sensor outputs a clean digital or analog signal for direct interface with microcontrollers, PLCs, and data acquisition systems. Its IP67-sealed housing ensures reliable operation in damp, dusty, or washdown environments common in industrial and process control settings.

Key Features

  • Non-contact capacitive sensing technology for minimal maintenance
  • Wide compatibility with plastic, glass, and ceramic container materials
  • High-value build with corrosion-resistant, durable housing
  • Fast response time for real-time level monitoring and control
  • Optimized performance-to-cost ratio for industrial and OEM integration
  • Simple installation via mounting bracket or adhesive

Applications

  • Chemical processing tank level monitoring in non-metallic vessels
  • Food & beverage industry liquid level control in plastic totes or drums
  • Pharmaceutical and biotech sterile fluid level sensing
  • Water level detection in residential or commercial plastic water tanks
  • Automated dosing and dispensing system level feedback

Technical Specifications

Manufacturer Part NumberXKC-Y28-NO
Product TypeNon-Contact Liquid Level Sensor
Sensing PrincipleCapacitive
Operating VoltageDC 5V
Output SignalDigital (High/Low) or Analog (configurable)
Container CompatibilityNon-metallic (Plastic, Glass, Ceramic)
IP RatingIP67 (Waterproof & Dustproof)
Housing MaterialCorrosion-Resistant Plastic
Response Time< 100 ms
Shipping Weight0.025 kg
Shipping Dimensions (L x W x H)14 × 10 × 3 cm

Frequently Asked Questions

What type of output signal does this sensor provide?

The Pro-Range XKC-Y28-NO typically provides a digital output signal (high/low logic level) that switches based on liquid presence. Some variants may offer an adjustable analog output. You should verify the specific output configuration with your supplier datasheet for integration with your PLC or microcontroller.

What is the maximum container wall thickness it can sense through?

The effective sensing range through a container wall depends on the material's dielectric constant and the sensor's adjustable sensitivity. For common plastics (PP, PVC) and glass, typical maximum wall thickness is up to 10mm. For reliable operation, calibrate the sensitivity potentiometer after installation on your specific tank.

Can this sensor be used with conductive liquids or metal containers?

No. This capacitive sensor is designed specifically for non-metallic containers and non-conductive liquids. Metal containers shield the electric field, and conductive liquids can cause false readings. It is ideal for water-based, oil, chemical, or food-grade fluids in plastic, glass, or ceramic tanks.

How do I wire and power the sensor?

Connect the DC 5V supply to the sensor's VCC and GND terminals. The output signal wire connects to your controller's digital or analog input pin. Ensure correct polarity and use shielded cable for long runs in electrically noisy environments to maintain signal integrity.

Package Includes

  • 1 x Pro-Range XKC-Y28-NO Non-Contact Liquid Level Sensor

Additional Information

Weight 0.025 kg
Dimensions 14 × 10 × 3 cm
