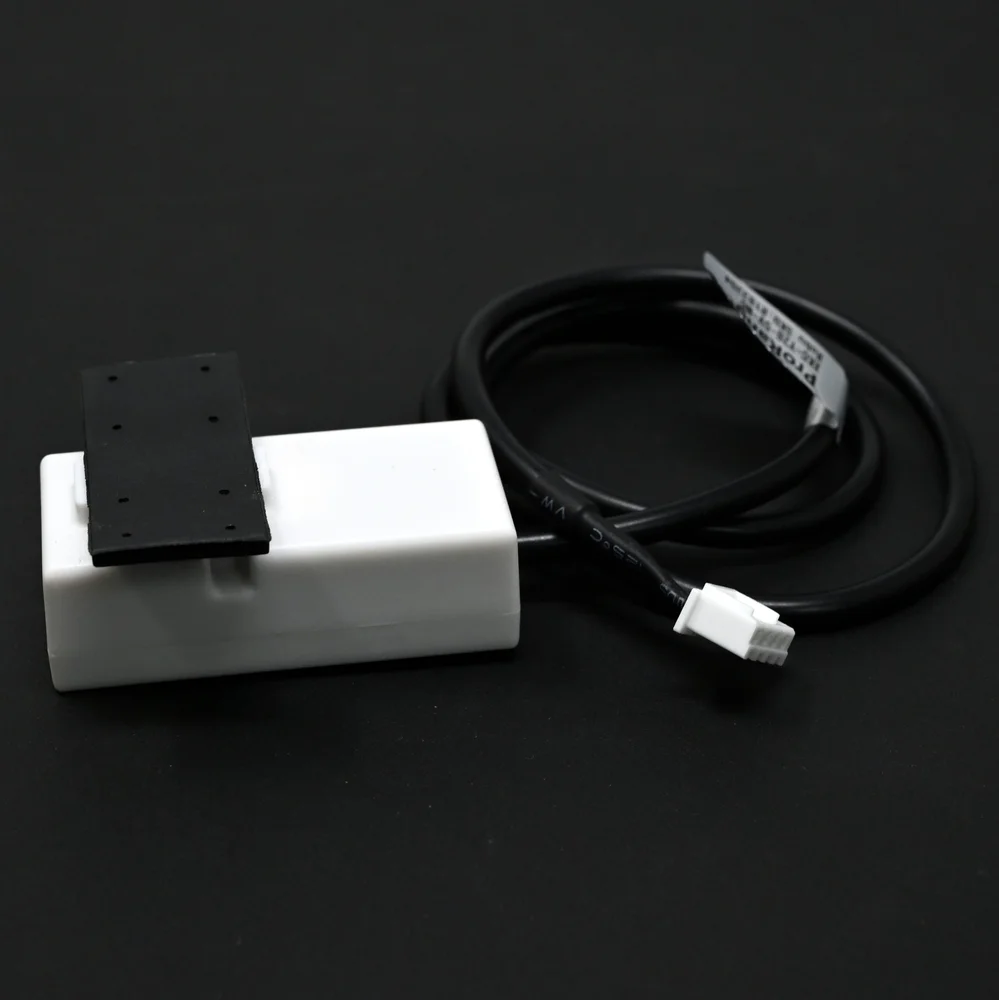

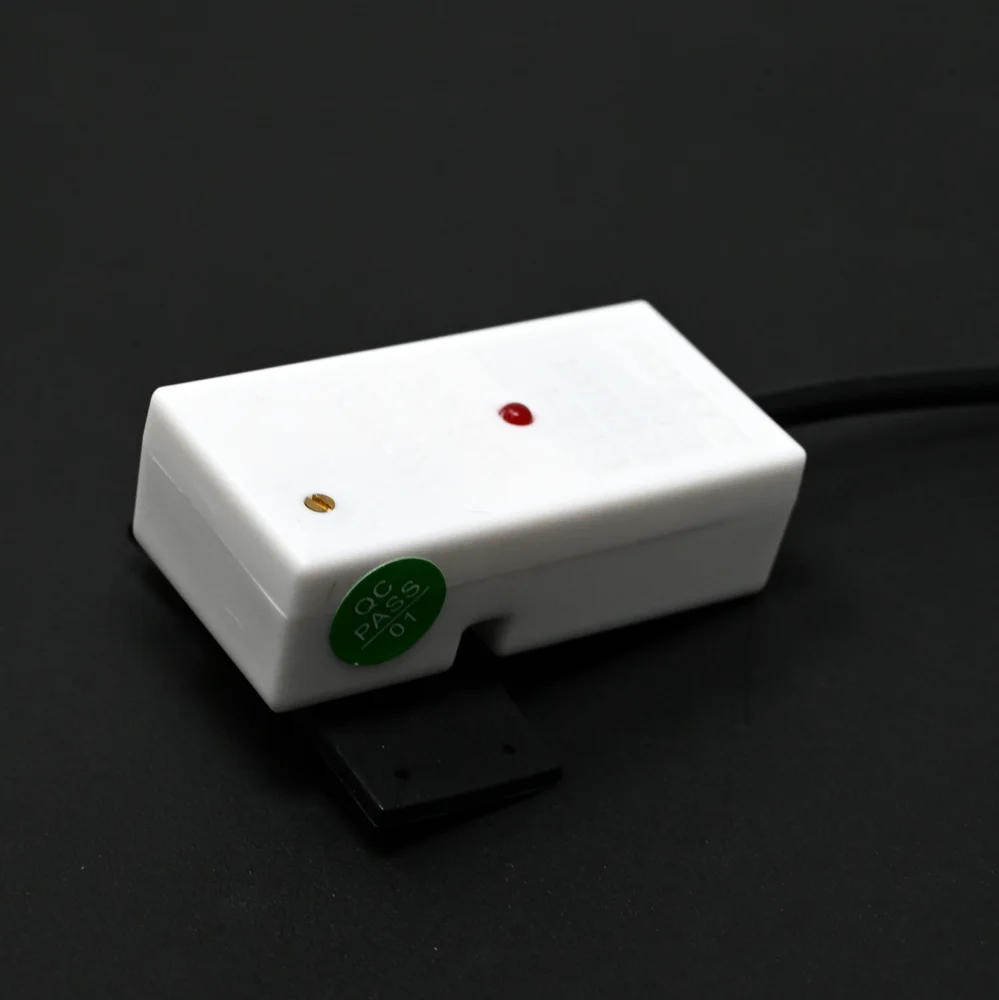

Pro-Range XKC-Y28-NC-DC 5V Non-Contact Liquid Level Sensor
The Pro-Range XKC-Y28-NC is a 5V DC non-contact capacitive liquid level sensor designed for integration with industrial PLCs, Arduino, and Raspberry Pi systems. It provides reliable level detection through the walls of non-metallic containers, eliminating contact with corrosive or sensitive media.
Features
- Non-contact capacitive sensing through container walls (glass, plastic).
- 5V DC supply voltage compatible with microcontroller logic levels.
- IP67 waterproof rating for durable operation in harsh, wet environments.
- Adjustable sensitivity for precise detection across different container thicknesses.
- Corrosion-resistant housing suitable for chemical, food, and pharmaceutical applications.
Out of stock
The Pro-Range XKC-Y28-NC operates on a capacitive sensing principle, detecting changes in dielectric constant caused by the presence of liquid inside a non-metallic container. This non-invasive method prevents sensor fouling and contamination, making it ideal for monitoring corrosive, sterile, or high-purity liquids.
The sensor features a robust IP67-sealed housing for protection against dust and temporary immersion, ensuring reliable performance in industrial washdown or outdoor environments. Its 5V DC power requirement simplifies integration with standard digital control systems, while the adjustable sensitivity potentiometer allows for fine-tuning to match specific container materials and wall thicknesses.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 10 × 14 × 3 cm |
