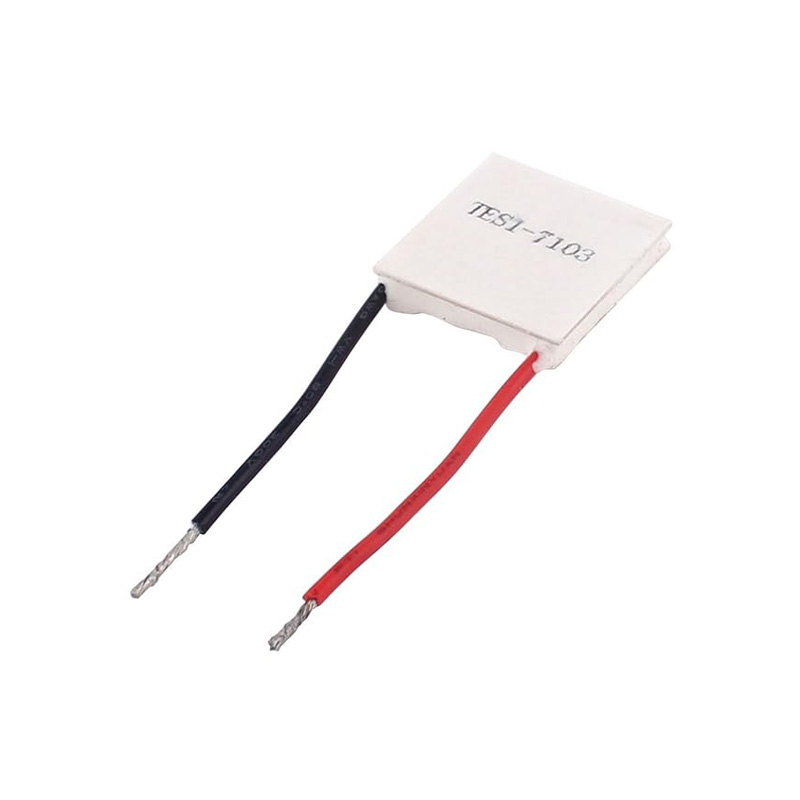

Pro-Range TES1-7103 Thermoelectric Cooler Peltier Module - 23x23mm, 8.4V, 3A, 13.5W
The Pro-Range TES1-7103 is a compact 23x23mm thermoelectric cooler (TEC) module delivering 13.5W of cooling capacity at 8.4V/3A. This Peltier device is engineered for precise temperature control in electronics cooling systems, small refrigeration units, and thermal management applications.
Features
- High-performance Peltier module with 13.5W cooling capacity.
- Operates at 8.4V DC with a 3A current draw for robust heat pumping.
- Compact 23mm x 23mm footprint with a slim 3.7mm profile for space-constrained designs.
- Capable of achieving a maximum temperature difference (ΔT) of 65°C.
- Industrial-grade semiconductor construction for reliable, long-term operation.
Out of stock
The TES1-7103 thermoelectric cooler utilizes the Peltier effect to actively transfer heat from one ceramic face to the other when DC power is applied. This solid-state heat pump provides precise, reversible cooling or heating control without moving parts, making it ideal for applications requiring stable thermal management.
Built with robust bismuth telluride semiconductor elements and alumina ceramic substrates, the module ensures efficient thermal conductivity and electrical isolation. Its compact, low-profile design facilitates integration into cooling assemblies for laser diodes, CCD sensors, PCR instruments, and custom temperature regulation systems.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
