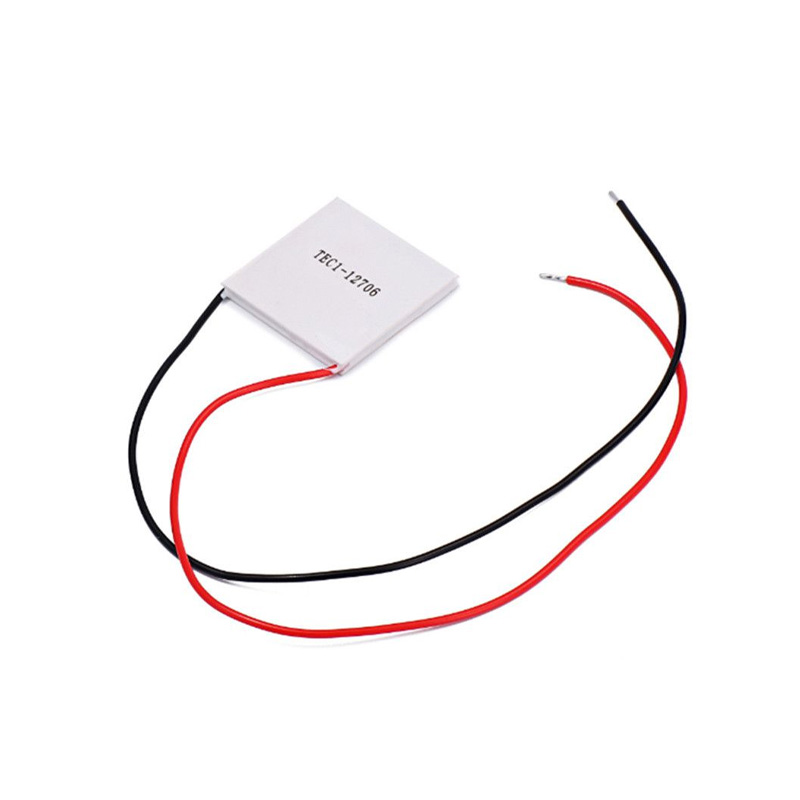

Pro-Range TEC1-12706 40x40mm Thermoelectric Cooler Module - 15.8V, 6A, 51W Cooling

The module is rated for 15.8V DC and draws 6A under typical operating conditions to achieve its full 51W cooling capacity. You must use a DC power supply capable of delivering at least 15.8V and 6A continuously, with appropriate current limiting or a dedicated TEC driver to prevent damage from inrush currents.

Achieving the maximum ΔT of 65°C requires optimal thermal management. The hot side of the module must be attached to an efficient heatsink (often with forced air or liquid cooling) to rapidly dissipate the pumped heat. The cold side must have minimal thermal load. Performance is highly dependent on the quality of the heatsinking and thermal interface materials used.

While you can connect it directly to a stable, current-limited DC supply, using a dedicated TEC or PWM driver circuit is strongly recommended for most applications. A driver provides precise current control for temperature regulation, protects the module from voltage spikes, and often includes features for proportional-integral-derivative (PID) control and temperature sensing feedback.

Apply even pressure across the module's ceramic plates during mounting to avoid cracking. Use a high-quality thermal paste or a thin, compliant thermal pad between the module and both the heatsink (hot side) and the object to be cooled (cold side) to minimize thermal resistance. Mechanical stress from uneven mounting or overtightening should be avoided.
