SKU: 3DMR-1123
📋 GST Invoice Available

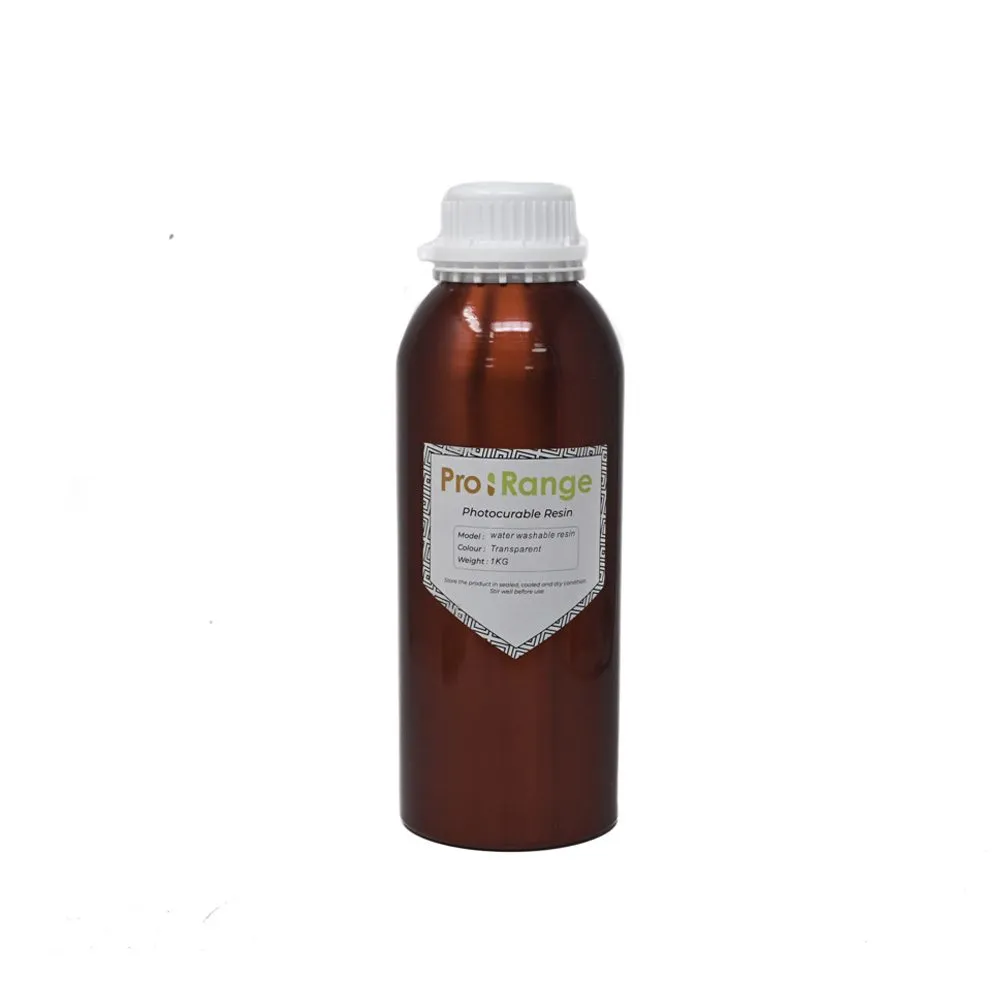

Pro-Range Standard Water Washable Resin - 1Kg Transparent

₹2,539.00 (Inclusive of all taxes)
Out of Stock

Pro-Range Standard Water Washable Resin offers an easy post-processing experience, allowing cleaning with just water instead of alcohol. This resin delivers ABS-like mechanical strength and impact resistance, making it suitable for durable, functional prototypes and components.

Features

  • Effortless cleanup with water, eliminating the need for alcohol-based solvents.
  • Provides ABS-like mechanical strength, high impact resistance, and durability for functional parts.
  • Transparent finish ideal for visual verification and aesthetic prototyping.
  • Optimized for LCD and DLP resin printers with 395-405nm UV light sources.

Out of stock

Description

The Pro-Range Standard Water Washable Resin is a high-quality LCD light-curing resin engineered for superior ease of use during post-processing. Unlike traditional resins, it can be thoroughly cleaned with water, simplifying your workflow and reducing the need for harsh chemicals like IPA.

This resin is formulated to provide performance characteristics similar to traditional ABS plastic, exhibiting high mechanical strength, excellent impact resistance, and notable durability. It features a tensile strength of 29 MPa, a flexural strength of 48 MPa, and an impact resistance of 15-16 J/m, making it an ideal choice for creating robust, functional prototypes and end-use parts that require assembly, including those with self-tapping screws. Its transparent finish also allows for effective product appearance verification.

Key Features

  • Water Washable: Eliminates the need for costly or hazardous alcohol-based cleaning, simplifying post-processing.
  • ABS-Like Mechanical Properties: Engineered to provide high mechanical strength and exceptional impact resistance, suitable for robust applications.
  • Excellent Durability: Exhibits high tensile strength (29 MPa) and flexural strength (48 MPa), ensuring parts withstand stress.
  • High Impact Resistance: With an impact strength of 15-16 J/m, printed parts are resilient against sudden forces.
  • Transparent Finish: Ideal for applications requiring visual clarity or aesthetic prototypes.
  • Wide UV Compatibility: Cures effectively with 395-405 nm UV light sources, suitable for most LCD/DLP resin printers.

Applications

  • Functional Prototypes requiring robust mechanical properties.
  • Product Appearance Verification where clarity and detail are important.
  • Parts Requiring Assembly with self-tapping screws due to high durability.
  • General purpose models and figures that need to be easily cleaned.

Technical Specifications

Material TypeStandard Water Washable Resin
ColorTransparent
Net Weight1 kg
Viscosity109 mPa-s
Wavelength Compatibility395-405 nm
Tensile Strength29 MPa
Impact Strength15-16 J/m
Hardness79D-81D

Frequently Asked Questions

What are the optimal printing settings for this resin?

Exposure times typically range from 2-4 seconds per layer on mono LCDs, with 8-15 base layers at 20-60 seconds. Adjust based on your specific printer and ambient temperature to achieve optimal detail and layer adhesion. Always perform calibration prints for best results.

How should I post-process parts printed with this water washable resin?

After printing, rinse parts thoroughly with tap water to remove uncured resin. For best results, use a soft brush or ultrasonic cleaner. Ensure parts are completely dry before post-curing to avoid surface hazing and achieve maximum mechanical properties.

What are the benefits of using a water washable resin?

Water washable resins eliminate the need for harsh chemicals like isopropyl alcohol, making cleanup safer, more environmentally friendly, and significantly more convenient. This simplifies your post-processing workflow and helps reduce associated material costs and chemical waste.

Can this resin be used for functional parts?

Yes, with its ABS-like mechanical properties, including high tensile strength (29 MPa) and impact resistance (15-16 J/m), Pro-Range Standard Water Washable Resin is well-suited for durable functional prototypes, engineering models, and parts requiring assembly.

Package Includes

  • 1x Bottle Pro-Range Standard Water Washable Resin (1Kg Transparent)

Additional Information

Weight 1 kg
Dimensions 26 × 9 × 9 cm
