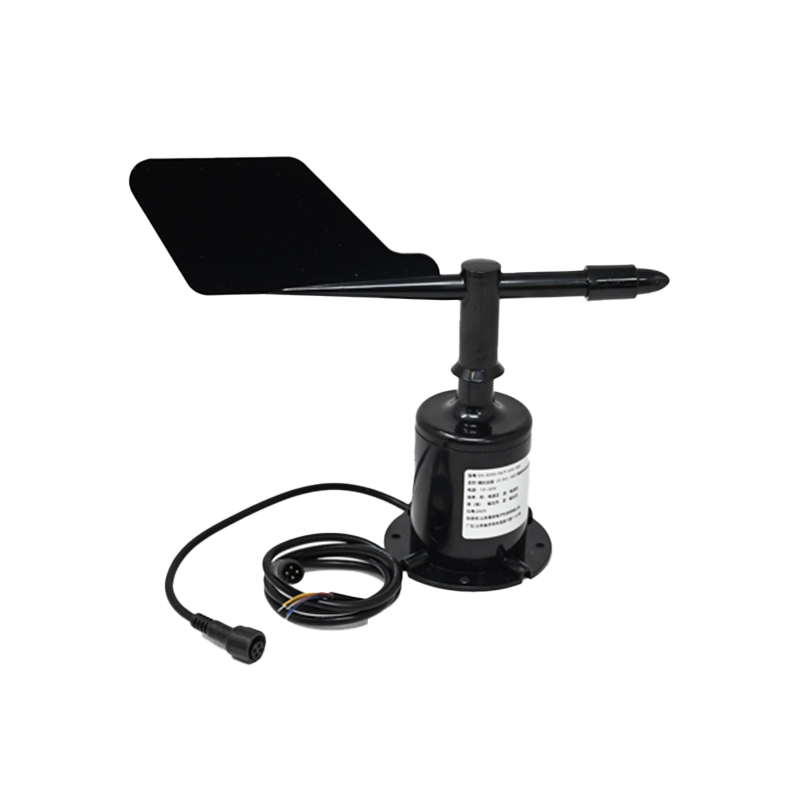

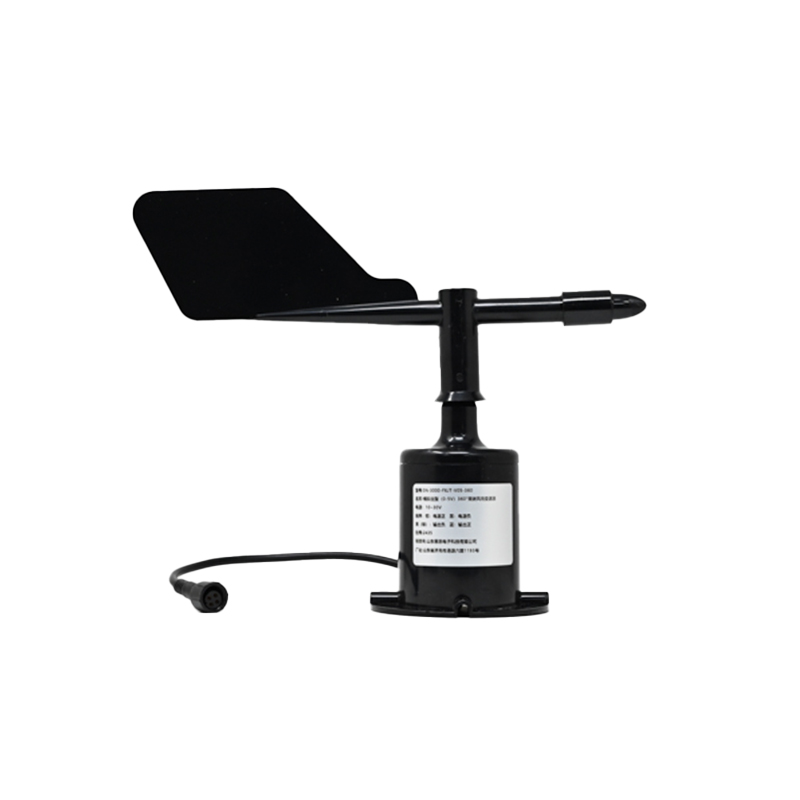

Pro-Range SN-3000-FXJT-V05-360 Wind Direction Sensor 0-5V Output - Polycarbonate Shell
The Pro-Range SN-3000-FXJT-V05-360 is a precision wind direction sensor providing a 0-5V analog output signal corresponding to a 0-360° measurement range. Designed for seamless integration with data loggers, PLCs, and microcontroller systems like Arduino and Raspberry Pi, it features a durable polycarbonate housing for reliable long-term outdoor deployment.
Features
- High-precision 360° wind direction measurement with ±1° accuracy.
- 0-5V DC analog output signal for easy interfacing with ADCs and controllers.
- Robust polycarbonate composite shell offering corrosion resistance and high impact strength.
- Low power consumption (0.12W max) from a single 5V DC supply with reverse polarity protection.
- Optimized low-inertia mechanical design with high-performance bearings for sensitive, low-friction response.
Out of stock
The SN-3000-FXJT-V05-360 wind direction transmitter utilizes a precision potentiometer coupled to a low-friction, high-performance bearing system. As the vane rotates with wind direction, the internal mechanism generates a proportional voltage signal across the 0-5V range, providing a continuous, high-resolution reading of wind azimuth from 0 to 359.9 degrees.
Engineered for harsh environmental conditions, its polycarbonate composite housing provides excellent resistance to UV exposure, corrosion, and mechanical impact. The sensor’s electrical design incorporates protection against reverse connection, overvoltage, and electromagnetic interference, ensuring stable signal integrity. It supports both three-wire and four-wire connection schemes for flexible system integration in fixed installations or portable monitoring stations.
Additional Information
| Weight | 0.31 kg |
|---|---|
| Dimensions | 25 × 21 × 11 cm |
