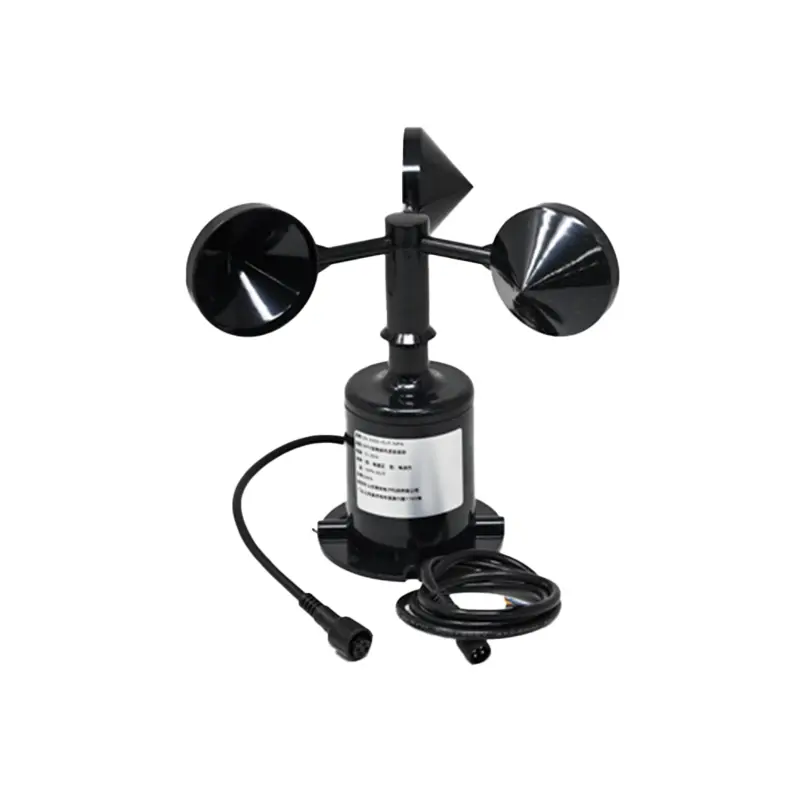

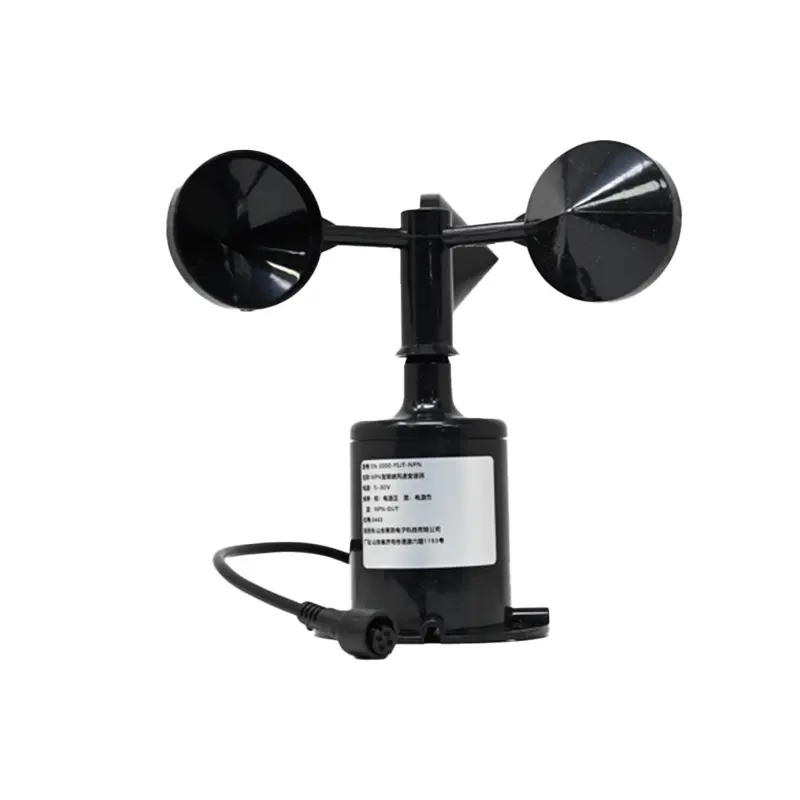

Pro Range SN-3000-FSJT-NPN Pulse Wind Speed Sensor - NPN Open-Collector Output, Polycarbonate Shell
The Pro-Range SN-3000-FSJT-NPN is a pulse-output wind speed sensor featuring a durable polycarbonate shell and a three-cup anemometer design. It provides a reliable NPN open-collector pulse signal compatible with industrial PLCs, data loggers, and microcontroller systems (Arduino, Raspberry Pi) for accurate wind speed monitoring in demanding environments.
Features
- Pulse-type anemometer with NPN open-collector output for direct digital interface.
- Wide measurement range from 0 to 60 m/s with a high resolution of 0.0875 m/s.
- Constructed with corrosion-resistant polycarbonate composite shell for long-term outdoor use.
- Low power consumption, operating from a 5-30V DC supply with ≤20 mA current draw.
- Features high-performance imported bearings for low rotation resistance and precise measurement.
Out of stock
The SN-3000-FSJT-NPN wind speed transmitter utilizes a three-cup anemometer principle, where wind rotation generates a proportional pulse frequency. This pulse signal is output via an NPN open-collector transistor, providing a robust digital interface suitable for industrial control systems and environmental monitoring networks. The sensor’s design ensures accurate data collection even in challenging conditions.
Engineered for durability, the sensor housing is made from polycarbonate composite, offering excellent mechanical strength, hardness, and corrosion resistance. The internal bearing system is optimized for minimal friction and long-term reliability. With an operating temperature range of -20°C to +60°C and IP-rated protection (implied by outdoor use), it is built for continuous operation in weather stations, marine applications, and agricultural environments.
Additional Information
| Weight | 0.32 kg |
|---|---|
| Dimensions | 18 × 18 × 20 cm |
