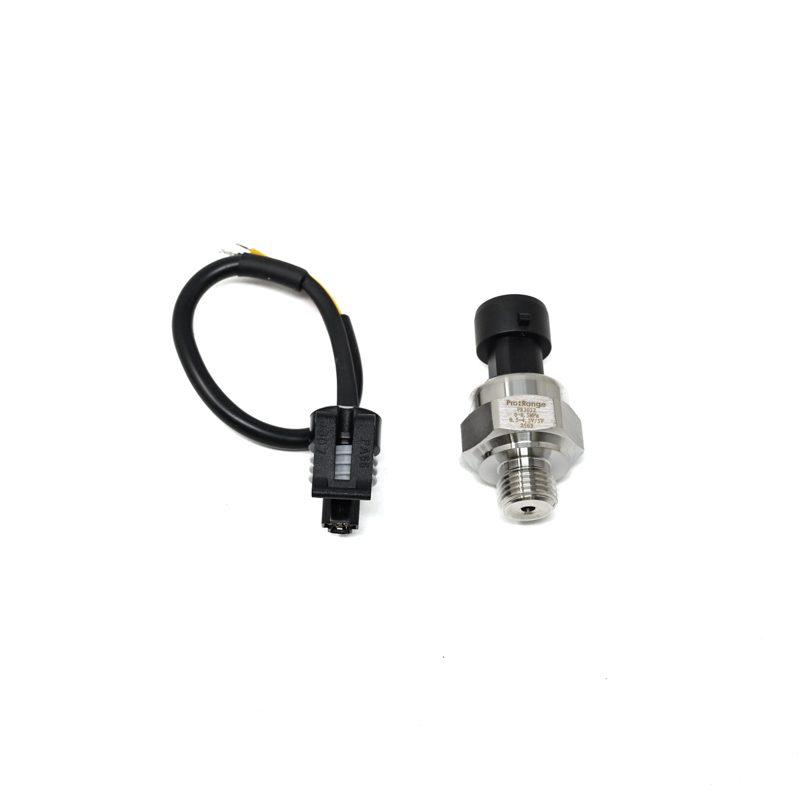

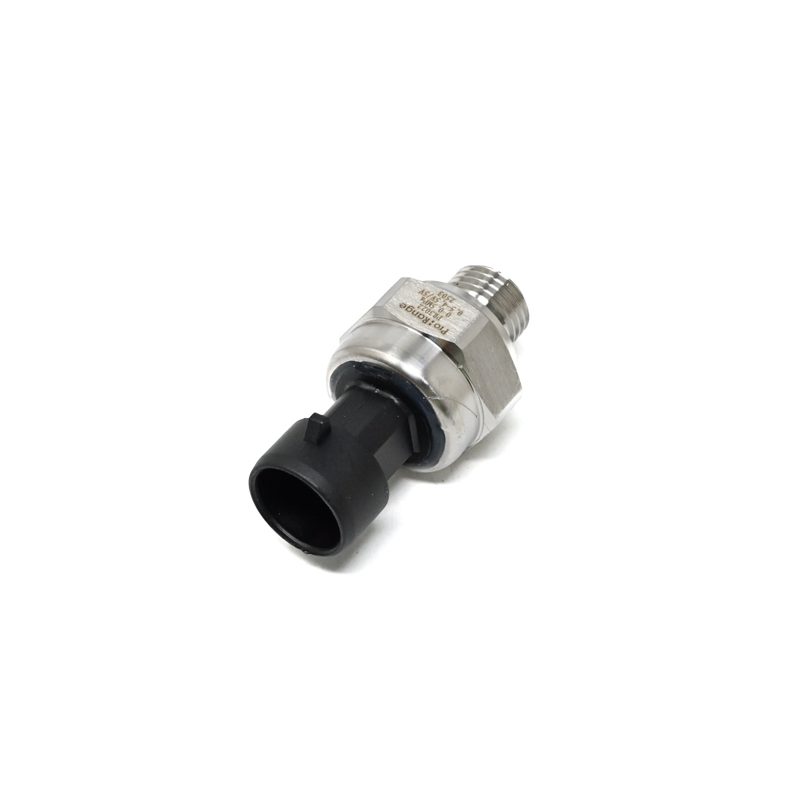

Pro-Range PR3022 0-0.5 MPa Pressure Transducer - 0.5-4.5V Output, G1/4" Thread
The Pro-Range PR3022 is a 0-0.5 MPa pressure transducer delivering a 0.5-4.5V analog output signal, compatible with PLCs, data loggers, and 5V microcontroller systems like Arduino via signal conditioning. Its G1/4″ threaded connection ensures easy integration into hydraulic, pneumatic, and process control lines.
Features
- 0 to 0.5 MPa pressure measurement range with high linearity.
- Provides a 0.5 to 4.5V ratiometric analog output signal.
- Standard G1/4″ male thread for direct pipeline or manifold mounting.
- Robust construction for stable performance in industrial environments.
- Compact form factor for installation in space-constrained applications.
Out of stock
The PR3022 pressure transducer utilizes an internal strain gauge or piezoresistive sensing element to convert applied pressure into a precise electrical signal. The 0.5-4.5V output is ratiometric to the supply voltage, offering improved noise immunity and simplified interfacing with analog-to-digital converters (ADCs) in control systems.
Engineered for durability, its housing is constructed from stainless steel or brass to withstand typical industrial media and pressure cycling. The device is designed for continuous monitoring in systems requiring reliable pressure feedback for control, safety, or data acquisition purposes.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
