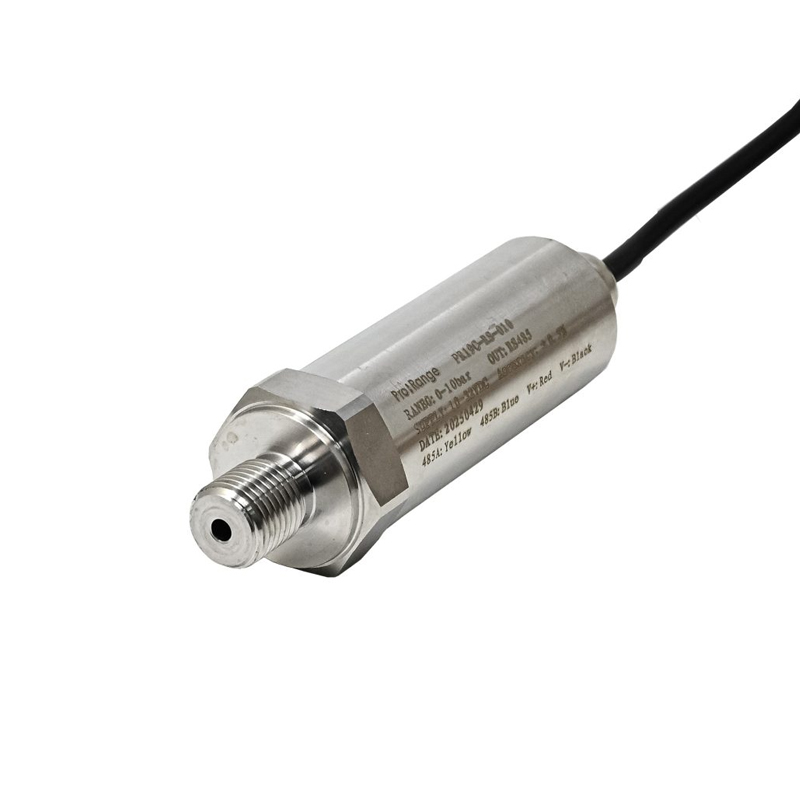

Pro-Range PR19C-RS-010 Pressure Sensor 0-1 MPa - RS485 Output, G1/4 Thread, 1m Cable

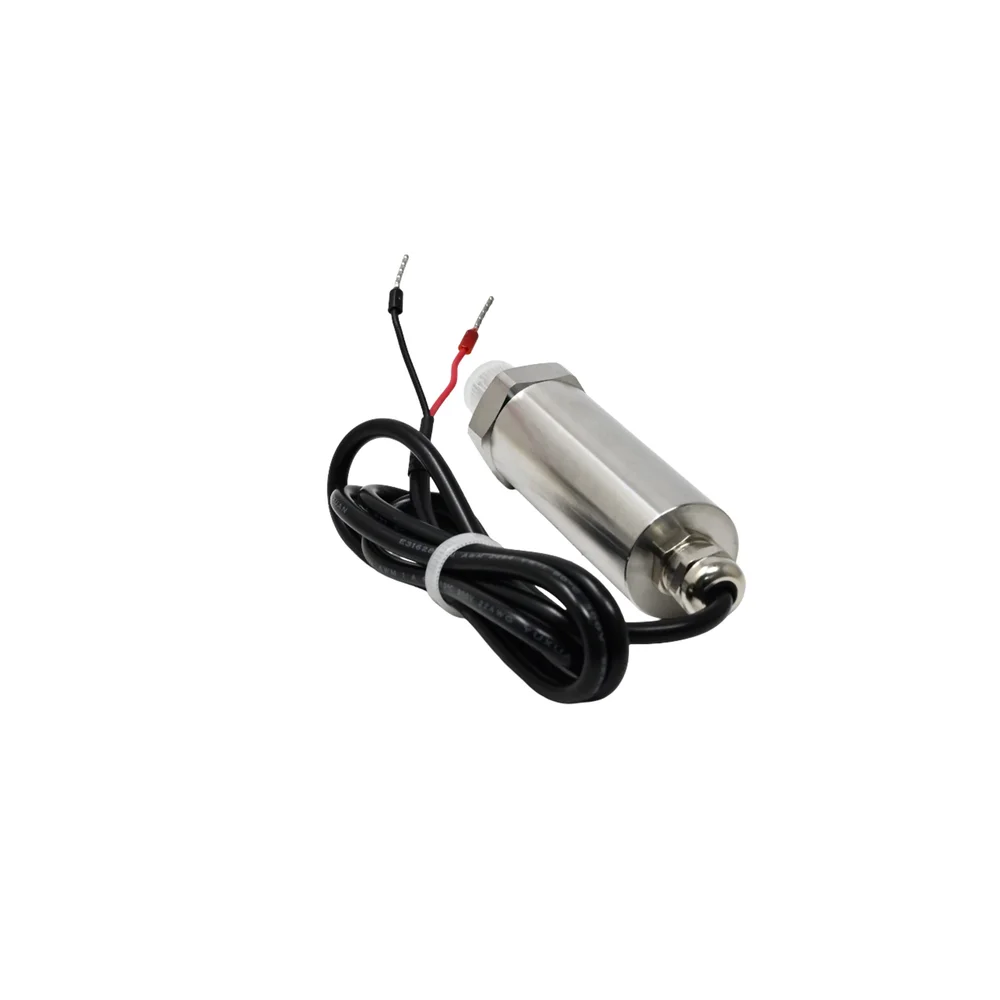

Pro-Range PR19C-RS-010 Pressure Sensor 0-1 MPa - RS485 Output, G1/4 Thread, 1m Cable - Image 2

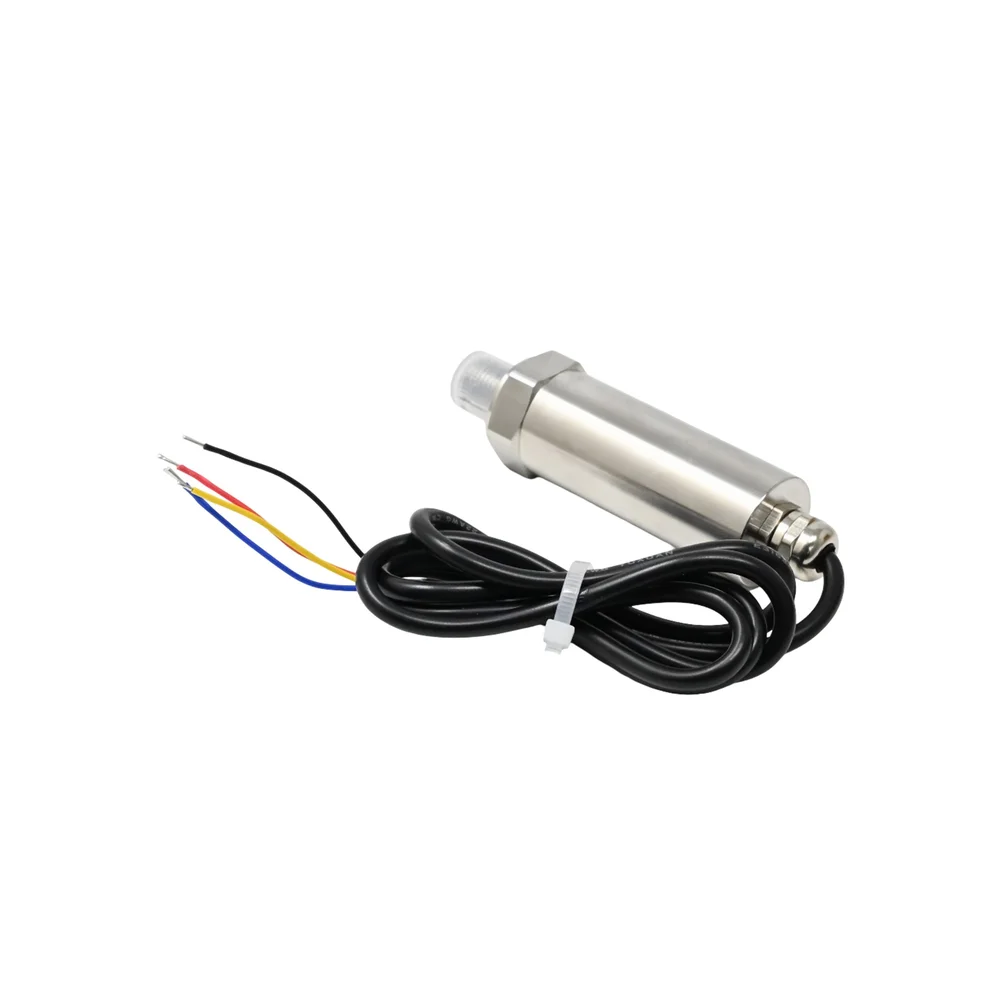

Pro-Range PR19C-RS-010 Pressure Sensor 0-1 MPa - RS485 Output, G1/4 Thread, 1m Cable - Image 3
SKU: SENS-2226
📋 GST Invoice Available

Pro-Range PR19C-RS-010 Pressure Sensor 0-1 MPa - RS485 Output, G1/4 Thread, 1m Cable

₹3,069.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range PR19C-RS-010 is a digital pressure transmitter with a 0-1 MPa range and RS485 Modbus output, designed for direct integration into industrial PLCs, SCADA, and remote monitoring systems. It features a standard G1/4 thread and includes a 1-meter cable for straightforward installation.

Features

  • 0-1 MPa (0-145 psi) pressure measurement range with high accuracy
  • RS485 digital output with Modbus RTU protocol for stable long-distance communication
  • Standard G1/4 industrial thread for direct pipeline mounting
  • Wide 10-32 VDC operating voltage for flexible power sourcing
  • Robust construction with a 30mm diameter stainless steel housing

Out of stock

Description

The PR19C-RS-010 is a medium-pressure transducer utilizing a high-stability sensing element, delivering a calibrated digital signal via an RS485 interface. Its integrated signal conditioning ensures reliable performance across the full 10-32 VDC supply range, making it compatible with a wide array of industrial control systems without requiring additional signal converters.

Built for durability in industrial environments, the sensor’s compact, cylindrical housing is designed for direct in-line installation. The included 1-meter cable facilitates connection to control panels or data acquisition units, streamlining setup in hydraulic systems, process control loops, and equipment monitoring applications.

Key Features

  • Digital RS485 Modbus RTU output for noise-immune data transmission
  • Wide-range 10-32 VDC power supply compatibility
  • High-accuracy pressure sensing with temperature compensation
  • Industrial-grade G1/4 threaded process connection
  • Compact, robust housing for demanding environmental conditions
  • Includes a 1-meter shielded cable with flying leads for quick installation

Applications

  • Hydraulic system pressure monitoring and control
  • Industrial process control and automation (PLC/SCADA integration)
  • Pump and compressor performance monitoring
  • Fluid power system testing and diagnostics
  • Remote tank level and pipeline pressure monitoring

Technical Specifications

Model NumberPR19C-RS-010
Pressure Range0 - 1 MPa
Output SignalRS485 (Modbus RTU)
Supply Voltage10 - 32 VDC
Process ConnectionG1/4 Thread
Cable Length1 m
Body Diameter30 mm
Body Length92 mm
Weight206 g

Frequently Asked Questions

What is the communication protocol for the RS485 output?

The RS485 interface on the PR19C-RS-010 uses the Modbus RTU protocol, a standard industrial communication standard. This allows for direct integration with PLCs, SCADA systems, and data loggers that support Modbus, enabling multi-drop network configurations over long distances.

What is the operating voltage range for this sensor?

The sensor operates from a wide 10 to 32 VDC power supply. This range accommodates common industrial DC voltage sources like 12V or 24V systems, providing flexibility in installation without requiring a precise, regulated voltage.

How do I mount and install this pressure sensor?

Installation is straightforward via its standard G1/4 female thread, designed for direct in-line mounting on pipelines or pressure ports. Ensure the thread is properly sealed. The included 1-meter cable provides flying leads for connecting power and the RS485 data lines to your control system.

Package Includes

  • 1 x Pro-Range PR19C-RS-010 Pressure Sensor
  • 1 x 1-meter pre-wired cable

Additional Information

Weight 0.206 kg
Dimensions 9.2 cm
