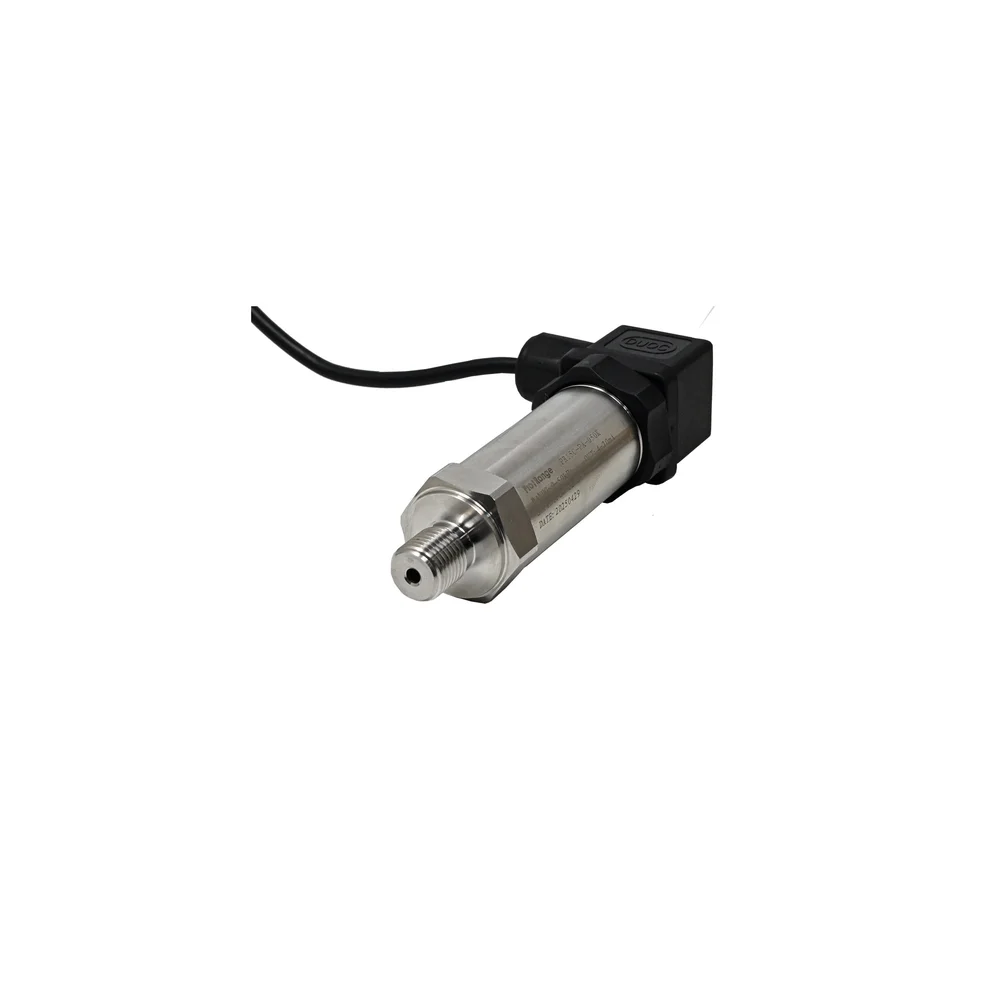

Pro-Range PR15C-PA-050K Pressure Sensor 0-50 kPa, 4-20mA Output, G1/4 Thread, 1m Cable

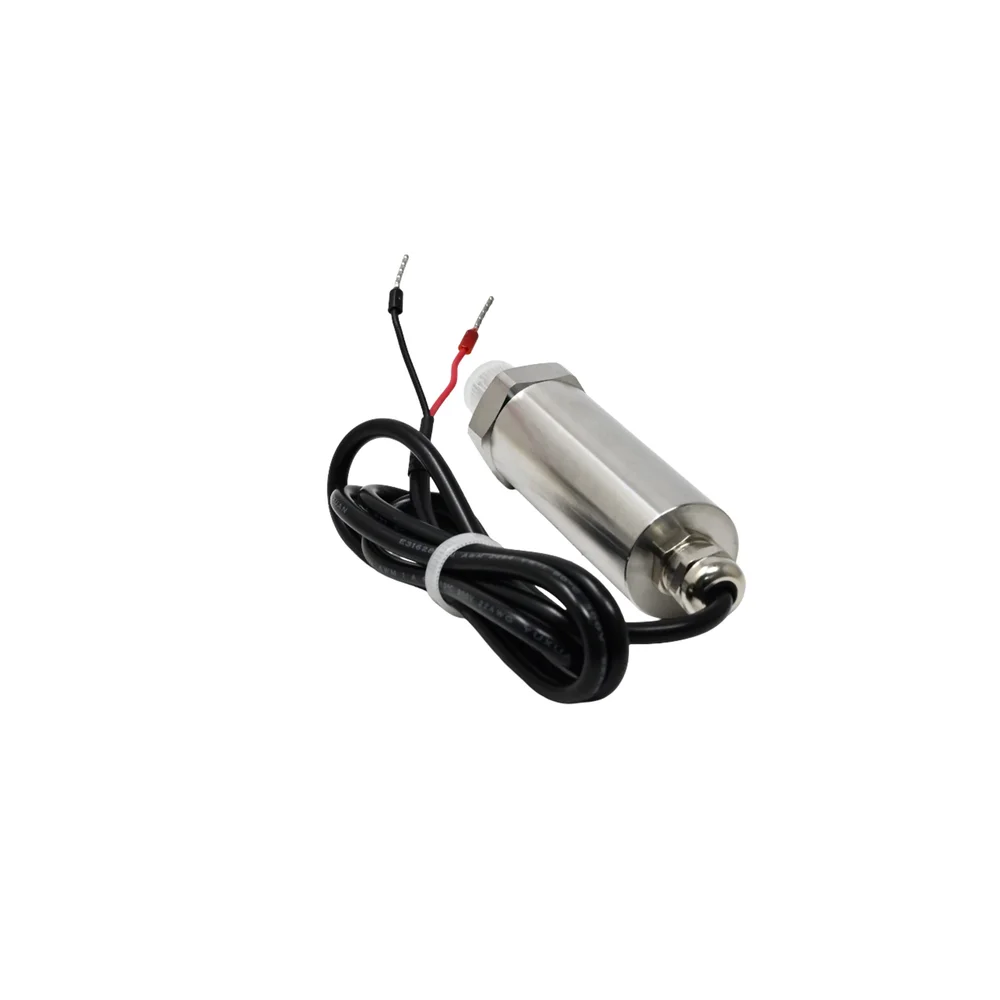

This is a two-wire loop-powered sensor. Connect the positive supply wire (10-32 VDC) to the sensor's positive terminal, and connect the sensor's negative terminal to your PLC or receiver's analog input. The same pair completes the loop, carrying both power and the 4-20mA signal. Ensure your power supply and receiver are compatible with a two-wire configuration.

Yes, the Pro-Range series typically supports customization. Parameters like pressure range (e.g., 0-25 MPa), output signal (RS485 Modbus or 0-10V), and thread size (G1/2, M20x1.5) can often be specified. Contact the supplier or manufacturer with your specific requirements for a tailored unit.

Yes, the stainless steel construction and sealed design make it suitable for compatible, non-corrosive liquids. Ensure the fluid media is compatible with 316 stainless steel. For aggressive chemicals or high-purity applications, verify material compatibility with the manufacturer.

While the exact specification should be confirmed via datasheet, sensors in this class typically offer an accuracy of ±0.5% FS or better. The piezoresistive sensing technology and robust construction provide good long-term signal stability, making it reliable for continuous industrial monitoring applications.
