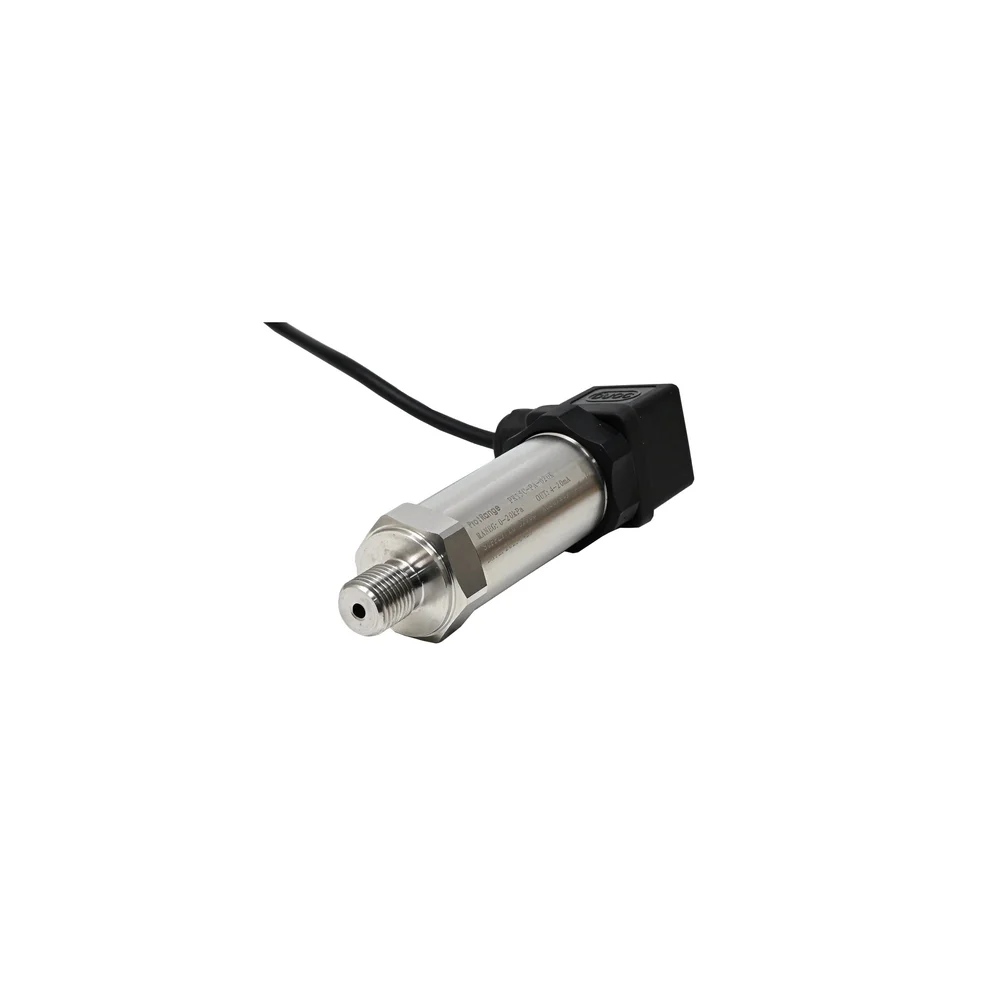

Pro-Range PR15C-PA-020K Pressure Sensor 0-20 kPa 4-20mA Output - G1/4 Thread w/ 1m Cable

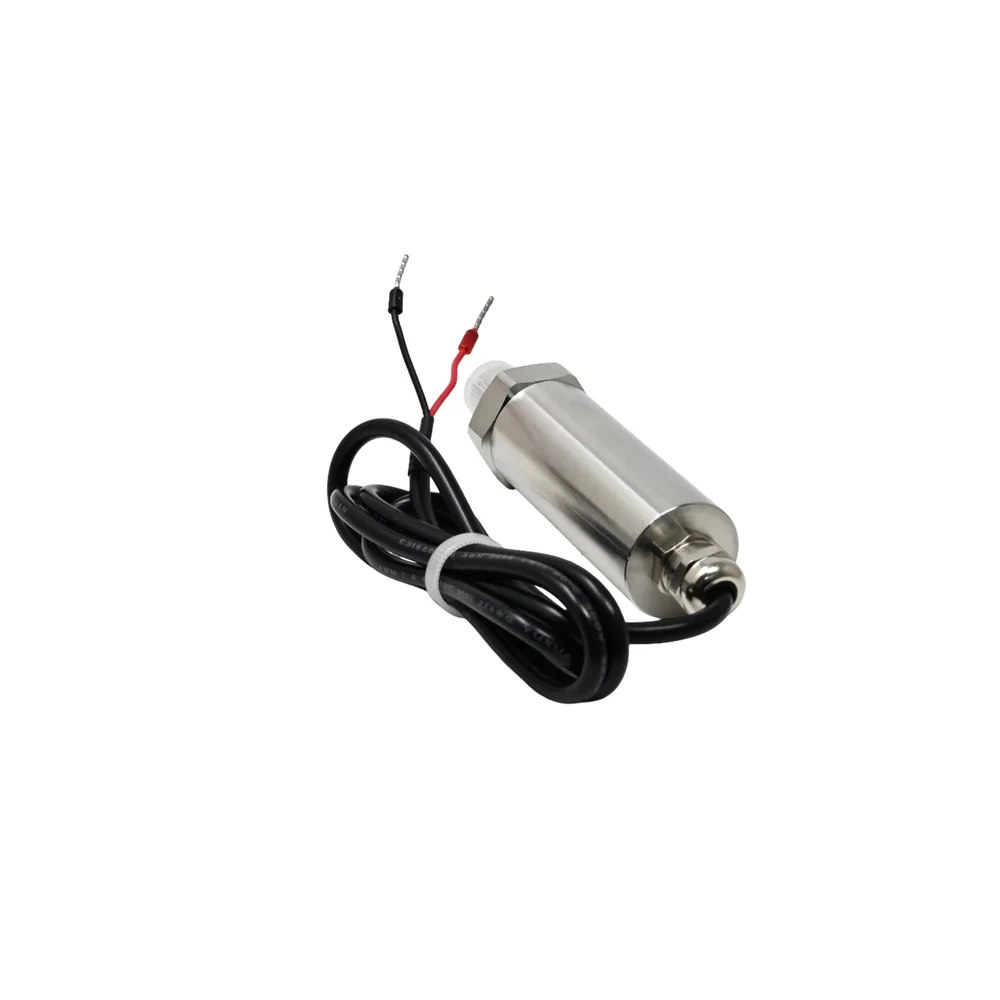

This is a standard 2-wire, loop-powered 4-20mA transmitter. Connect the positive supply voltage (10-32V DC) to the red wire of the integrated cable. Connect the black wire to the positive input of your PLC analog input module or current reader. The signal completes the loop back to the power supply negative. Ensure your readout device is configured for a 4-20mA current input.

Yes, the Pro-Range series sensors are often available with customization options. Parameters like pressure range (e.g., 0-25 MPa), output signal (RS485 Modbus, 0-5V, 0-10V), and thread size (G1/2, M20x1.5) can be specified. For custom orders, you typically need to contact the supplier or manufacturer directly with your specific requirements.

While its G1/4 thread is common in fluid systems, you must verify the sensor's wetted materials (typically stainless steel) are compatible with your specific media (e.g., water, oil, chemicals). The primary specification is for pressure measurement; ensure the media does not corrode the diaphragm or housing for reliable operation.

For precise accuracy figures (typically ±0.5% FS or better), refer to the official Pro-Range datasheet. Industrial-grade sensors like the PR15C series are designed for high stability and minimal drift over time, making them suitable for continuous process monitoring. Regular calibration checks are recommended for critical applications.
