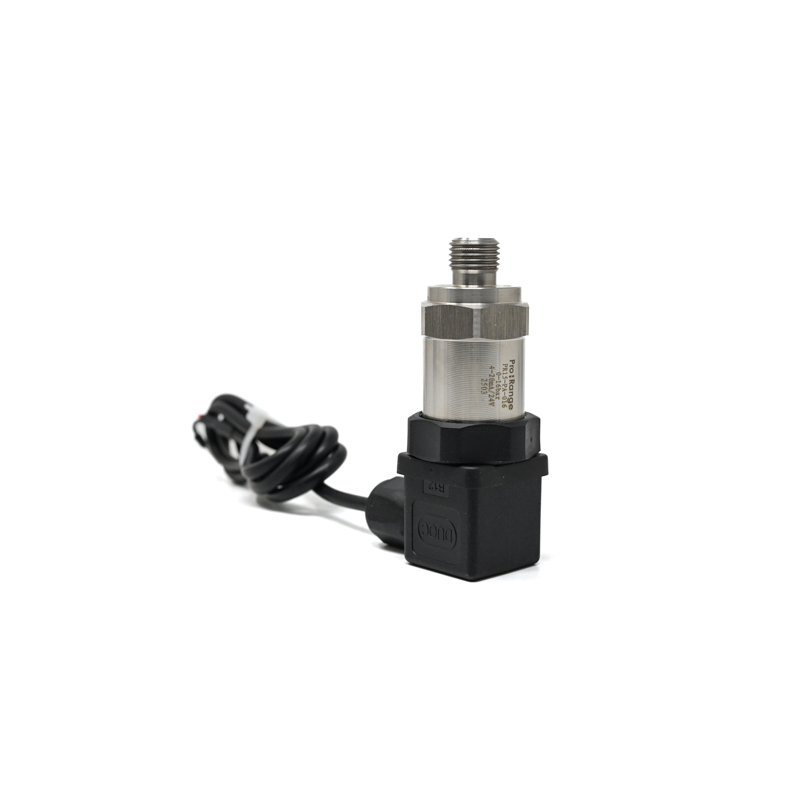

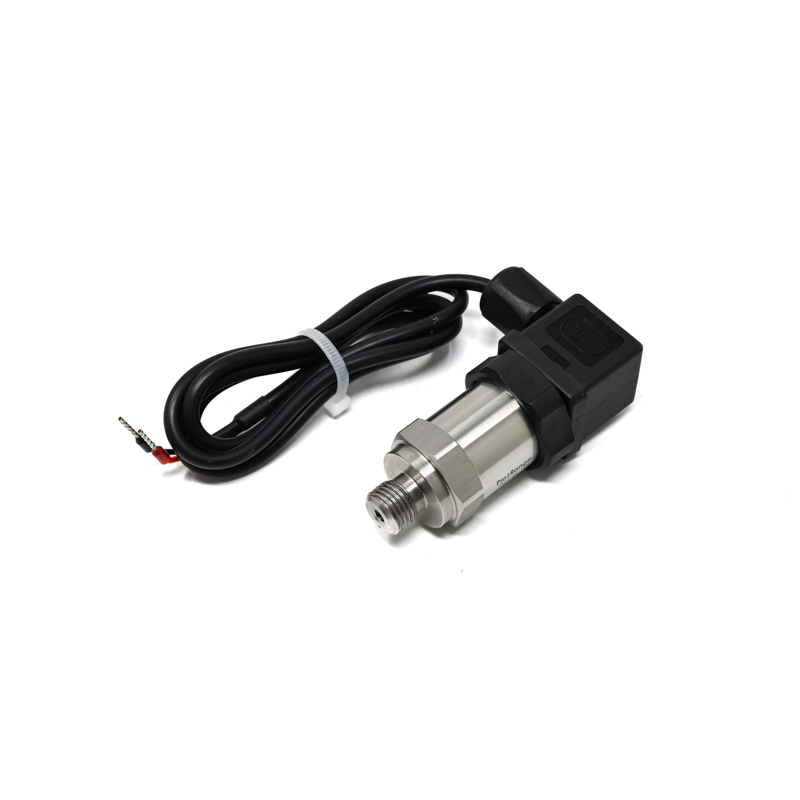

Pro-Range PR15-PA-010 0-1 MPa Pressure Transducer - 4-20mA Output, G1/4" Thread
The Pro-Range PR15-PA-010 is a 4-20mA output pressure transducer designed for industrial fluid control and automation systems. It provides a reliable analog signal for pressures up to 1 MPa (10 bar) and features a standard G1/4″ threaded interface for secure installation.
Features
- Measures gauge pressure from 0 to 1 MPa (0 to 10 bar) with high accuracy.
- Standard 4-20mA two-wire analog output for robust industrial signal transmission.
- G1/4″ male threaded port for direct installation into hydraulic or pneumatic lines.
- Compact, robust housing suitable for demanding industrial environments.
- Compatible with PLCs, DCS, and data acquisition systems accepting 4-20mA inputs.
Out of stock
The PR15-PA-010 pressure transducer utilizes an internal sensing element, typically a piezoresistive silicon strain gauge, to convert applied pressure into a precise electrical signal. The conditioned output is a standard 4-20mA two-wire current loop, known for its noise immunity and ability to transmit over long distances without significant signal degradation.
Constructed with a durable housing, this transducer is engineered for stable operation in industrial settings involving water, oil, air, and other compatible media. Its G1/4″ threaded interface ensures a leak-proof connection, making it a reliable component for process monitoring, pump control, and pressure regulation systems.
Additional Information
| Weight | 0.229 kg |
|---|---|
| Dimensions | 14 × 11 × 5 cm |
