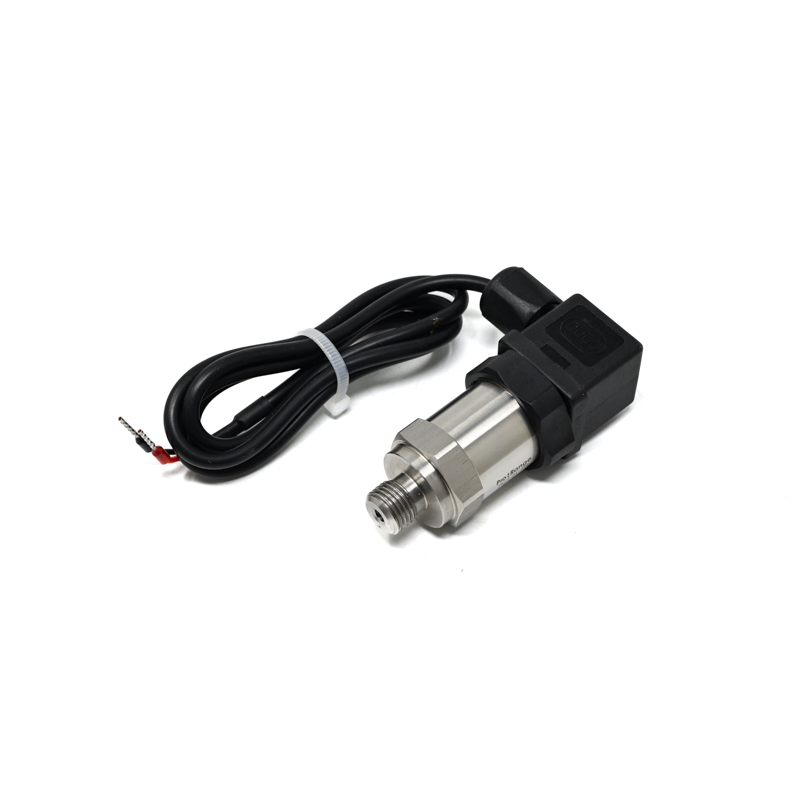

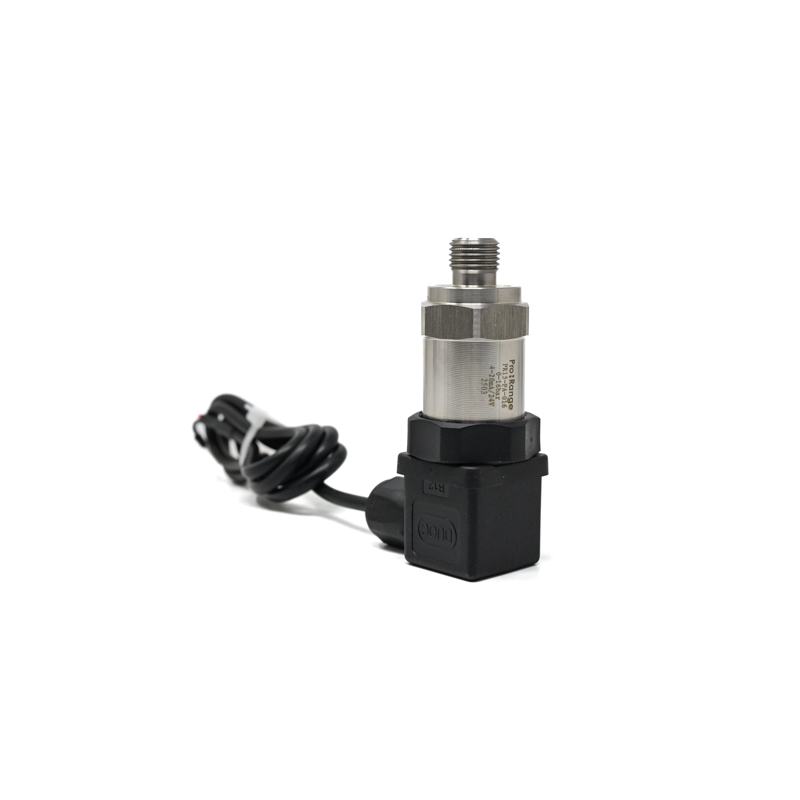

Pro-Range PR15-PA-005 Pressure Transducer 0-0.5MPa 4-20mA - G1/4" Thread
The Pro-Range PR15-PA-005 is a 4-20mA analog output pressure transducer designed for precise measurement of pressures up to 0.5 MPa. Featuring a G1/4″ threaded interface, it is engineered for direct integration into industrial fluid control systems, PLCs, and process automation panels.
Features
- 0 to 0.5 MPa (0 to 5 bar) pressure measurement range.
- Standard 4-20mA two-wire analog output for robust industrial signal transmission.
- G1/4″ male threaded process connection for secure, leak-resistant installation.
- Compact, durable housing suitable for industrial automation and fluid control environments.
- High accuracy and long-term stability for reliable process monitoring.
Out of stock
The PR15-PA-005 pressure transducer utilizes a high-quality sensing element, typically a piezoresistive or thin-film strain gauge, to convert applied pressure into a precise electrical signal. Its 4-20mA current loop output provides excellent noise immunity over long cable runs, making it ideal for integration with PLCs, SCADA systems, and data acquisition modules in industrial settings.
Constructed with a robust housing and a G1/4″ threaded port, the sensor is designed for direct mounting into hydraulic or pneumatic lines. It offers reliable performance for monitoring low-pressure systems in applications such as pump control, tank level indication, and process automation, where consistent and accurate pressure data is critical.
Additional Information
| Weight | 0.229 kg |
|---|---|
| Dimensions | 14 × 11 × 5 cm |
